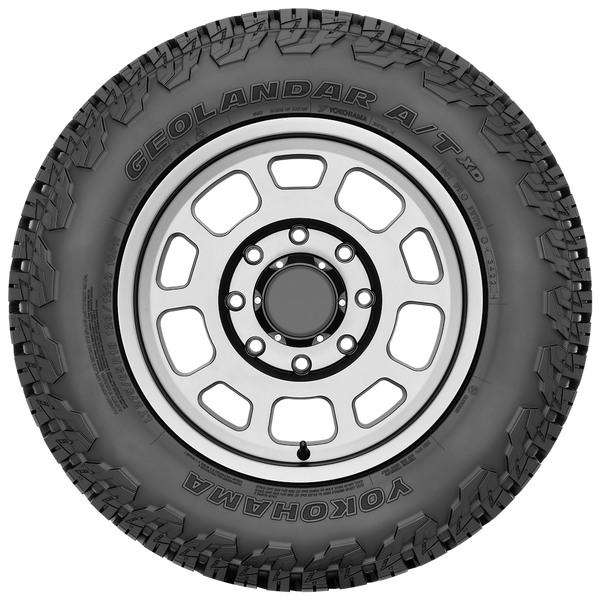

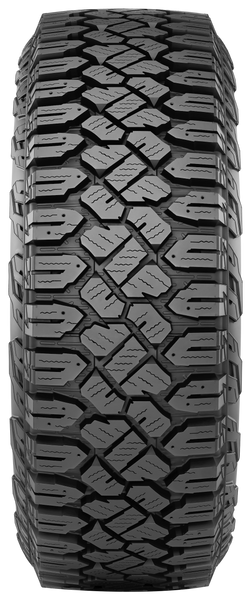

Yokohama Geolandar A/T XD Tire (MPN: 110117125)

Durable all-terrain tire for year-round performance and reliability.

The Yokohama Geolandar A/T XD is a commercial-grade all-terrain tire designed for full-size pickup trucks and commercial vans. Engineered with GEO-SHIELD technology and sidewall armor, this tire offers exceptional protection against impacts and punctures, ensuring durability on both on-road and off-road surfaces. Its aggressive tread design features hundreds of wavy sips and an optimized void-to-lug ratio, providing powerful traction in all weather conditions, including extreme winter scenarios.

This tire is built with a 3-ply sidewall and a full nylon cap, which enhances its strength and reliability. The Geolandar A/T XD carries the Three Peak Mountain Snowflake symbol, indicating its capability to perform in severe winter conditions. Additionally, the optimized compound includes a high level of natural rubber, contributing to long tread life and resistance to cuts and chips.

With a maximum load rating of 3748 pounds for single tire use and a speed rating of 99 MPH, this tire is suitable for a variety of applications. It fits wheels ranging from 8.5 to 9.5 inches wide and features a non-directional tread design for versatile performance. The Yokohama Geolandar A/T XD is DOT approved, ensuring compliance with safety standards for street use.

Features

• Creates A Bold New Look And Provides Protection From Lateral Impacts
• 3-Ply Sidewall, Full Nylon Cap, And High Turn-Up Carcass Assure Merciless Traction And Reliable Protection
• Carries The Three Peak Mountain Snowflake Symbol
• Aggressive Tread Design: Hundreds Of Wavy Sips Combined With An Optimized Void To Lug Ratio Provide Powerful All-Weather Traction
• Add Optional Studs For Confident Winter Traction
• Built To Provide Long Tread Life Without Compromising All-Weather Performance
• Optimized Compound Has A High Level Of Natural Rubber To Provide Long Tread Life And Enhance Cut And Chip Resistance
• Lateral Protrusions In The Void Area Protect Against Stone Drilling, Keep The Grooves Clear And Prevent Block Tearing

Specifications

• Manufacturer: Yokohama
• Manufacturer Part Number: 110117125
• Size Metric: LT-275-65-20
• Tire Type: LT
• Section Width Metric Tire: 275
• Aspect Ratio Metric Tire: 65
• Size Non Metric: LT-34-11-20
• Tire Diameter Non Metric Tire: 34
• Section Width Non Metric Tire: 11
• Wheel Diameter: 20
• Construction: Radial
• Tire Type Description: Passenger Car
• Tire Segment: Touring All Season
• Load Range: E = 10 Ply Rating
• Max Load Rating (Single Rear Wheel Use): 3748
• Speed Rating: Q
• Size Metric Display Size: LT 275 65 20
• Size Non Metric Display Size: LT 34 11 20
• Construction Material: Nylon Belted
• Compound: Not Applicable
• Studs: Not Applicable
• Sidewall Design: Black Sidewall
• Minimum Rim Width: 8.5
• Maximum Rim Width: 9.5
• Service Rating: 126/ 123Q
• Max Load Rating (Dual Rear Wheel Use): 3417
• Speed Rating MPH: 99-MPH
• Sidewall Construction: 3 Ply
• Directional Tread Design: Non Directional
• DOT Compliant: DOT Approved
• Overall Section Width: 11.10
• Tread Depth: 19/32
• Max Inflation Pressure: 80 PSI
• Overall Diameter: 34.1
• Runflat: No
• Uses Inner Tube: Tubeless
• Tread Wear Warranty: No Warranty
• Road Hazard Warranty: No Warranty
• Material Warranty: First 2/32 Inch Of Tread Wear
• Ride Quality Warranty: No Warranty
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 2014-2015 GMC Sierra 2500 HD
• 2024-2026 GMC Sierra 2500 HD
