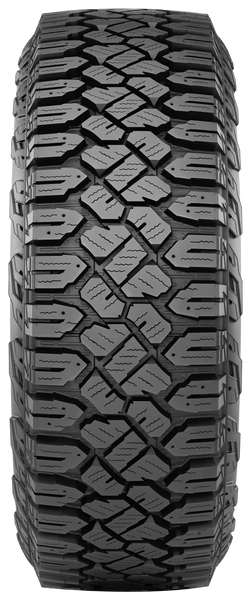

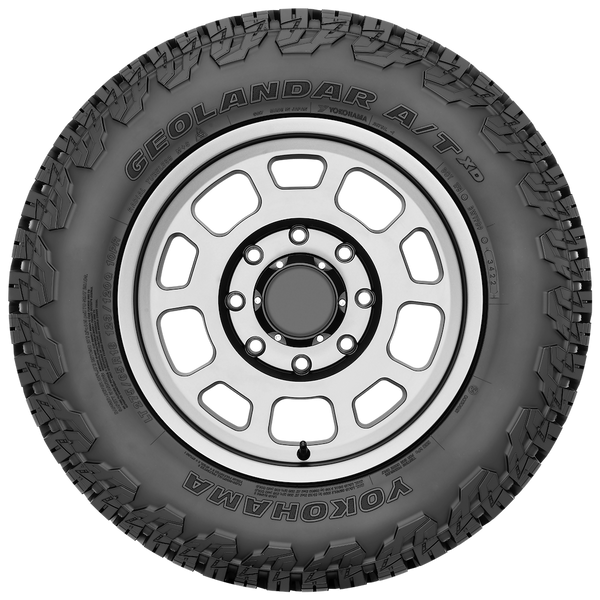

Yokohama GEOLANDAR A/T XD Tire (MPN: 110117111)

Durable all-terrain tire for year-round performance and reliability.

The Yokohama GEOLANDAR A/T XD is a commercial-grade all-terrain tire designed for full-size pickup trucks and commercial vans. Engineered with GEO-SHIELD technology and sidewall armor, this tire offers exceptional protection against impacts and punctures, ensuring durability on both on-road and off-road surfaces. Its aggressive tread design features hundreds of wavy sips and an optimized void-to-lug ratio, providing powerful all-weather traction and stability in various conditions.

This tire is built to perform in extreme winter conditions while maintaining all-season capabilities. The 3-ply sidewall construction and full nylon cap enhance traction and reliability, making it suitable for heavy-duty applications. Additionally, the GEOLANDAR A/T XD carries the Three Peak Mountain Snowflake symbol, indicating its ability to handle severe winter weather.

With a maximum load rating of 3197 pounds for single tire use and a speed rating of 99 MPH, this tire is designed to meet the demands of commercial and recreational use. The optimized compound includes a high level of natural rubber, contributing to long tread life and resistance to cuts and chips. The non-directional tread design allows for versatile installation on various wheel widths, making it a practical choice for a wide range of vehicles.

Features

• Creates A Bold New Look And Provides Protection From Lateral Impacts
• 3-Ply Sidewall, Full Nylon Cap, And High Turn-Up Carcass Assure Merciless Traction And Reliable Protection
• Carries The Three Peak Mountain Snowflake Symbol
• Aggressive Tread Design: Hundreds Of Wavy Sips Combined With An Optimized Void To Lug Ratio Provide Powerful All-Weather Traction
• Add Optional Studs For Confident Winter Traction
• Built To Provide Long Tread Life Without Compromising All-Weather Performance
• Optimized Compound Has A High Level Of Natural Rubber To Provide Long Tread Life And Enhance Cut And Chip Resistance
• Lateral Protrusions In The Void Area Protect Against Stone Drilling, Keep The Grooves Clear And Prevent Block Tearing

Specifications

• Manufacturer: Yokohama
• Manufacturer Part Number: 110117111
• Size Metric: LT-285-70-17
• Tire Type: LT
• Section Width Metric Tire: 285
• Aspect Ratio Metric Tire: 70
• Size Non Metric: LT-32.50-11-17
• Tire Diameter Non Metric Tire: 32.50
• Section Width Non Metric Tire: 11
• Wheel Diameter: 17
• Construction: Radial
• Tire Type Description: Passenger Car
• Tire Segment: Touring All Season
• Load Range: E = 10 Ply Rating
• Max Load Rating (Single Rear Wheel Use): 3197
• Speed Rating: Q
• Size Metric Display Size: LT 285 70 17
• Size Non Metric Display Size: LT 32.50 11 17
• Construction Material: Nylon Belted
• Compound: Not Applicable
• Studs: Not Applicable
• Sidewall Design: Black Sidewall
• Minimum Rim Width: 7.5
• Maximum Rim Width: 9.5
• Service Rating: 121/ 118Q
• Max Load Rating (Dual Rear Wheel Use): 2910
• Speed Rating MPH: 99-MPH
• Sidewall Construction: 3 Ply
• Directional Tread Design: Non Directional
• DOT Compliant: DOT Approved
• Overall Section Width: 11.70
• Tread Depth: 19/32
• Max Inflation Pressure: 80 PSI
• Overall Diameter: 32.8
• Runflat: No
• Uses Inner Tube: Tubeless
• Tread Wear Warranty: No Warranty
• Road Hazard Warranty: No Warranty
• Material Warranty: First 2/32 Inch Of Tread Wear
• Ride Quality Warranty: No Warranty
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1993-1993 Chevrolet C2500
• 2023-2026 Chevrolet Colorado
• 2005-2005 Dodge Ram 2500
• 2007-2007 Dodge Ram 2500
• 2009-2010 Dodge Ram 2500
• 2023-2024 GMC Canyon
• 2026-2026 GMC Canyon
• 2008-2010 GMC Sierra 2500 HD
• 2020-2025 Jeep Gladiator JT
• 2018-2025 Jeep Wrangler JL
• 2016-2026 Ram 2500
