Reliable power conversion for diverse applications with advanced safety features.

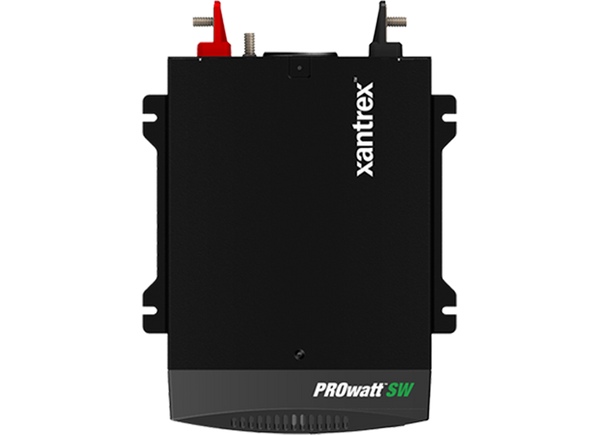

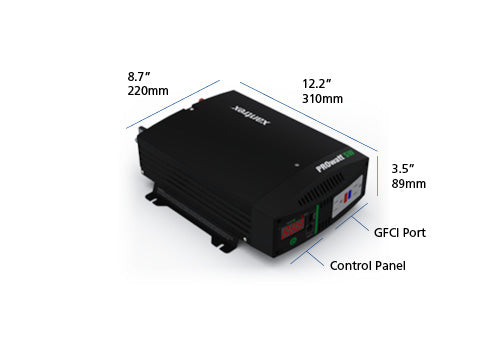

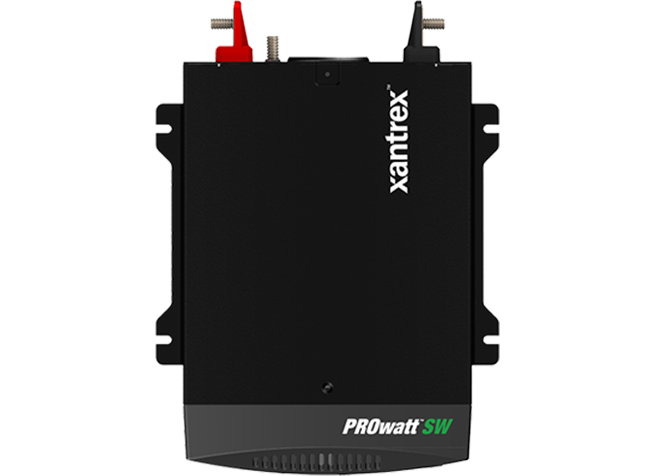

The Xantrex PROwatt Power Inverter efficiently converts 12 Volt DC to 230 Volt AC, delivering a continuous output of 540 Watts and a peak output of 1200 Watts. Designed for versatility, it is suitable for commercial trucks, RVs, and marine applications, providing true sine wave output that supports a wide range of electrical loads, including sensitive appliances and power tools. The unit features a compact design with dimensions of 3.5 inches in height, 8.7 inches in width, and 12.2 inches in length, making it easy to install in various settings.

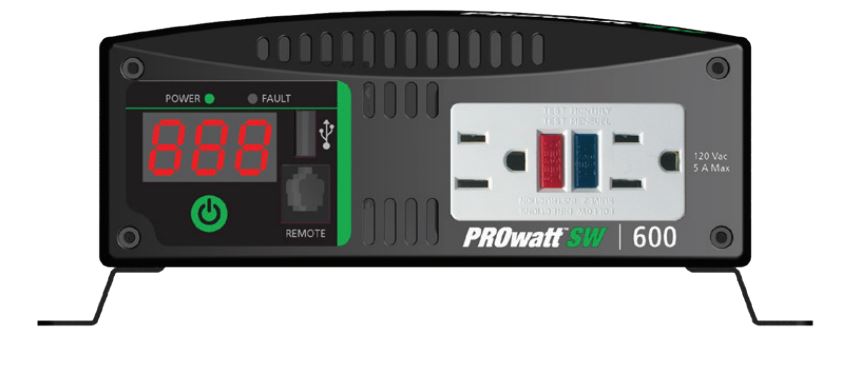

Equipped with dual GFCI outlets, the PROwatt ensures safe operation with built-in protection mechanisms such as low voltage shutdown, overload shutdown, and over-temperature shutdown. The inverter also includes a built-in digital display for monitoring DC volts and output power, as well as a USB port for added convenience. The remote on/off capability enhances usability, allowing users to control the inverter from a distance.
With an efficiency rating of 90 percent, the Xantrex PROwatt Power Inverter maximizes energy use while minimizing waste. Its heavy-duty terminals facilitate reliable battery connections, ensuring consistent performance. This inverter is a robust solution for those needing reliable AC power in off-grid or mobile environments.
Features
- Built-In Digital Display For DC Volts And Output Power
- Built-In USB Port
- Heavy Duty Terminals For Trouble-Free Battery Connection
- Available ON/OFF Remote Switch
- Low Voltage Shutdown. Low Voltage Alarm
- Over Voltage Protection. Overload Shutdown
- Over Temperature Shutdown
Specifications
- Manufacturer: Xantrex
- Manufacturer Part Number: 806-1206
- Input Voltage: 12 Volt DC
- Output Voltage: 240 Volt AC
- Continuous Output Power (W): 540 Watt
- Peak Output Power (W): 1200 Watt
- Efficiency: 90 Percent
- Number Of AC Outlets: 2
- Length (IN): 12.2 Inch
- Width (IN): 8.7 Inch
- Height (IN): 3-1/2 Inch
- Remote On/Off Capable: Yes
- With USB Port: Yes
- With Volt/Watt Meter: Yes
- With Short Circuit: Yes
- With Reverse Battery Protection: No
- With Thermal Protection: No
- With Battery Cables: No
- With Built-In Charger: No
- With Fuse: No
Technical Documents
- 975-0529-01-01_Rev-CPROWatt-SW-Inverter-NA.pdf
- Prowatt_SW_Warranty-Terms-n-Conditions_NA-1.pdf
- 20210129_PROwattSW_Datasheet.pdf
