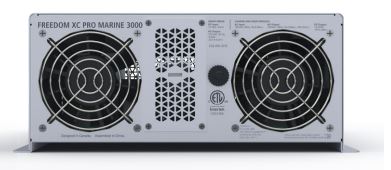

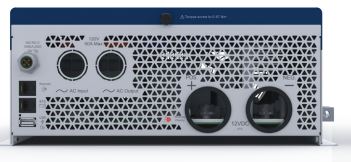

Xantrex Freedom XC Pro Marine Inverter Charger (MPN: 818-3015)

Versatile AC power solution for marine applications with advanced features.

The Xantrex Freedom XC Pro Marine inverter/charger is designed for 12 volt batteries, providing a robust solution for marine power needs. With a continuous output of 3000 watts and a surge capacity of 6000 watts, this unit delivers true sine wave output, ensuring compatibility with sensitive electronics and motor loads. Its compact design allows for easy installation, while the built-in 50 amp AC transfer relay automatically switches between inverter and shore power, enhancing convenience and reliability.

Operating efficiently across a wide temperature range of 4 to 140 degrees Fahrenheit, the Freedom XC Pro Marine is equipped with a 150 amp output current and boasts an efficiency rating of 91 percent. The inverter features programmable AC under-voltage shutdown, which is particularly useful for maintaining performance under weak shore power conditions. Additionally, the ignition control feature minimizes battery drain by turning the inverter off when the ignition key is turned off.

For enhanced monitoring and control, the inverter supports Bluetooth connectivity through an optional remote panel, allowing users to configure and monitor system performance easily. The seamless integration with third-party monitoring systems via the Micro-C NMEA 2000 connector further enhances its versatility, making it suitable for various marine applications. This inverter/charger is ETL listed to CSA 107.1, UL458, and ABYC E11/A-31 standards, ensuring compliance with industry safety regulations.

Features

• A True Sine Wave Inverter With A Built-In Lithium-Ion Battery Charger And Transfer Switch In A Compact, Lightweight Footprint
• Configure And Monitor System Performance Via Bluetooth App Available On The Optional Bluetooth Remote Panel
• Seamless Integration With Micro-C NMEA 2000 Connector
• Extended Surge Rating: Surges To 2X Continuous Power For 5 Seconds For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
• Ignition Control: Feature To Turn Inverter On/Off Via A 12 VDC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
• Wide 10 To 18 Volt DC Input Range: Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
• Programmable AC Under Voltage (85 To 110 VAC) Shutdown: Feature Ideal To Operate Under Weak Shore Power Or Generator Input
• Built In 50 Ampere AC Transfer Relay: Senses When Outside AC Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 818-3015
• Compatibility: 12 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 3000 Watt
• Input Voltage: Inverter: 10.5 To 15.5 Volt DC/ Charger: 90 To 130 Volt AC
• Peak Power Output: 6000 Watt
• Ampere Rating: 150 Amp
• Efficiency: 91 Percent
• Operating Temperature: 4 To 140 Degree Fahrenheit
• Standards: ETL Listed To CSA 107.1/ UL458/ ABYC E11/ A-31

Technical Documents

• Freedom_X_GFCI_Device_Installation_Guide_(975-0788-01-01_Rev-A)_ENG.pdf
• 975-0799-01-01_Rev-D(Freedom_XC_PRO_Owners_Guide)_ENG.pdf
• 976-0367-01-01_Rev-E(Freedom_X_Remote_Panel_User_Guide)_ENG.pdf
• Freedom_XC_Warranty_Terms_n_Conditions_NA.pdf
• 976-0422-01-01_Rev-A(NMEA2000_PGN_List_for_FXCC)_ENG.pdf
• 976-0422-01-01_Rev-A(NMEA2000_PGN_List_for_FXCC)_ENG.pdf
• FXC_PRO_Remote_compatibility_Memo.pdf
• 20210114_FREEDOMXCPROMARINE_Datasheet.pdf
• Freedom_X_GFCI_Device_Installation_Guide_(975-0788-01-01_Rev-A)_ENG.pdf
