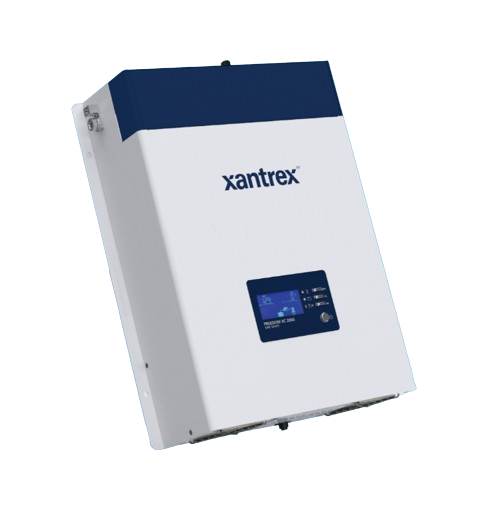

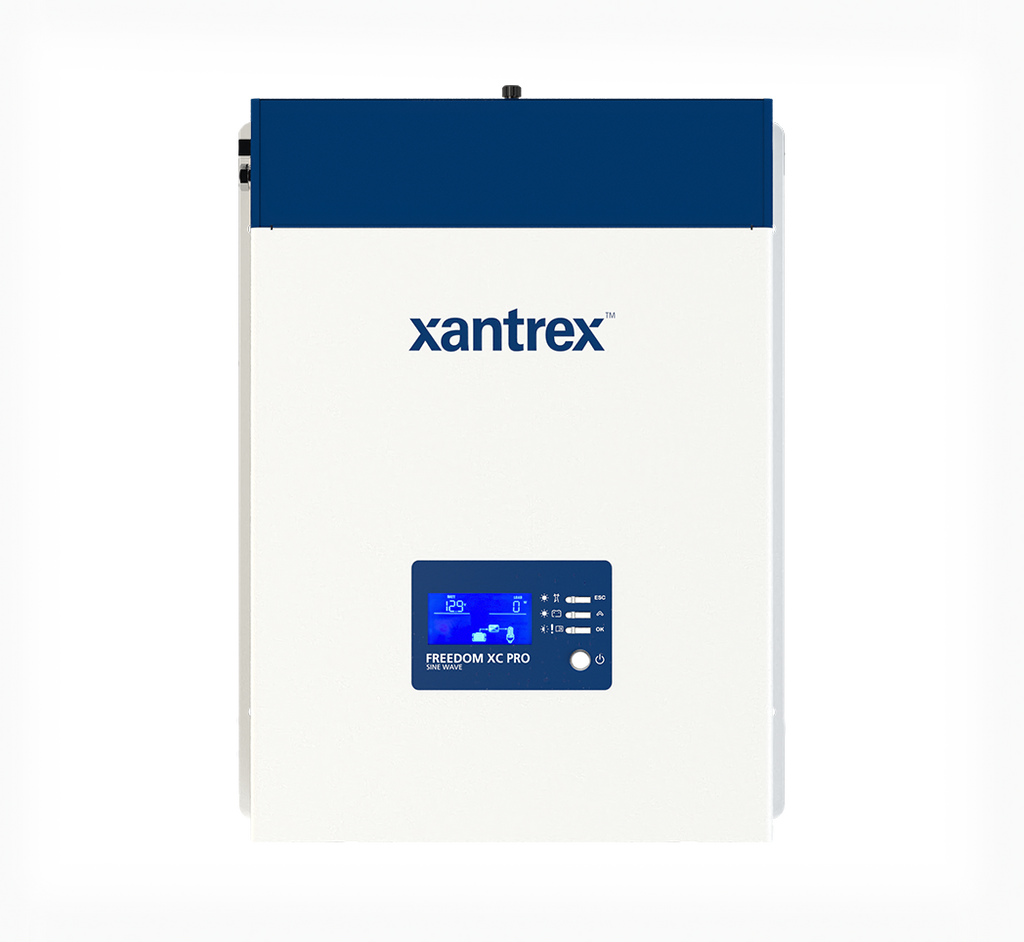

Xantrex Freedom XC Pro Inverter Charger (MPN: 818-2010)

High-performance inverter and battery charger for 12 volt systems.

The Xantrex Freedom XC Pro is a versatile inverter and battery charger designed for 12 volt battery systems. It delivers a continuous output of 2000 watts with a peak surge capability of 4000 watts, making it suitable for powering sensitive electronics and motor loads. The unit operates efficiently across a wide temperature range of 4 to 140 degrees Fahrenheit, ensuring reliable performance in various environmental conditions.

This inverter features true sine wave output, which is essential for the safe operation of sensitive devices. It includes advanced functionalities such as programmable AC under-voltage shutdown, overload alarms, and a built-in 30 amp AC transfer relay that automatically switches to external power when available. The quick connect terminals facilitate easy installation, while the onboard display provides real-time monitoring of AC and battery current.

With an efficiency rating of 92 percent, the Freedom XC Pro minimizes energy loss during operation. Its ignition control feature allows for automatic shutdown when the vehicle's ignition is turned off, further conserving battery life. This product is ETL listed and complies with multiple safety standards, ensuring it meets rigorous quality and safety requirements.

Features

• Extended Surge Rating: Surges To 2X Continuous Power For 2 Seconds For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
• Ignition Control To Turn Inverter On Or Off Via A 12 Volt DC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
• Wide 10 To 18 Volt DC Input Rang Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
• Programmable AC Under-Voltage (85 To 110 Volt AC) Shutdown Is Ideal To Operate Under Weak Shore Power Or Generator Input
• Built-In 30 Ampere AC Transfer Relay Senses When Outside AC Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power
• View AC And Battery Current, Percent Status Bar For Inverter Output On The Onboard Display
• Hardwire Or Plug Directly Into The Optional 20 Ampere GFCI Receptacle

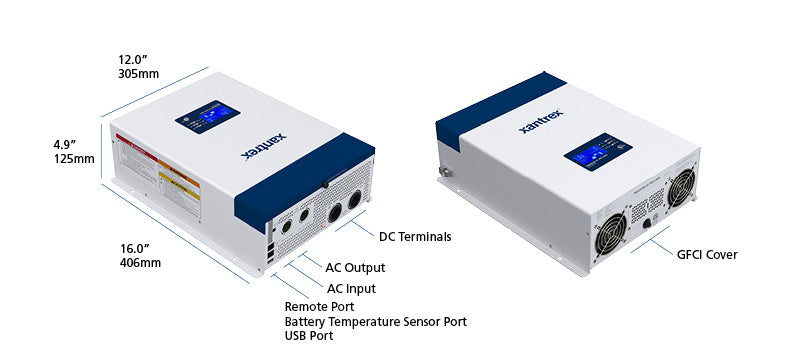

• Easy Access AC And DC Wiring Compartment For Quick Installation

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 818-2010
• Compatibility: 12 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 2000 Watt
• Input Voltage: Inverter: 10.5 To 15.5 Volt DC/ Charger: 90 To 130 Volt AC
• Peak Power Output: 4000 Watt
• Ampere Rating: 100 Amp
• Efficiency: 92 Percent
• Operating Temperature: 4 To 140 Degree Fahrenheit
• Standards: ETL listed To CSA 107.1/ UL458/ ABYC E11/ A-31/ A-32

Technical Documents

• Freedom_XC_Warranty-Terms-n-Conditions_NA-2.pdf
