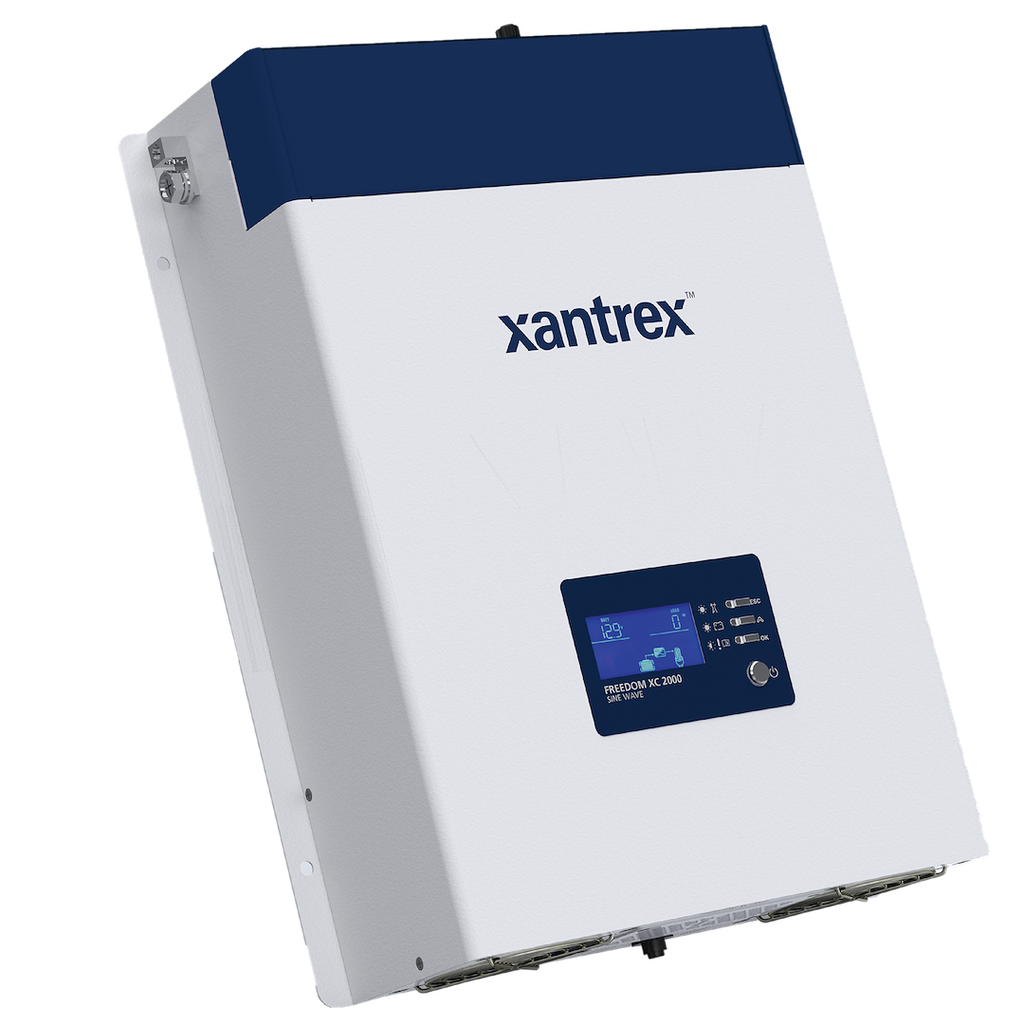

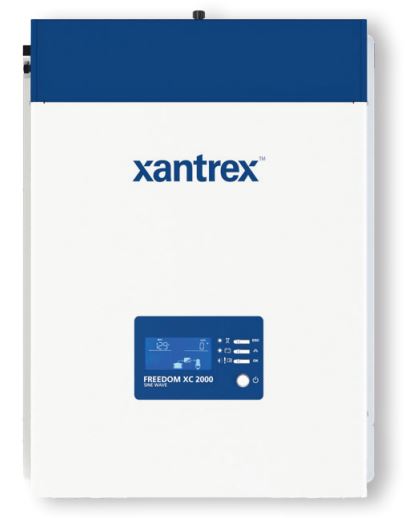

Xantrex Freedom XC Power Inverter Charger (MPN: 817-2080-12)

High-performance inverter charger for 12 volt battery systems.

The Xantrex Freedom XC is a versatile power inverter and battery charger designed for 12 volt battery systems. It delivers a continuous output of 2000 watts and can handle surges up to 4000 watts, making it suitable for powering sensitive electronics and motor loads. With a compact design and lightweight construction, it is engineered for easy installation and operation in various environments, functioning effectively in temperatures ranging from -4 to 140 degrees Fahrenheit.

This inverter features true sine wave output, ensuring compatibility with a wide range of devices, including refrigerators and microwaves. The built-in lithium-ion battery charger and transfer switch enhance its functionality, allowing seamless transitions between inverter and shore power. Additionally, the Freedom XC includes a programmable AC under voltage shutdown feature, which is beneficial for operating under weak power conditions.

For added convenience, the inverter can be monitored and configured via an optional Bluetooth remote panel, enabling users to track system performance from a distance. The ignition control feature minimizes battery drain by automatically turning the inverter off when the vehicle's ignition is switched off. With its robust design and advanced features, the Xantrex Freedom XC is a reliable choice for those seeking efficient power management solutions.

Features

• A True Sine Wave Inverter With A Built-In Lithium-Ion Battery Charger And Transfer Switch In A Compact, Lightweight Footprint
• Configure And Monitor System Performance Via Bluetooth App Available On The Optional Bluetooth Remote Panel
• Extended Surge Rating: Surges To 2X Continuous Power For At Least 2 Seconds For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
• Ignition Control: Feature To Turn Inverter On/Off Via A 12 VDC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
• Wide 10 To 17 Volt DC Input Range: Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
• Programmable AC Under Voltage (170 To 220 Volt) Shutdown: Feature Ideal To Operate Under Weak Shore Power Or Generator Input
• Built In 30 Ampere AC Transfer Relay: Senses When Outside AC Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 817-2080-12
• Compatibility: 12 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 2000 Watt
• Input Voltage: Inverter: 10.5 To 15.5 Volt DC/ Charger: 90 To 130 Volt AC
• Peak Power Output: 4000 Watt
• Ampere Rating: 80 Amp
• Efficiency: 91 Percent
• Operating Temperature: -4 To 140 Degree Fahrenheit
• Standards: CE Certified/ ROHS Compliant

Technical Documents

• Freedom-XC-Inverter-Charger-230V-Owners-Guide-975-0821-01-01_Rev-C_ENG.pdf
• Freedom_XC_Warranty-Terms-n-Conditions_NA-3.pdf
• 20200724_FREEDOMXC2000_230V_Datasheet.pdf
