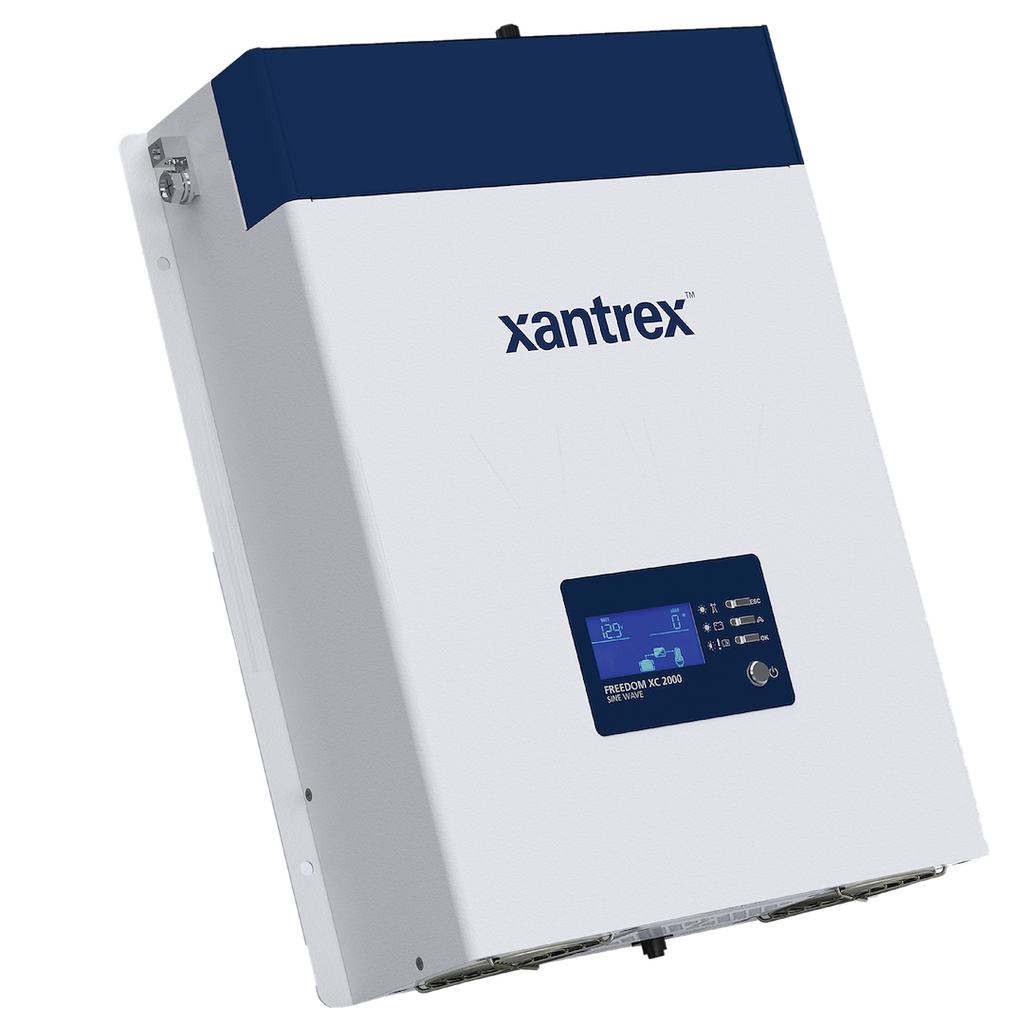

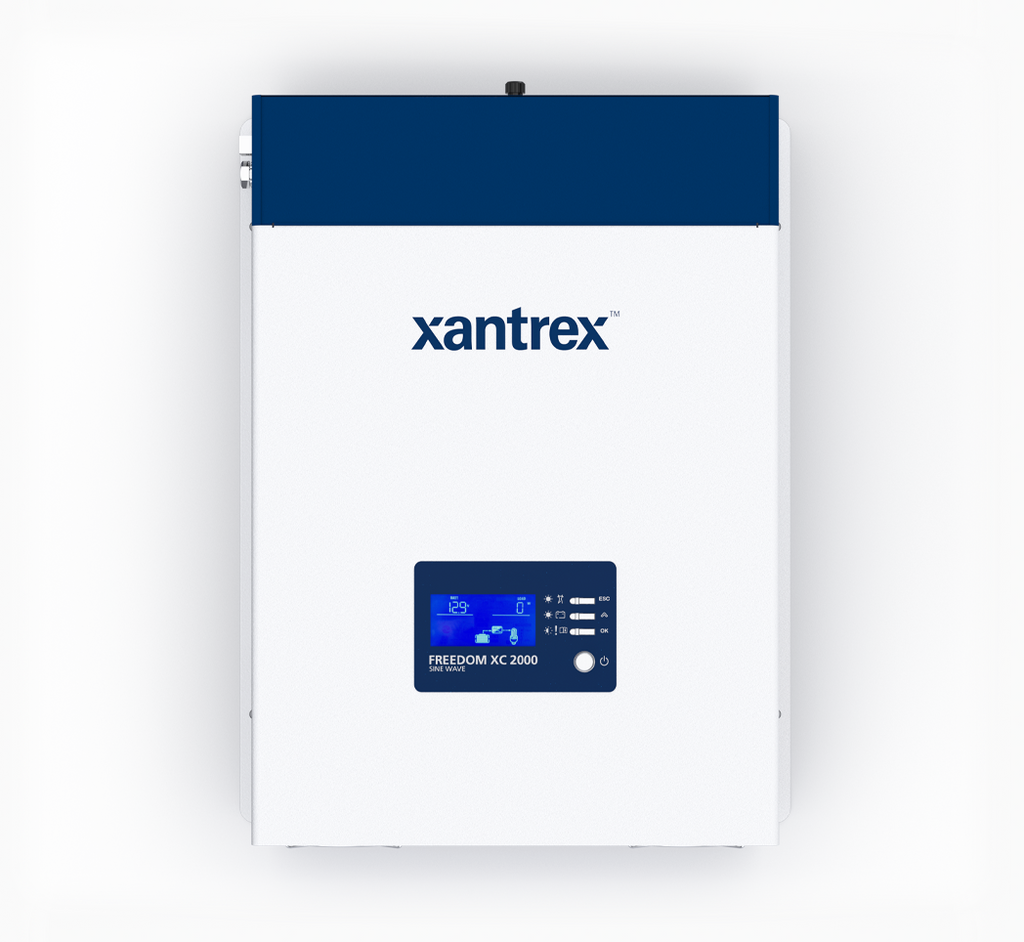

Xantrex Freedom XC Power Inverter Charger (MPN: 817-2080)

High-performance inverter and charger for 12 volt battery systems.

The Xantrex Freedom XC is a versatile power inverter and battery charger designed for 12 volt battery systems. It delivers a continuous output of 2000 watts and can handle surges up to 4000 watts, making it suitable for starting demanding loads such as refrigerators and microwaves. With a wide operating temperature range from -4 to 140 degrees Fahrenheit, this unit is engineered for reliable performance in various environmental conditions.

Featuring true sine wave output, the Freedom XC ensures compatibility with sensitive electronics and motor loads. Its ignition control feature allows for automatic operation based on a 12 volt DC signal, minimizing battery drain when not in use. The inverter also includes a built-in 30 ampere AC transfer relay that automatically switches the load to an external power source when available, enhancing convenience and efficiency.

Installation is simplified with quick connect terminals for AC input and output, as well as easy access to the AC and DC wiring compartment. The onboard display provides real-time information on AC and battery current, along with a status bar for inverter output. The Freedom XC is ETL listed to CSA 107.1, UL458, and ABYC E11 standards, ensuring compliance with safety regulations.

Features

• Extended Surge Rating: Surges To 2X Continuous Power For 2 Seconds For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
• Ignition Control To Turn Inverter On Or Off Via A 12 Volt DC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
• Wide 10 To 18 Volt DC Input Rang Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
• Programmable AC Under-Voltage (85 To 110 Volt AC) Shutdown Is Ideal To Operate Under Weak Shore Power Or Generator Input
• Built-In 30 Ampere AC Transfer Relay Senses When Outside AC Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power
• View AC And Battery Current, Percent Status Bar For Inverter Output On The Onboard Display
• Hardwire Or Plug Directly Into The Optional 20 Ampere GFCI Receptacle

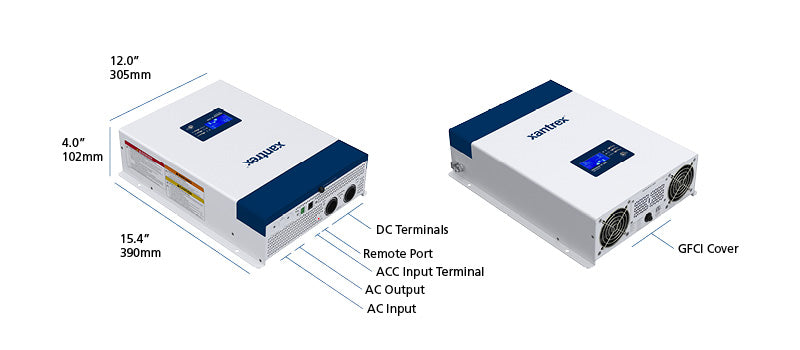

• Easy Access AC And DC Wiring Compartment For Quick Installation

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 817-2080
• Compatibility: 12 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 2000 Watt
• Input Voltage: Inverter: 10.5 To 15.5 Volt DC/ Charger: 90 To 130 Volt AC
• Peak Power Output: 4000 Watt
• Ampere Rating: 80 Amp
• Efficiency: 91 Percent
• Operating Temperature: -4 To 140 Degree Fahrenheit
• Standards: ETL Listed To CSA 107.1/ UL458/ ABYC E11/ A-31
