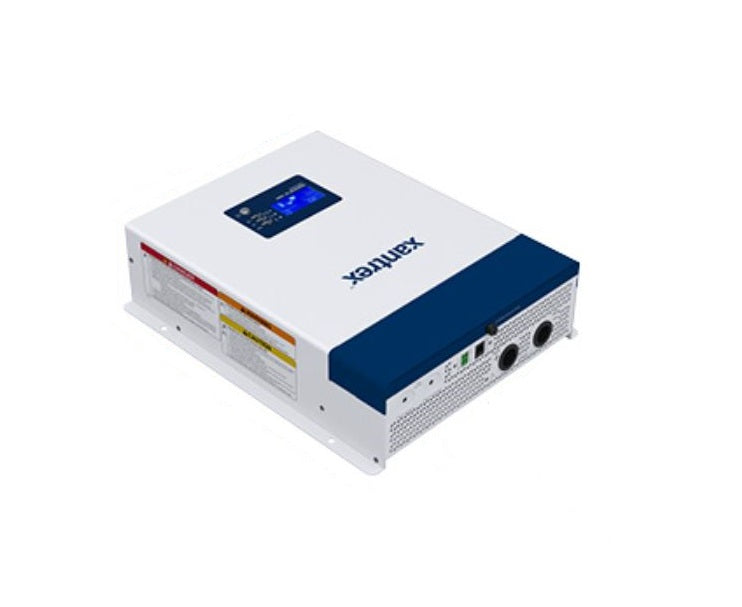

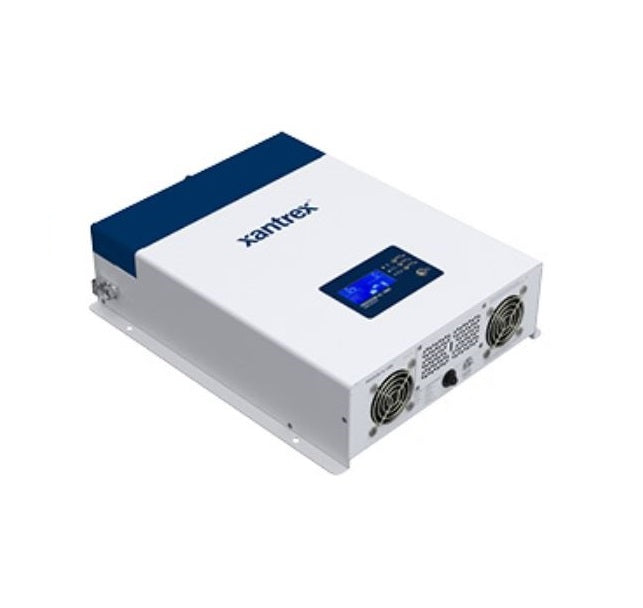

Xantrex Freedom XC Power Inverter Charger (MPN: 817-1050)

High-performance inverter and charger for 12 volt battery systems.

The Xantrex Freedom XC is a versatile power inverter and battery charger designed for 12 volt battery systems. It delivers a continuous output of 1000 watts with a surge capacity of 2000 watts, making it suitable for powering sensitive electronics and motor loads. The unit operates efficiently across a wide temperature range from -4 to 140 degrees Fahrenheit, ensuring reliable performance in various environmental conditions.

This inverter features true sine wave output, which is essential for the safe operation of sensitive devices. The ignition control feature allows for automatic operation based on the vehicle's ignition status, minimizing battery drain. With a wide DC input range of 10 to 18 volts, the Freedom XC is compatible with high voltage alternators found in many modern vehicles.

Installation is simplified with quick connect terminals for AC input and output, and an easy access wiring compartment. The built-in 30 ampere AC transfer relay automatically switches the load from the inverter to an external power source when available, ensuring seamless power management. The onboard display provides real-time information on AC and battery current, enhancing user control and monitoring.

Features

• Extended Surge Rating: Surges To 2X Continuous Power For 2 Seconds For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads
• Ignition Control To Turn Inverter On Or Off Via A 12 Volt DC Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
• Wide 10 To 18 Volt DC Input Rang Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
• Programmable AC Under-Voltage (85 To 110 Volt AC) Shutdown Is Ideal To Operate Under Weak Shore Power Or Generator Input
• Built-In 30 Ampere AC Transfer Relay Senses When Outside AC Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power
• View AC And Battery Current, Percent Status Bar For Inverter Output On The Onboard Display
• Hardwire Or Plug Directly Into The Optional 20 Ampere GFCI Receptacle
• Easy Access AC And DC Wiring Compartment For Quick Installation

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 817-1050
• Compatibility: 12 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 1000 Watt
• Input Voltage: Inverter: 10.5 To 15.5 Volt DC/ Charger: 90 To 130 Volt AC
• Peak Power Output: 2000 Watt
• Ampere Rating: 50 Amp
• Efficiency: 91 Percent
• Operating Temperature: -4 To 140 Degree Fahrenheit
• Standards: ETL Listed To CSA 107.1/ UL458/ ABYC E11/ A-31

Technical Documents

• Freedom-X-GFCI-Device-Installation-Guide-975-0788-01-01_Rev-A_ENG-1.pdf
• 975-0784-01-01_Rev-D.pdf
• 20240611_FREEDOMXC_Datasheet.pdf
