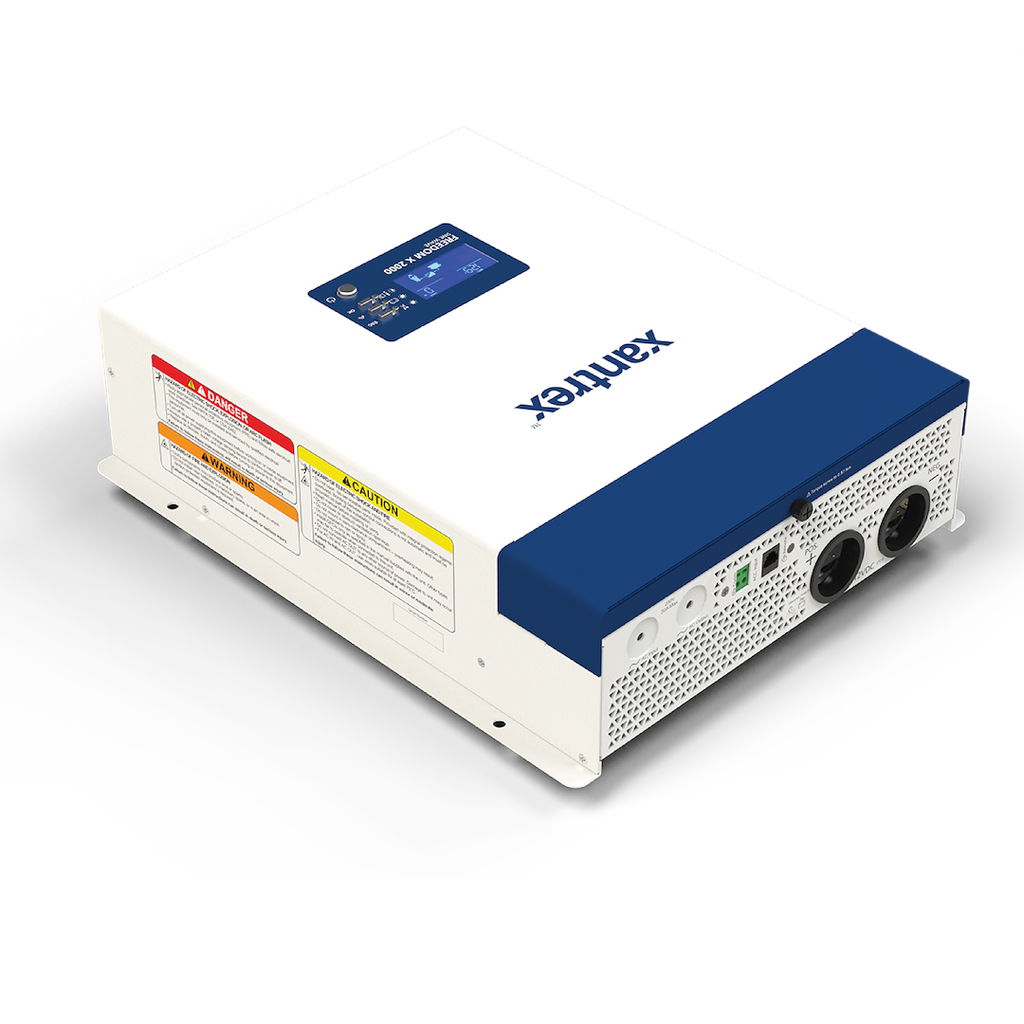

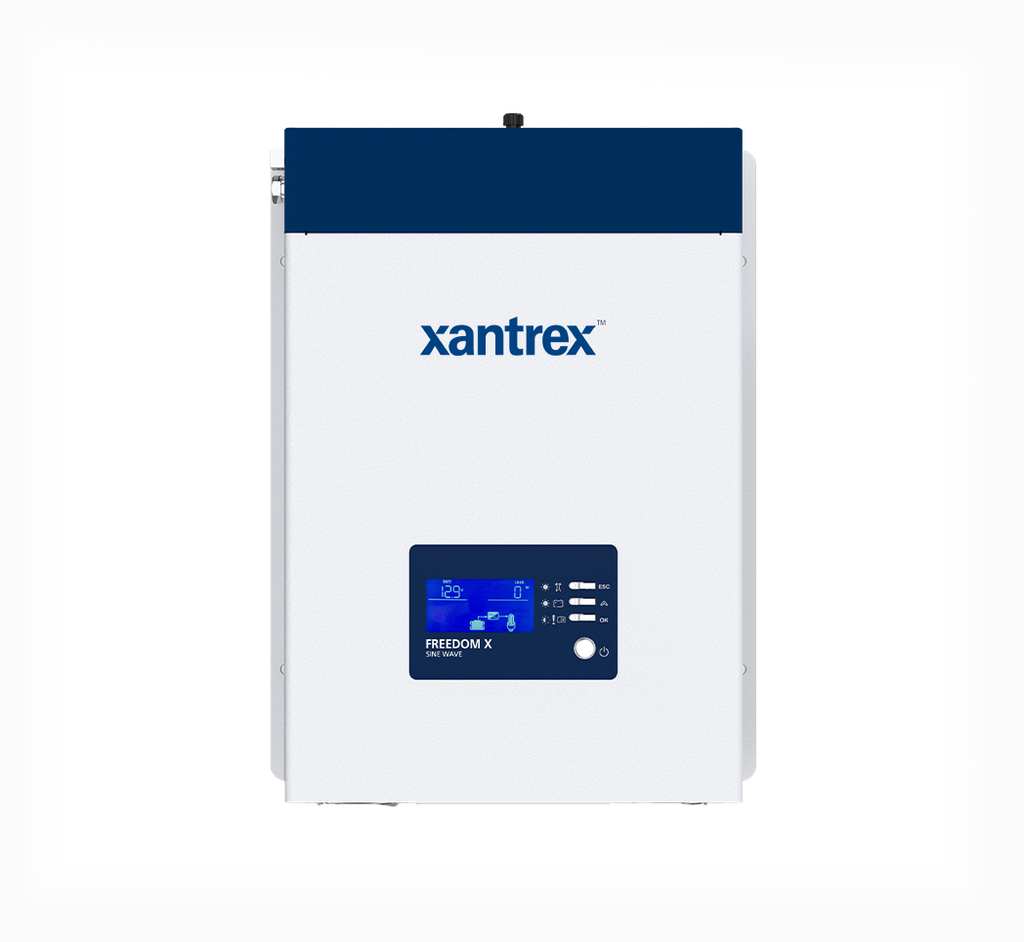

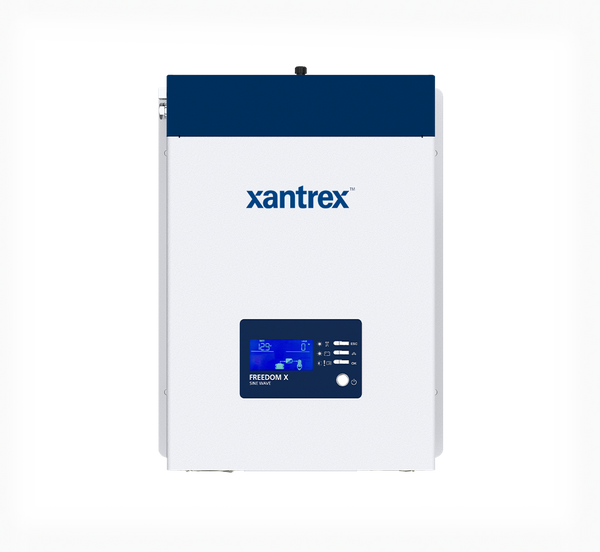

Xantrex Freedom X Power Inverter (MPN: 817-2000)

High-efficiency inverter for versatile power applications.

The Xantrex Freedom X Power Inverter is engineered to convert 12 Volt DC to 120 Volt AC, providing a continuous output of 2000 Watts and a surge capacity of 4000 Watts. This inverter is designed for both recreational and commercial applications, ensuring reliable power delivery in various environments. With a compact size of 15.4 inches in length, 10.8 inches in width, and 4 inches in height, it offers premium performance while remaining lightweight and easy to install.

Operating efficiently at 91 percent, the Freedom X is capable of functioning in extreme temperatures ranging from -4 degrees Fahrenheit to 104 degrees Fahrenheit. This feature makes it suitable for diverse climate conditions. The inverter's true sine wave output ensures compatibility with sensitive electronics and motor loads, making it an excellent choice for starting difficult appliances such as refrigerators and microwaves.

Installation is simplified with quick connect terminals for AC input and output, and the onboard display provides real-time monitoring of AC and battery current along with a percentage status bar for inverter output. The remote on/off capability adds convenience, allowing users to control the inverter from a distance.

Features

• Offers Premium Performance In A Lightweight Compact Package
• Cranks Out Full Output From -4 Degree Fahrenheit - 104 Degree Fahrenheit For Operation In All Climate Temperatures
• The Extended Surge Rating Makes It Ideal To Start Difficult Loads Including Fridge And Microwave
• Designed For Recreational And Commercial Applications
• Surges To 2X Continuous Power For 2 Seconds For Motor Loads
• True Sine Wave AC Power For Operation Of Sensitive And Motor Loads

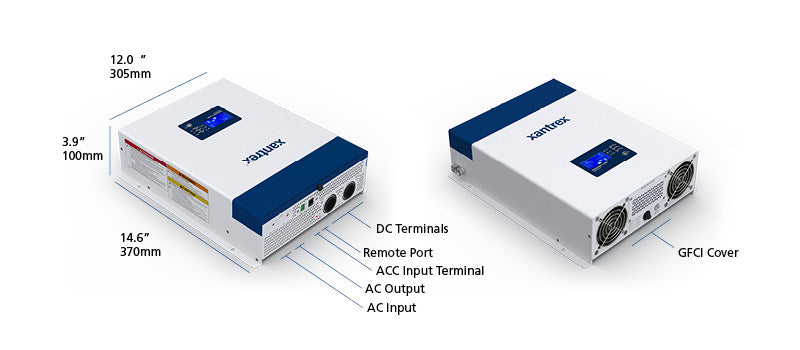

• The Quick Connect Terminals At AC IN AND OUT Make Installation A Breeze
• View AC And Battery Current, Percentage Status Bar For Inverter Output On The Onboard Display

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 817-2000
• Input Voltage: 12 Volt DC
• Output Voltage: 120 Volt AC
• Continuous Output Power (W): 2000 Watt
• Peak Output Power (W): 4000 Watt
• Ampere Rating: 16.7 Amp
• Efficiency: 91 Percent
• Length (IN): 15.4 Inch
• Width (IN): 10.8 Inch
• Height (IN): 4 Inch
• Remote On/Off Capable: Yes
• With USB Port: No
• With Volt/Watt Meter: No
• With Short Circuit: No
• With Reverse Battery Protection: No
• With Thermal Protection: No
• With Battery Cables: No
• With Built-In Charger: No
• With Fuse: No

Technical Documents

• Freedom-X-Inverter-Owners-Guide-975-0787-01-01_Rev-F_ENG.pdf
• Warranty_817-1000.pdf
• 20201222_FREEDOMX_Datasheet-1.pdf
