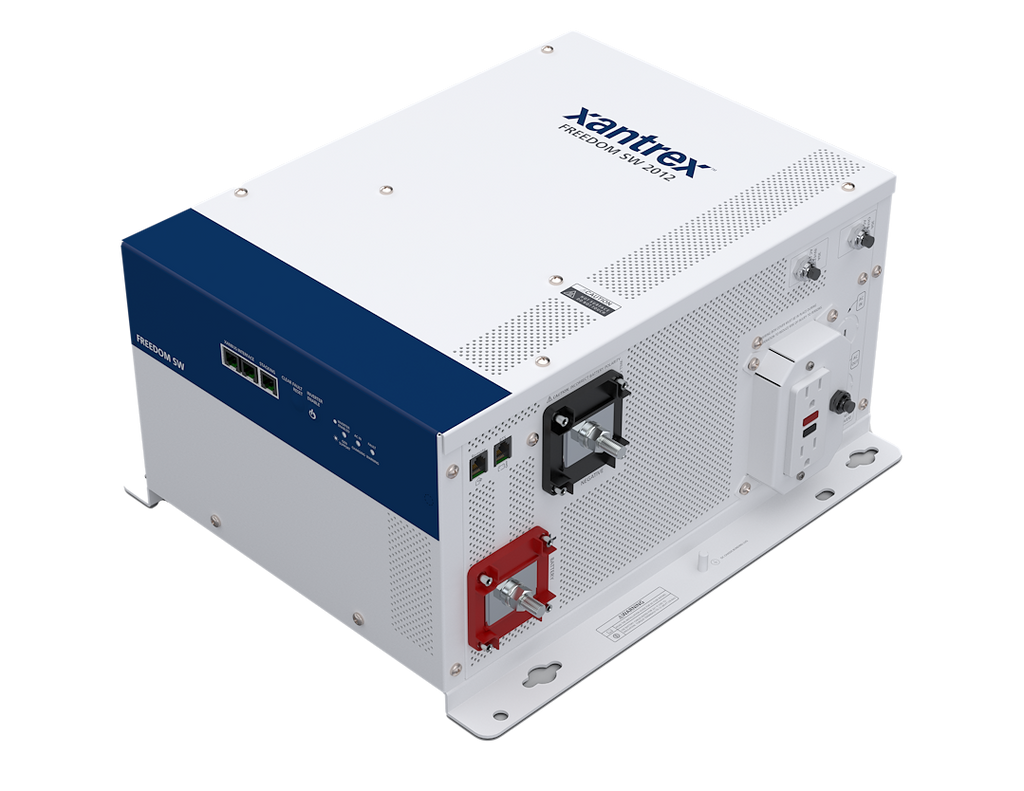

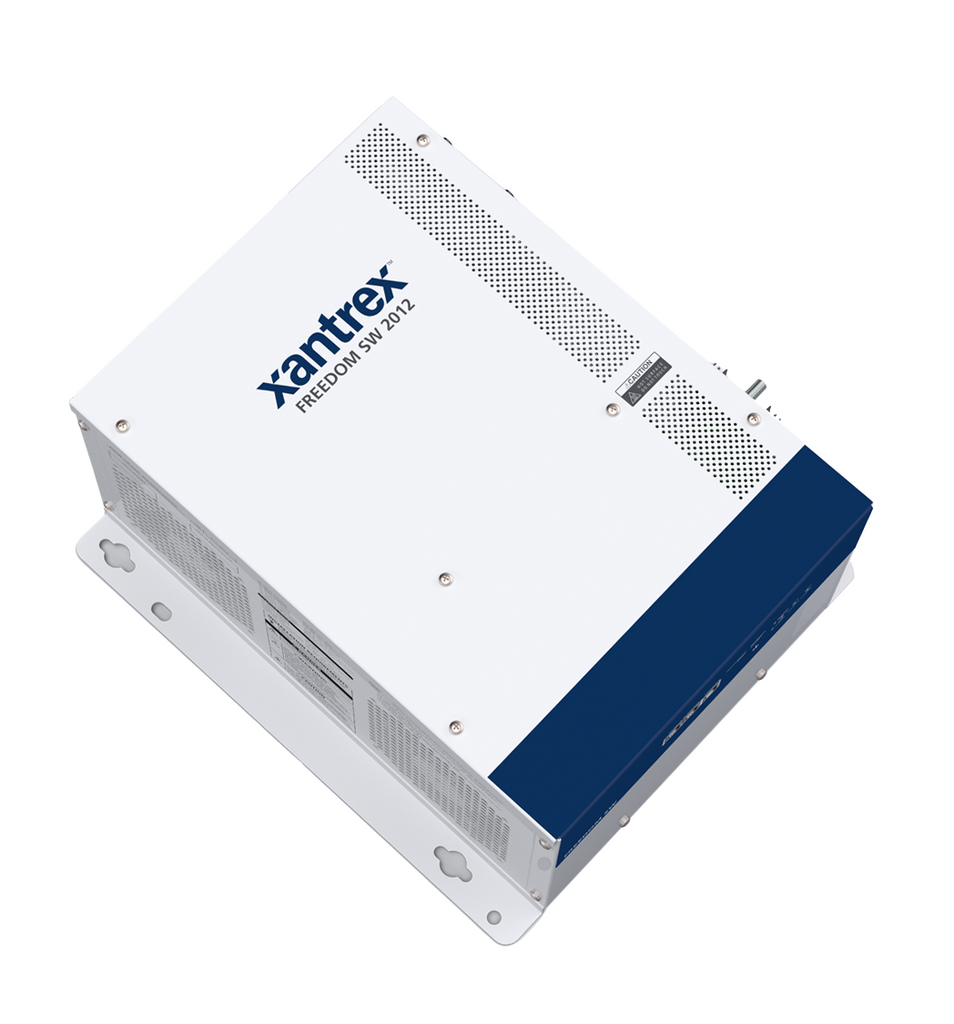

Xantrex Freedom SW Series Power Inverter (MPN: 815-2012)

Advanced inverter and battery charger for reliable power management.

The Xantrex Freedom SW Series Power Inverter is designed for 12 Volt batteries, providing a continuous output of 2000 Watts and a peak output of 4000 Watts. This unit features pure sine wave output, ensuring compatibility with sensitive electronics and appliances. With a high efficiency rating of 90 percent, it operates effectively across a wide temperature range of -4 to 140 degrees Fahrenheit. The inverter includes essential safety features such as battery over-voltage and under-voltage protection, over-temperature shutdown, and automatic overload protection, making it a reliable choice for various applications.

This second generation model introduces a Generator Support Mode, allowing it to supplement generator power when AC loads exceed capacity. The improved AC transfer time of less than 10 milliseconds ensures a seamless transition to battery power, minimizing disruption to connected loads. The built-in transfer switch automatically switches between inverter power and incoming AC power, enhancing convenience and reliability.

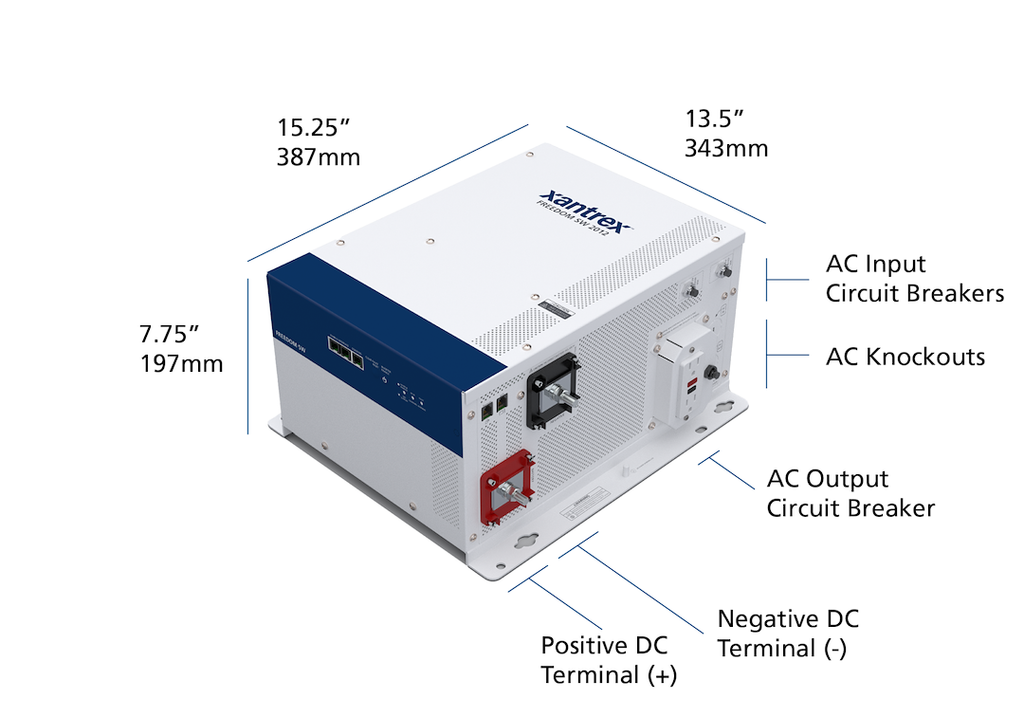

The Xantrex Freedom SW Series is ETL listed to CSA 107.1, UL458, and ABYC standards, ensuring compliance with safety regulations. Its compact design, measuring 7-3/4 inches in height, 13-1/2 inches in width, and 15-1/4 inches in length, allows for easy installation in various settings. Optional remote panel capabilities further enhance its functionality, making it a versatile solution for power management.

Features

• Battery Over-Voltage And Under-Voltage Protection
• Over-Temperature Shutdown
• Automatic Overload Protection
• Short-Circuit Protection
• Integrated, Resettable AC Breakers
• Pure Sine Wave Output To Operate Sensitive Electronics
• Parallel And Series Stacking Capability
• Built-In Transfer Switch Automatically Transfers Between Inverter Power And Incoming AC Power
• Temperature Compensated Charging For A Variety Of Climate Conditions

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 815-2012
• Compatibility: 12 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 2000 Watt
• Input Voltage: Inverter: 10.5 To 15.5 Volt DC/ Charger: 90 To 130 Volt AC
• Peak Power Output: 4000 Watt
• Ampere Rating: 100 Amp
• Efficiency: 90 Percent
• Operating Temperature: -4 To 140 Degree Fahrenheit
• Standards: ETL listed To CSA 107.1/ UL458/ ABYC E11/ A-31/ A-32
