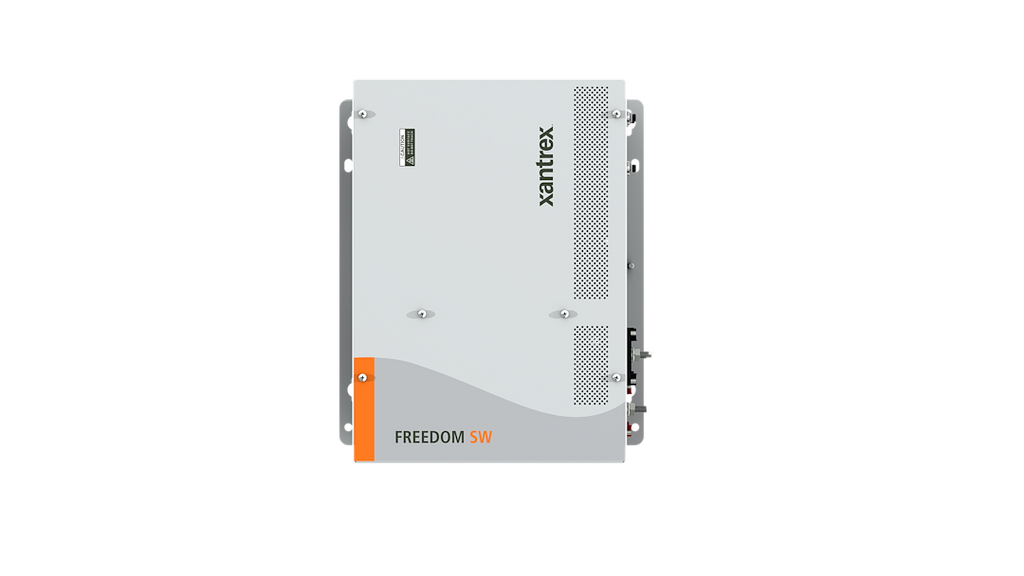

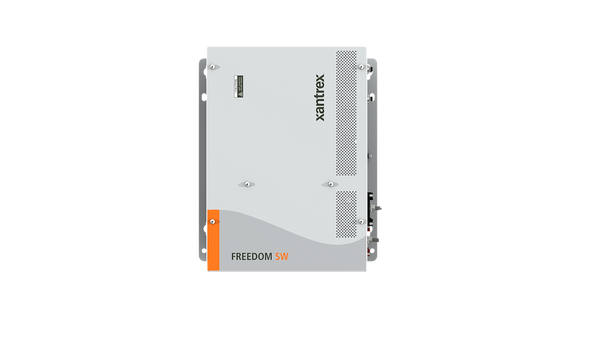

Xantrex Freedom SW 230 Inverter Charger (MPN: 815-3524-02)

High-performance inverter and charger for 24 volt battery systems.

The Xantrex Freedom SW 230 is a versatile inverter and battery charger designed for 24 volt battery systems. It delivers a continuous output of 3400 watts with a peak surge capability of 6800 watts, making it suitable for demanding applications such as air conditioners and water pumps. This unit features a pure sine wave output, ensuring compatibility with sensitive electronics and appliances. With a built-in transfer switch, it automatically switches between inverter power and incoming AC power, providing seamless operation.

This inverter charger is equipped with advanced safety features including battery over-voltage and under-voltage protection, over-temperature shutdown, and short-circuit protection. The temperature compensated charging system adapts to various climate conditions, enhancing charging efficiency. Additionally, the Freedom SW 230 supports parallel stacking capability, allowing users to double the inverter power output when needed. Its wide operating temperature range of -4 to 140 degrees Fahrenheit and conformal coated circuit boards make it suitable for use in humid environments.

The Xantrex Freedom SW 230 is CE certified and ROHS compliant, ensuring it meets high safety and environmental standards. With its robust design and advanced features, this inverter charger is an essential component for reliable power management in off-grid and backup power applications.

Features

• Parallel Stacking Capability To Double The Inverter Power Output
• Advanced Configuration Options For Customized Applications
• Built-In Transfer Switch Automatically Transfers Between Inverter Power And Incoming AC Power
• Power Factor Corrected, Multi-Stage Charger For Fast, Efficient Charging
• Temperature Compensated Charging For a Variety Of Climate Conditions
• Ignition lockout feature helps Prevent Unnecessary Battery Drain When The Alternator Is Not Providing Power
• Wide Operating Temperature Range: -4 Degree Fahrenheit To 140 Degree Fahrenheit
• Conformal Coated Circuit Boards For Humid Environments
• Battery Over-Voltage And Under-Voltage Protection; Over Temperature Shutdown, Automatic Overload Protection And Short-Circuit Protection

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 815-3524-02
• Compatibility: 24 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 3400 Watt
• Input Voltage: Inverter: 20 To 32 Volt DC/ Charger: 170 To 270 Volt AC
• Peak Power Output: 6800 Watt
• Ampere Rating: 90 Amp
• Efficiency: 90 Percent
• Operating Temperature: -4 To 140 Degree Fahrenheit
• Standards: CE Certified/ ROHS Compliant
