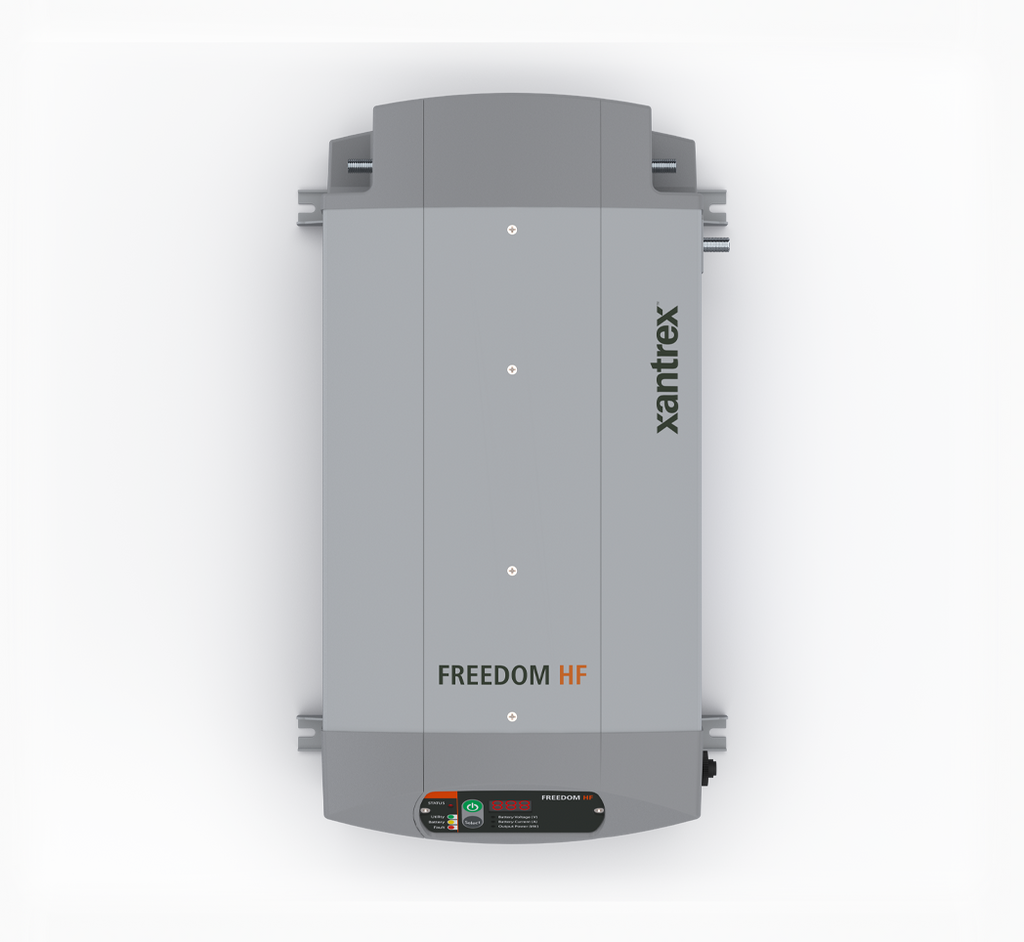

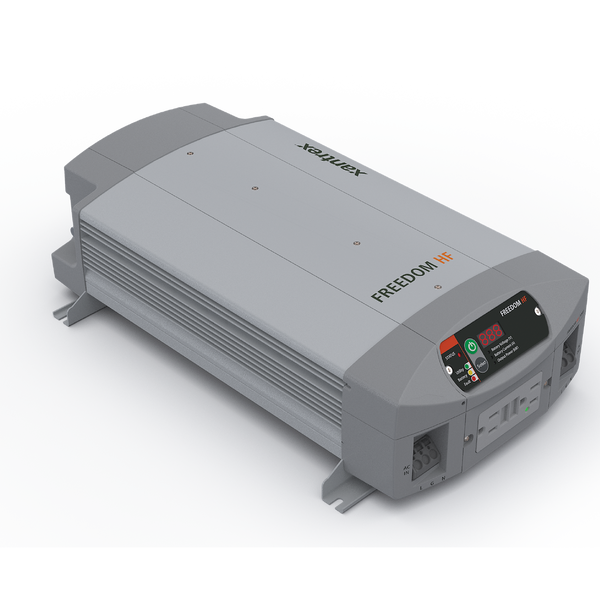

Xantrex Freedom HF Inverter Charger (MPN: 806-1020)

Compact and efficient power solution for 12 volt batteries

The Xantrex Freedom HF Inverter Charger is engineered for 12 volt battery systems, providing a continuous output of 1000 watts and a peak output of 2000 watts. This device features modified sine wave output, making it suitable for powering entertainment systems and small appliances in various mobile applications such as boats, RVs, and trucks. With an efficiency rating of 87 percent, it ensures optimal performance while minimizing energy loss.

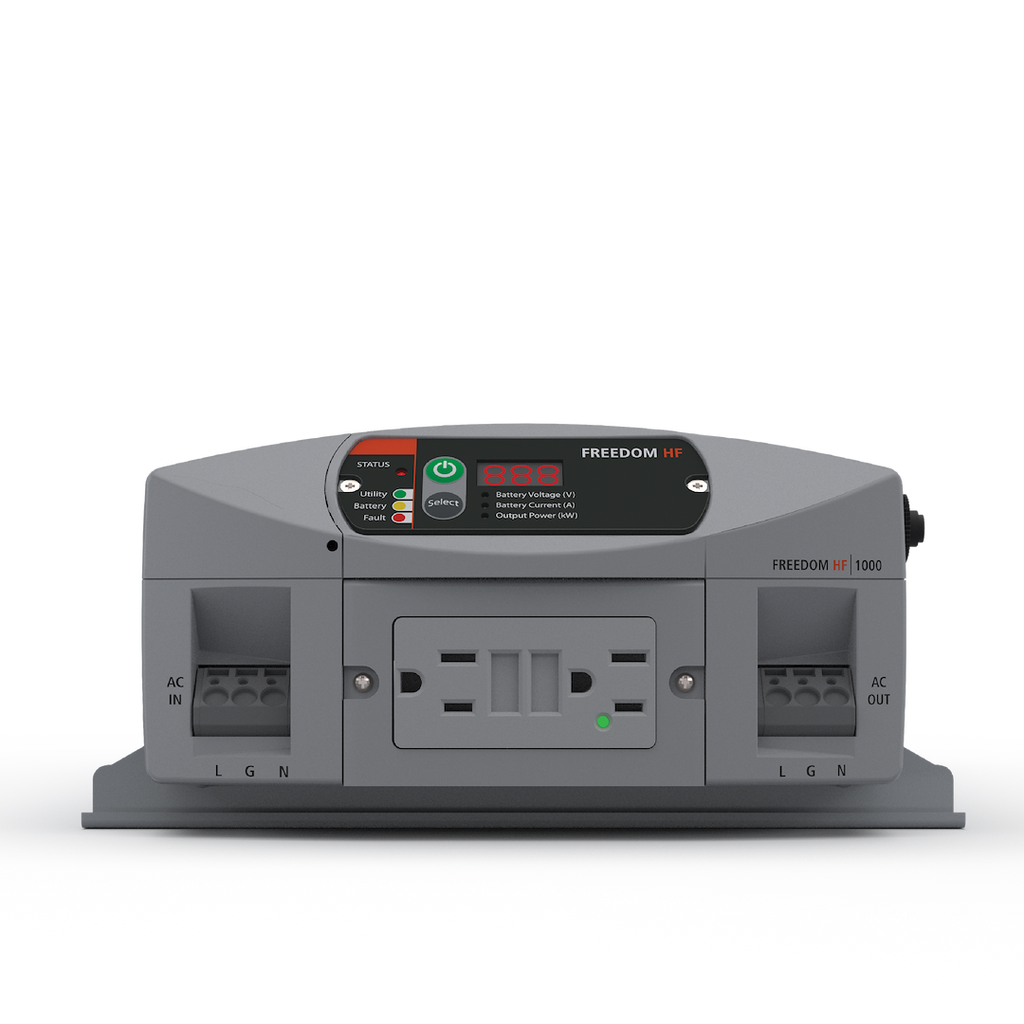

Designed with user convenience in mind, the Freedom HF includes a quick-connect AC terminal block for easy installation and an ignition lockout feature that reduces battery drain by disabling the inverter when the vehicle's ignition is off. Safety is paramount, as this inverter charger is equipped with multiple protection mechanisms including battery over-voltage and under-voltage protection, over-temperature shutdown, automatic overload protection, short-circuit protection, and ground-fault protection.

The unit is ETL certified to UL458 standards, ensuring its reliability for mobile RV and commercial applications. It also features an automatic three-stage battery charger, enhancing battery life and performance. The compact dimensions of 15.5 inches in length, 9.5 inches in width, and 4.2 inches in height make it a versatile choice for various installations.

Features

• Battery Over-Voltage And Under-Voltage Protection
• Over-Temperature Shutdown
• Automatic Overload Protection
• Short-Circuit Protection
• Ground-Fault Protection
• ETL Certified To UL458 For Use In Mobile RV And Commercial Applications
• Automatic Three-Stage Battery Charger
• Ignition Lockout Feature Helps To Minimize Battery Drain
• Designed To Power Demanding Loads Such As Microwave Ovens, TVs, DVD Players, Small Appliances And Other Electronic Equipment

Specifications

• Manufacturer: Xantrex
• Manufacturer Part Number: 806-1020
• Compatibility: 12 Volt Batteries
• Smart Technology Compatible: Not Compatible With Smart Technology
• Continuous Power Output: 1000 Watt
• Input Voltage: Inverter: 10.5 To 15.5 Volt DC/ Charger: 90 To 130 Volt AC
• Peak Power Output: 2000 Watt
• Ampere Rating: 20 Amp
• Efficiency: 87 Percent
• Operating Temperature: 32 To 104 Degree Fahrenheit
• Standards: ETL Listed To CSA C22.2 No. 107.1/ UL458

Technical Documents

• 975-0395-01-01_Rev-H-Freedom-HF-Install-Guide_ENG.pdf
• 975-0390-01-01_Rev-JFreedom-HF-Owners-Guide_ENG.pdf
• Freedom_HF_Warranty-Terms-n-Conditions_NA.pdf
• 20211025_FREEDOMHF_Datasheet.pdf
