High capacity oil filter designed for construction and farm equipment engines.

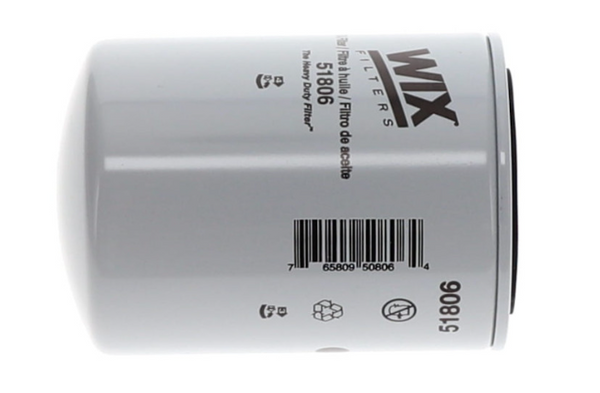

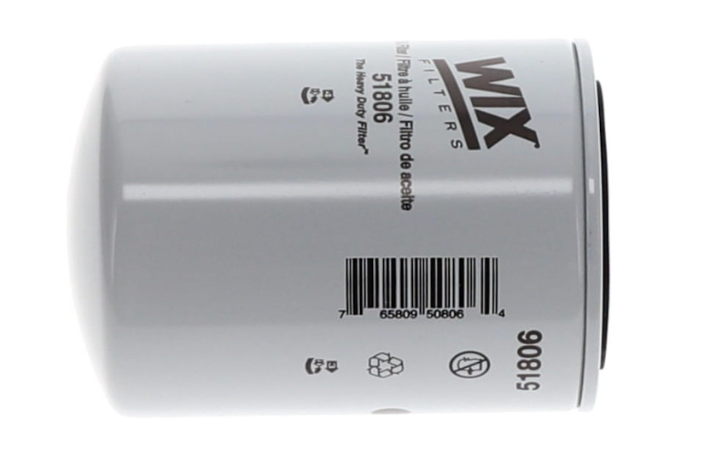

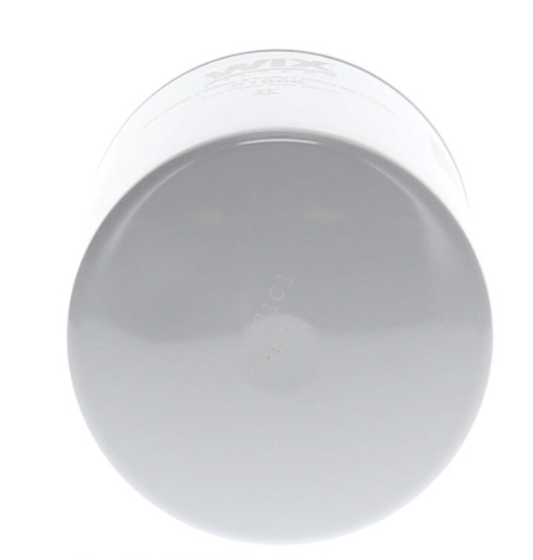

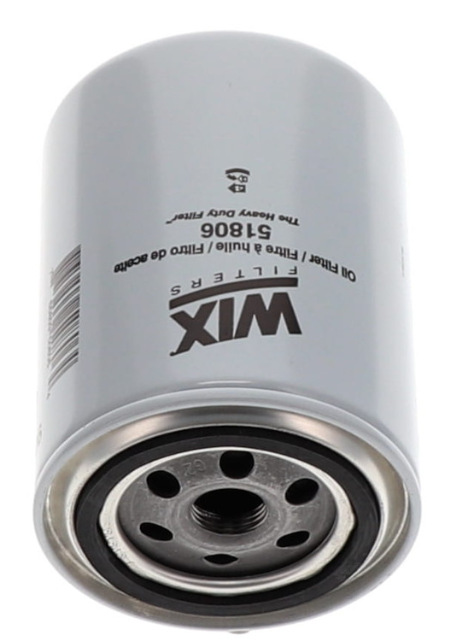

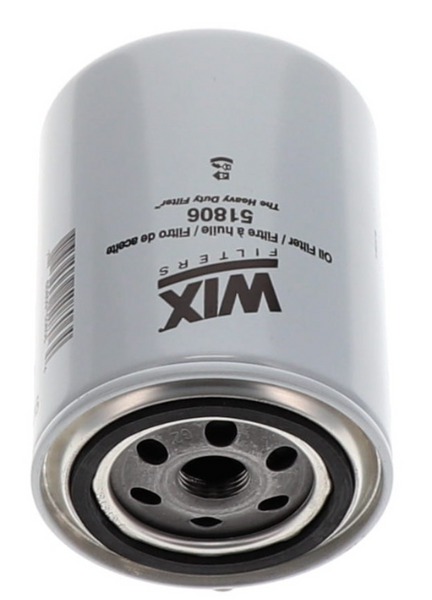

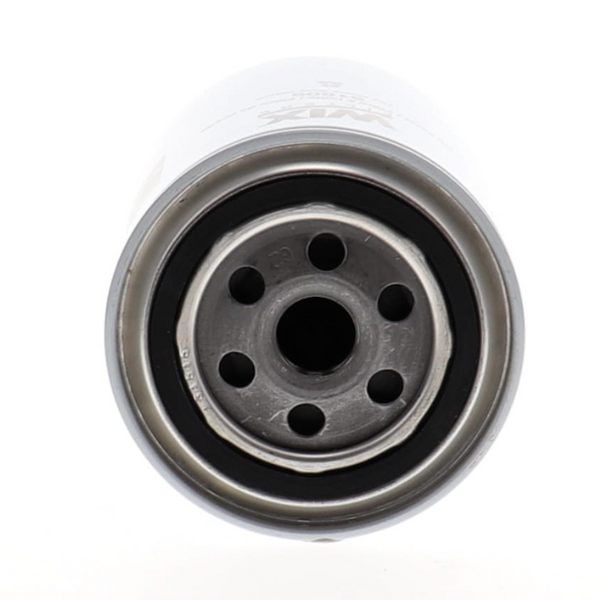

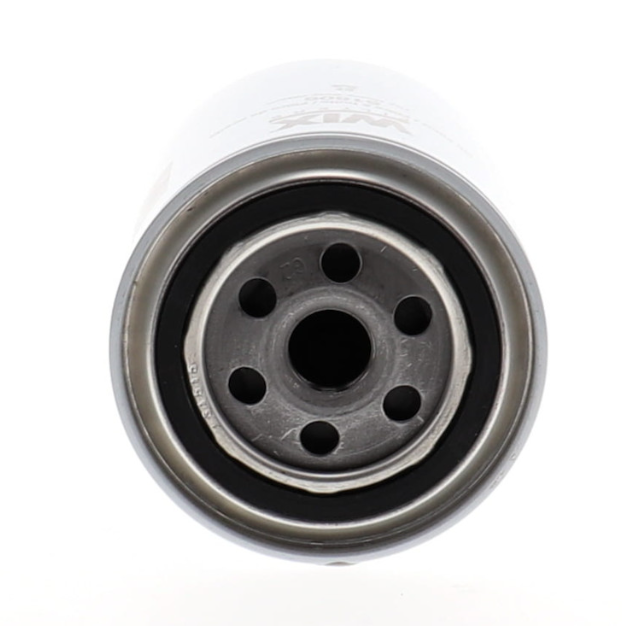

Wix Filters Spin-On Oil Filter is engineered to provide superior engine protection for a variety of applications including medium and heavy trucks, farm, construction, and mining equipment. With a height of 5.189 inches and an outside diameter of 3.663 inches, this filter is designed to meet the demands of Perkins and Caterpillar engines. The filter features a 21 micron element that effectively captures contaminants, ensuring optimal engine performance and longevity.
The innovative Spin Flow Technology enhances filter life by directing heavy particles to the coarse filtration element, which removes them from the oil. The angled fins at the oil entry point facilitate this process, while the XD high-strength media traps larger particles and prevents media clogging. Additionally, the multi-density wire back media in the fine filtration element captures finer particles, extending the filter's lifespan.
This oil filter is constructed from high-quality cellulose material and includes an anti-drain back valve and a filter bypass relief valve for added reliability. It is compatible with OEM oil and filter change intervals, making it a practical choice for maintenance routines. The Wix Filters Spin-On Oil Filter is a robust solution for maintaining engine health in demanding environments.
Features
- “Spin Flow Technology” Designed To Increase Filter Life
- The Angled Fins Are Placed Where The Oil Enters The Filter To Start The Process Of Directing Heavy Particles To The Coarse Filtration Element In Order To Remove Them From The Oil
- XD High-Strength Media Will Trap The Larger Particles Being “spun” Down And Will Trap Media Clogging Sludge
- XD Multi–density Wire Back Media In The Fine Filtration Element To Trap Finer Particles And Last Longer
Specifications
- Manufacturer: Wix Filters
- Manufacturer Part Number: 51806
- Material: Cellulose
- Color: White
- Micron Rating: 21
- Type: Spin-On
- Diameter (IN): 3.663 Inch
- Height (IN): 5.189 Inch
- Anti-Drain Back Valve: Yes
- Filter Bypass Relief Valve: Yes
- Gasket Material: OEM
- Estimated Install Time (Hours): 0.25
- Marine: Yes
