High capacity oil filter designed for heavy-duty applications.

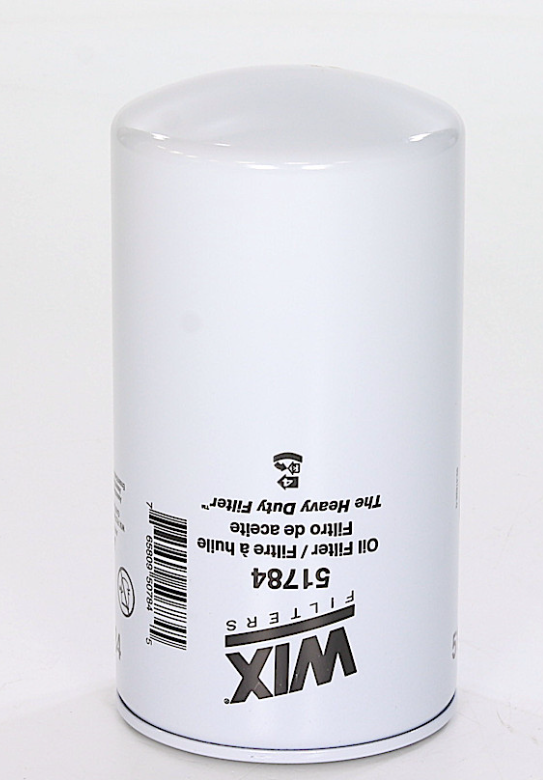

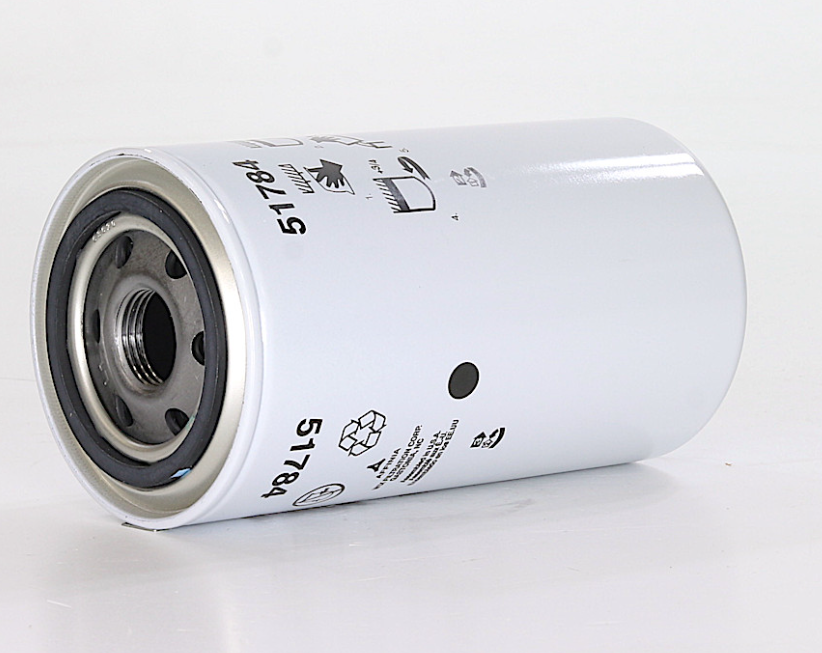

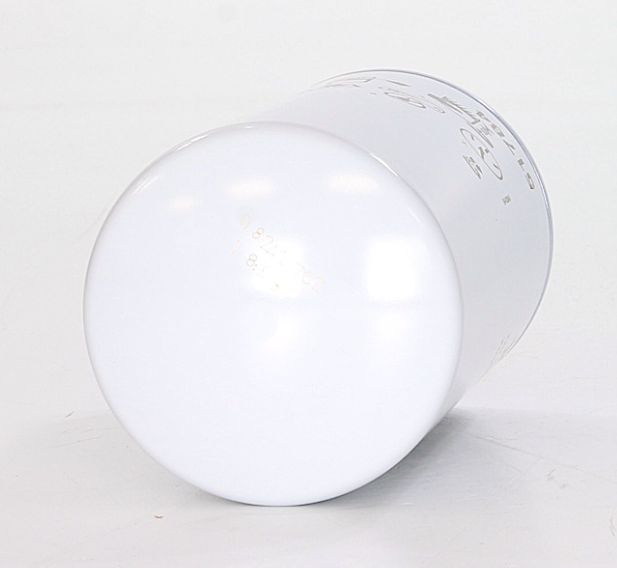

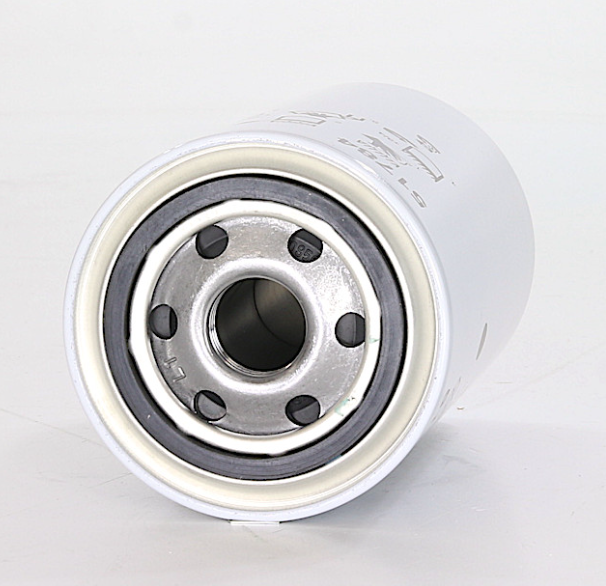

Wix Filters Spin-On Oil Filter is engineered to provide superior engine protection for medium and heavy trucks, as well as farm, construction, and mining equipment. With a height of 6.987 inches and an outside diameter of 3.674 inches, this filter is designed to meet the rigorous demands of various applications. The filter features a 24 micron element that effectively captures both large and fine particles, ensuring optimal oil cleanliness and engine performance.
The innovative Spin Flow Technology enhances filter life by directing heavy particles to the coarse filtration element, which helps in removing contaminants from the oil. The XD high-strength media is specifically designed to trap larger particles and prevent media clogging, while the multi-density wire back media in the fine filtration element ensures longer-lasting filtration efficiency. This oil filter is compatible with 75-93 IHC/Navistar trucks, Case, and Hitachi equipment, making it a versatile choice for various heavy-duty applications.
Wix Filters recommends adhering to OEM oil and filter change intervals to maintain engine health and performance. The filter is equipped with an anti-drain back valve to prevent oil drain during engine shutdown, ensuring immediate oil flow upon startup. With its robust construction and advanced filtration technology, the Wix Filters Spin-On Oil Filter is a reliable choice for those seeking to protect their engines in demanding environments.
Features
- “Spin Flow Technology” Designed To Increase Filter Life
- The Angled Fins Are Placed Where The Oil Enters The Filter To Start The Process Of Directing Heavy Particles To The Coarse Filtration Element In Order To Remove Them From The Oil
- XD High-Strength Media Will Trap The Larger Particles Being “spun” Down And Will Trap Media Clogging Sludge
- XD Multi–density Wire Back Media In The Fine Filtration Element To Trap Finer Particles And Last Longer
Specifications
- Manufacturer: Wix Filters
- Manufacturer Part Number: 51784
- Material: Cellulose
- Color: White
- Micron Rating: 24
- Type: Spin-On
- Diameter (IN): 3.674 Inch
- Height (IN): 6.987 Inch
- Anti-Drain Back Valve: Yes
- Filter Bypass Relief Valve: No
- Gasket Material: OEM
- Estimated Install Time (Hours): 0.25
- Marine: Yes
