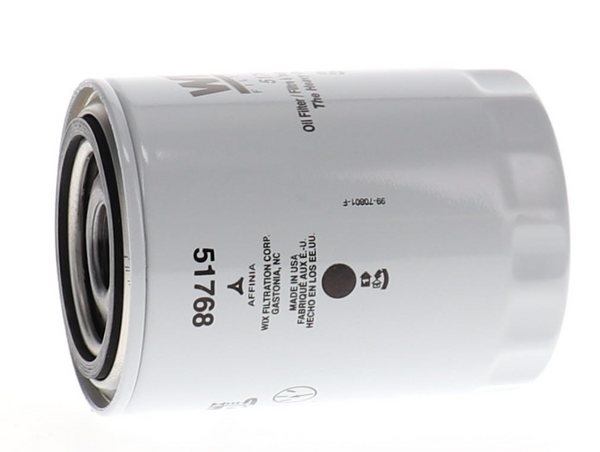

Wix Filters Spin-On Oil Filter (MPN: 51768)

High capacity oil filter designed for heavy-duty applications and superior engine protection.

Wix Filters Spin-On Oil Filter is engineered to provide exceptional engine protection in various applications including medium and heavy trucks, farm equipment, and construction machinery. With a height of 5.178 inches and an outside diameter of 3.66 inches, this filter is designed to meet the rigorous demands of ABG construction equipment, Bomag, Case, IHC, Deutz engines, Deutz tractors, Komatsu, Mitsubishi, and Poclain. The filter features a 35 micron element that effectively captures contaminants, ensuring clean oil circulation and optimal engine performance.

The innovative Spin Flow Technology enhances filter life by directing heavy particles to the coarse filtration element, which removes them from the oil before they can cause damage. The XD high-strength media is specifically designed to trap larger particles and prevent media clogging, while the multi-density wire back media in the fine filtration element captures finer particles, extending the filter's lifespan. This oil filter is constructed with high strength, corrosion-resistant materials, ensuring durability and reliability under various operating conditions.

Wix Filters Spin-On Oil Filter is equipped with an anti-drain back valve and a filter bypass relief valve, providing additional protection and performance. The OEM gasket material ensures a secure fit, while the estimated installation time of just 0.25 hours makes it a convenient choice for maintenance. This filter is also suitable for marine applications, making it a versatile option for a wide range of engines.

Features

• “Spin Flow Technology” Designed To Increase Filter Life
• The Angled Fins Are Placed Where The Oil Enters The Filter To Start The Process Of Directing Heavy Particles To The Coarse Filtration Element In Order To Remove Them From The Oil
• XD High-Strength Media Will Trap The Larger Particles Being “spun” Down And Will Trap Media Clogging Sludge
• XD Multi–density Wire Back Media In The Fine Filtration Element To Trap Finer Particles And Last Longer

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 51768
• Material: Cellulose
• Color: White
• Micron Rating: 35
• Type: Full Flow Spin-On
• Diameter (IN): 3.66 Inch
• Height (IN): 5.178 Inch
• Anti-Drain Back Valve: Yes
• Filter Bypass Relief Valve: Yes
• Gasket Material: OEM
• Estimated Install Time (Hours): 0.25
• Marine: Yes

Technical Documents

• Collapsed_Filters_English_7.pdf
• Bloated_Filters_-_English_6.pdf
• ISO_Cleanliness_Code_English_15.pdf
• Lathe_Square_Cut_Gasket_English_7.pdf
