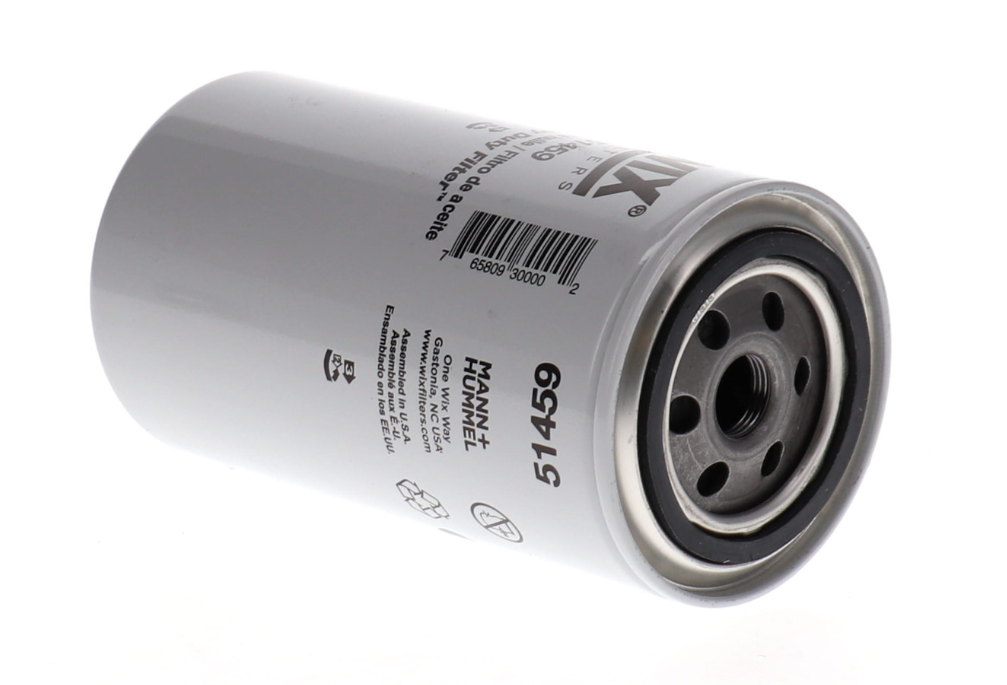

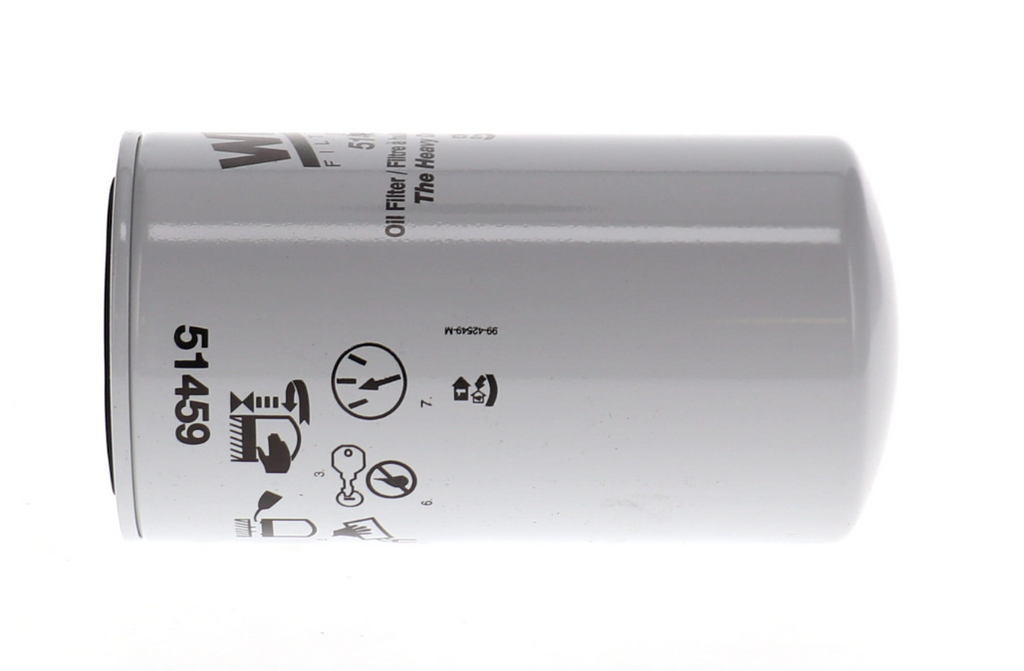

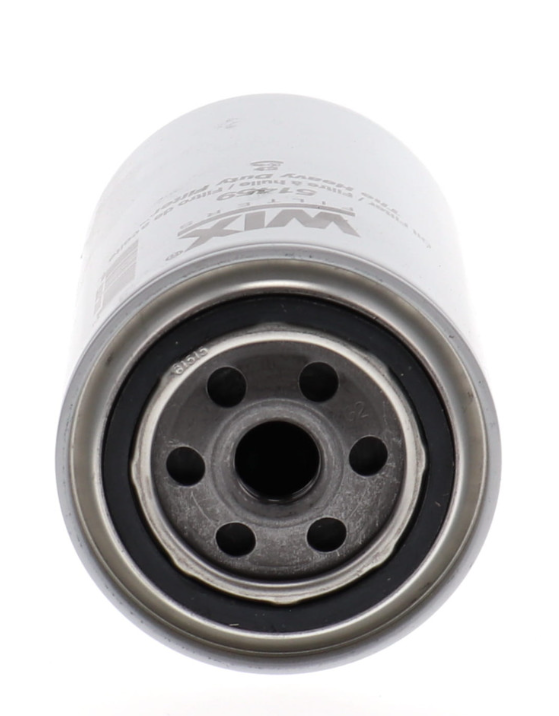

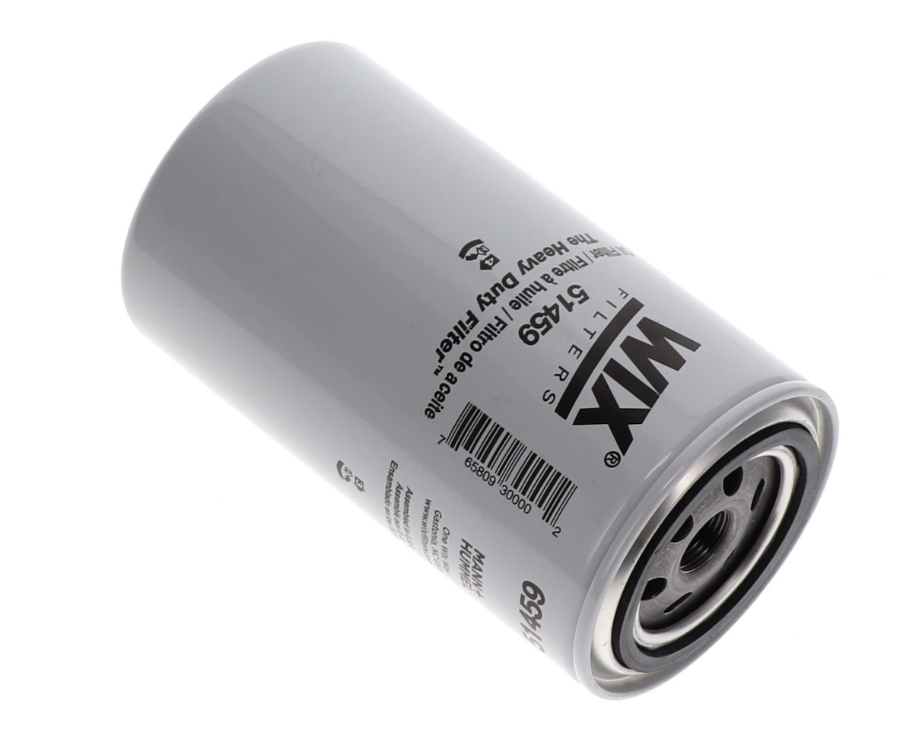

Wix Filters Spin-On Oil Filter (MPN: 51459)

High capacity oil filter designed for superior engine protection and performance.

Wix Filters Spin-On Oil Filter is engineered to provide exceptional engine protection across various applications including medium and heavy trucks, agricultural machinery, and construction equipment. With a height of 7.01 inches and an outer diameter of 3.694 inches, this filter features a 25 micron filtration element that effectively captures contaminants while maintaining optimal oil flow. The filter is constructed with high-strength, corrosion-resistant materials, ensuring durability and reliability under diverse operating conditions.

The innovative Spin Flow Technology enhances filter life by directing heavy particles to the coarse filtration element, thereby improving the overall filtration process. The XD high-strength media is designed to trap larger particles and prevent sludge buildup, while the multi-density wire back media in the fine filtration element captures finer particles, extending the filter's lifespan. This oil filter is compatible with a range of engines from manufacturers such as Bussing, Case, Caterpillar, Iveco, Massey-Ferguson, and Perkins, making it a versatile choice for various machinery.

Wix Filters recommends adhering to OEM oil and filter change intervals to ensure optimal performance. The inclusion of an anti-drain back valve and a filter bypass relief valve further enhances the filter's functionality, providing a leak-resistant and high-performing solution for engine maintenance.

Features

• “Spin Flow Technology” Designed To Increase Filter Life
• The Angled Fins Are Placed Where The Oil Enters The Filter To Start The Process Of Directing Heavy Particles To The Coarse Filtration Element In Order To Remove Them From The Oil
• XD High-Strength Media Will Trap The Larger Particles Being “spun” Down And Will Trap Media Clogging Sludge
• XD Multi–density Wire Back Media In The Fine Filtration Element To Trap Finer Particles And Last Longer

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 51459
• Material: Cellulose
• Color: White
• Micron Rating: 25
• Type: Full Flow Spin-On
• Diameter (IN): 3.694 Inch
• Height (IN): 7.01 Inch
• Anti-Drain Back Valve: Yes
• Filter Bypass Relief Valve: Yes
• Gasket Material: OEM
• Estimated Install Time (Hours): 0.25
• Marine: Yes

Technical Documents

• ISO_Cleanliness_Code_English_16.pdf
• Lathe_Square_Cut_Gasket_English_8.pdf
• Bloated_Filters_-_English_7.pdf
• Collapsed_Filters_English_8.pdf
