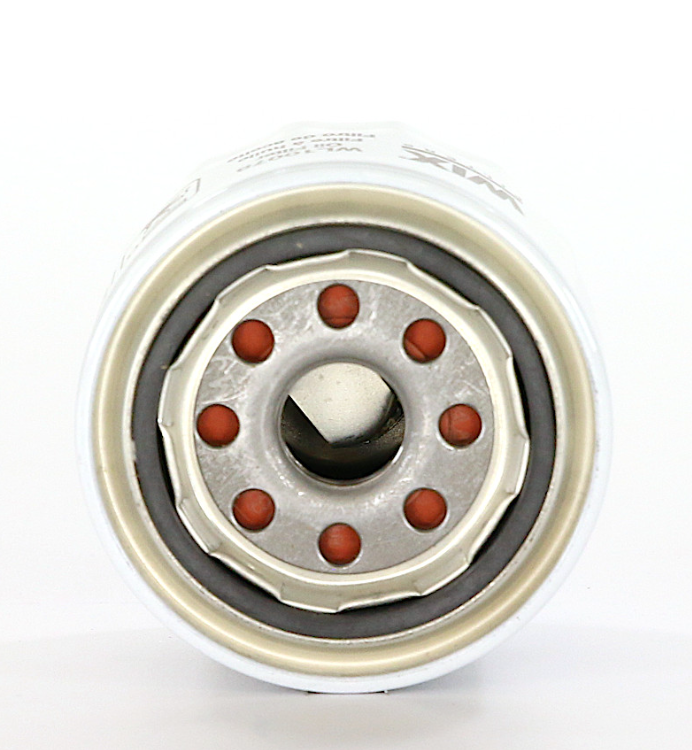

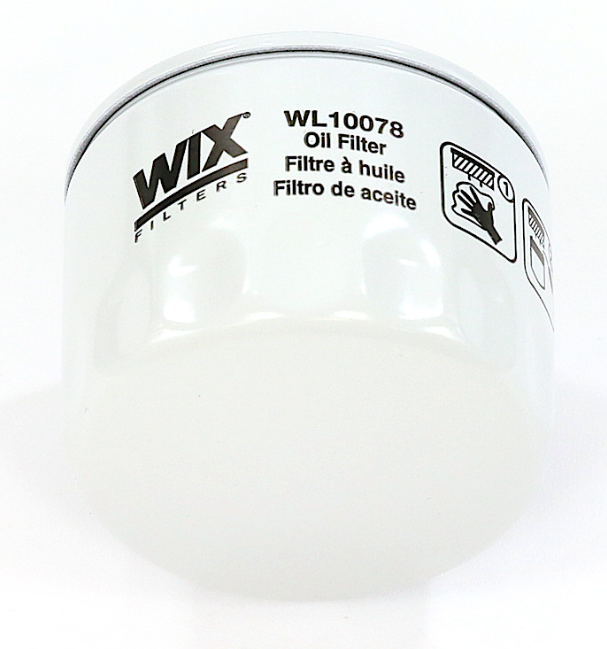

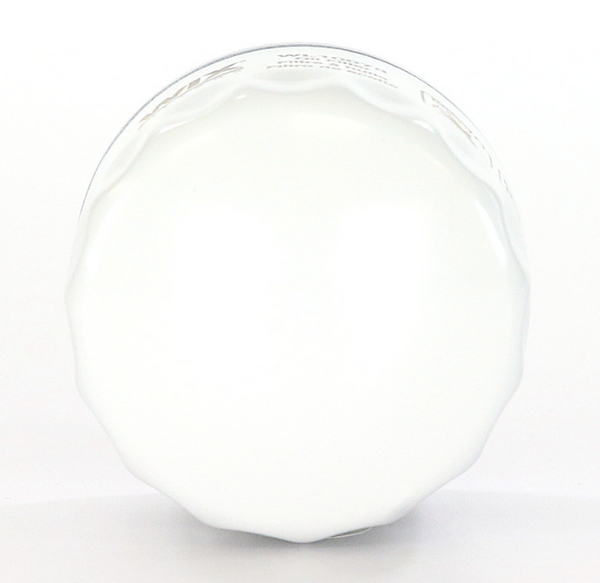

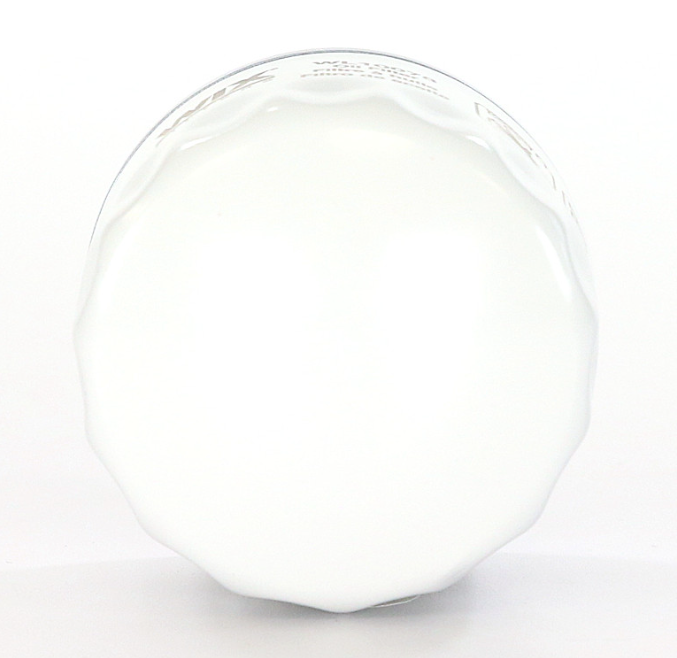

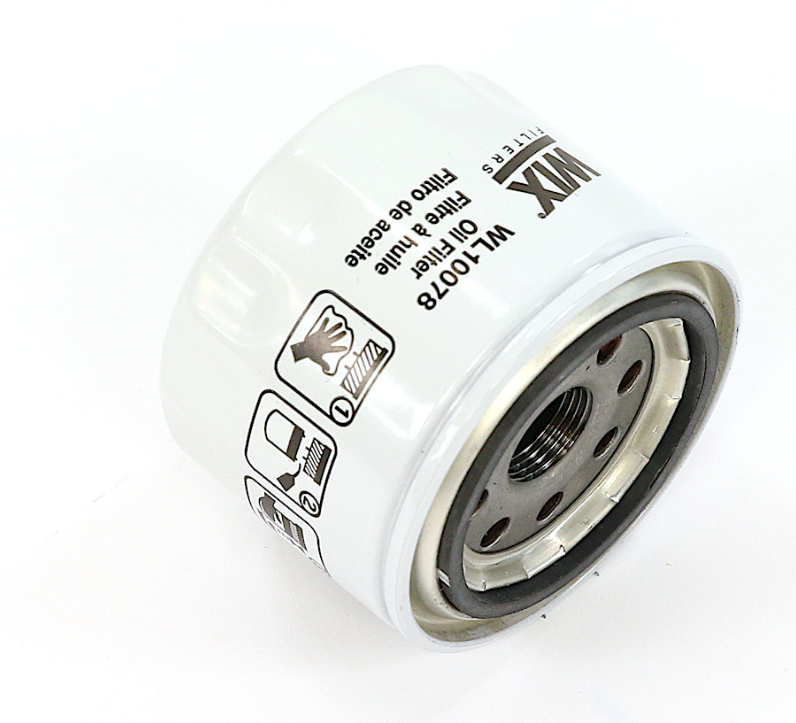

Wix Filters Oil Filter (MPN: WL10078)

High-efficiency oil filter designed for heavy-duty engine protection.

Wix Filters offers a high-performance oil filter designed to enhance engine longevity and efficiency. This oil filter is engineered to trap up to 50 percent more dirt and contaminants compared to standard filters, making it suitable for severe conditions. The flexible silicone anti-drain back valve ensures that the engine remains lubricated during startup, preventing dry starts that can lead to engine wear.

Constructed with heavy-duty center tubes and cans, this filter can withstand a wide range of flow and pressure, ensuring reliable performance in demanding environments. The sturdy element supports are designed to resist various fluid types, vibrations, and extreme temperatures, maintaining structural integrity under constant spring-load pressure. This oil filter is a critical component for maintaining optimal engine performance and reliability.

Features

• Filter Traps Up To 50 Percent More Dirt And Contaminants Than Protect With The Best Combination Of Capacity And Efficiency For Severe Conditions
• Flexible Silicone Anti-Drain Back Valve Protects Against Dry Engine
• Heavy Duty Center Tubes And Cans Which Can Withstand Exposure To A Wide Range In Flow And Pressure
• Sturdy Element Supports Designed To Resist All Fluid Types, Vibration, And High And Low Temperatures, Which Will Not Deform Under Constant Spring-Load Pressure

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: WL10078
• Material: Cellulose
• Color: White
• Micron Rating: OEM
• Type: Spin-On
• Diameter (IN): 3.153 inch
• Height (IN): 2-1/2 Inch
• Anti-Drain Back Valve: Yes
• Filter Bypass Relief Valve: No
• Gasket Material: OEM
• Estimated Install Time (Hours): 0.25
• Marine: Yes

Compatibility / Fit

• 2022-2025 Subaru BRZ
• 2015-2024 Subaru WRX
• 2022-2025 Toyota GR86

Technical Documents

• Collapsed_Filters_English.pdf
• Lathe_Square_Cut_Gasket_English.pdf
