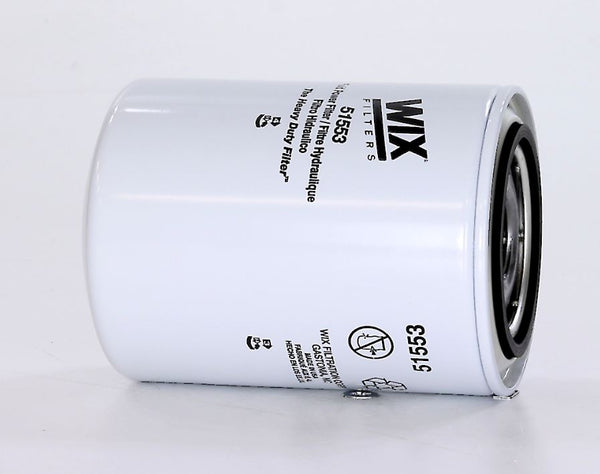

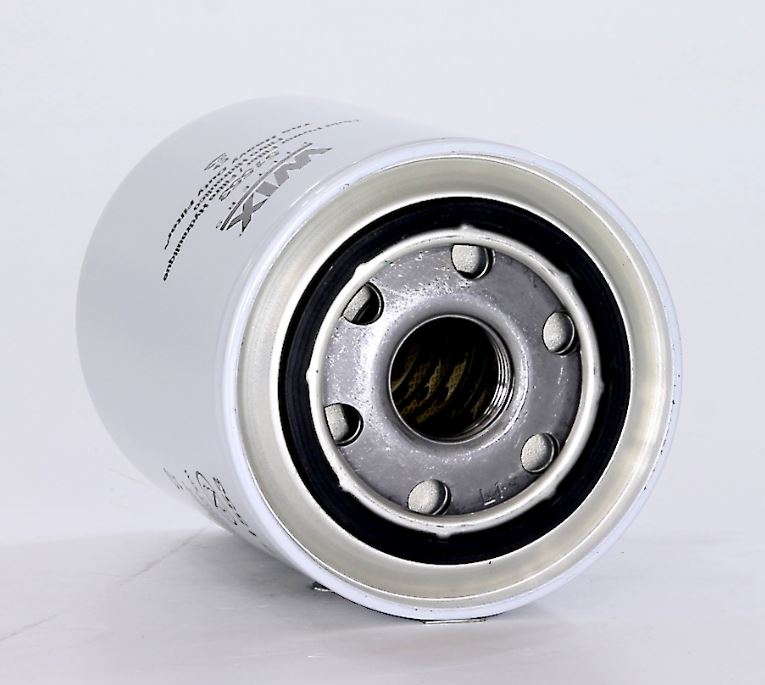

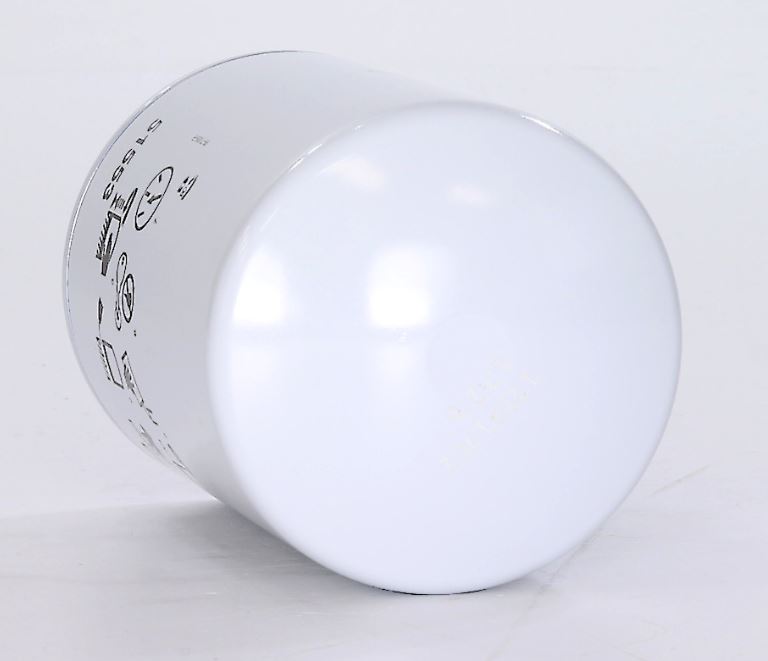

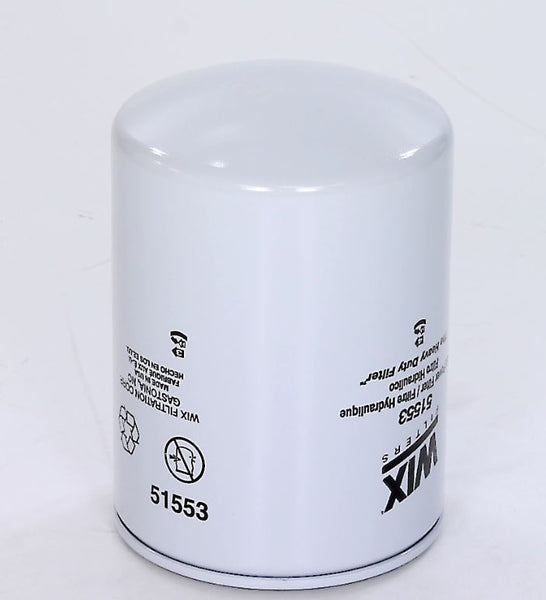

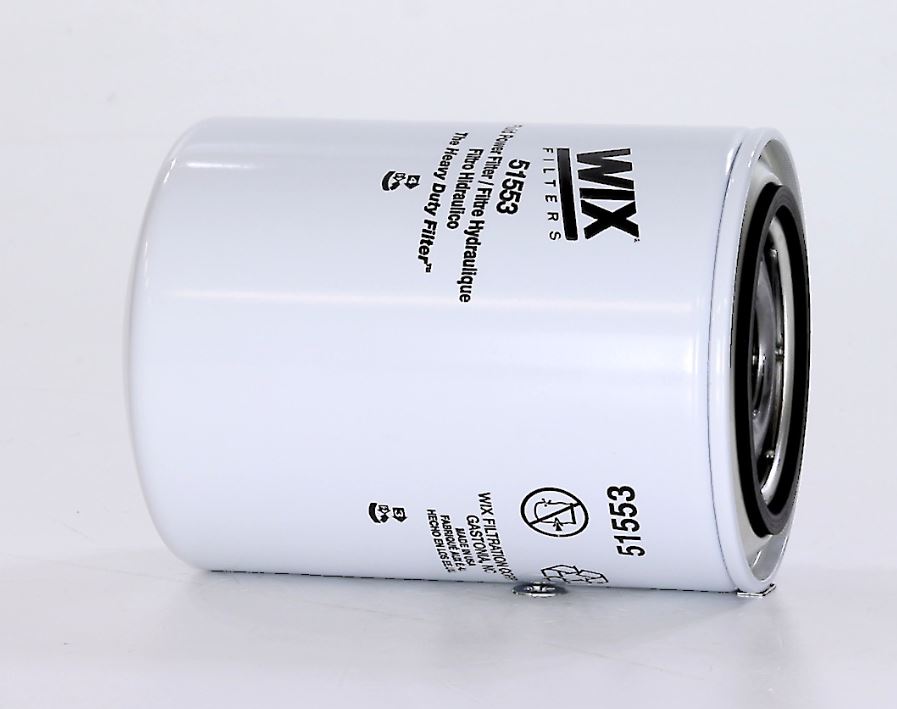

Wix Filters Hydraulic Fluid Filter (MPN: 51553)

High capacity filter designed for heavy duty applications and superior engine protection.

The Wix Filters Hydraulic Fluid Filter is engineered for heavy duty applications, providing exceptional filtration for medium and heavy trucks, farm equipment, construction machinery, and mining operations. With a spin-on style design, this filter features a height of 5.209 inches and an outside diameter of 3.663 inches, ensuring compatibility with various systems. The filter is rated for a burst pressure of 350 PSI and utilizes a 33 micron filtration element to effectively capture contaminants.

This filter incorporates advanced Spin Flow Technology, which enhances filter life by directing heavy particles to the coarse filtration element. The angled fins at the oil entry point initiate the separation process, ensuring that larger particles are efficiently removed from the oil. The XD high-strength media is designed to trap larger particles and prevent media clogging, while the multi-density wire back media in the fine filtration element captures finer particles, extending the filter's lifespan.

Constructed with high strength, corrosion-resistant materials, the Wix Filters Hydraulic Fluid Filter is built to withstand various operating conditions. It is recommended for OEM oil and filter change intervals, ensuring optimal performance and reliability. This filter is suitable for a wide range of applications, including marine use, making it a versatile choice for demanding environments.

Features

• “Spin Flow Technology” Designed To Increase Filter Life
• The Angled Fins Are Placed Where The Oil Enters The Filter To Start The Process Of Directing Heavy Particles To The Coarse Filtration Element In Order To Remove Them From The Oil
• XD High-Strength Media Will Trap The Larger Particles Being “spun” Down And Will Trap Media Clogging Sludge
• XD Multi–density Wire Back Media In The Fine Filtration Element To Trap Finer Particles And Last Longer

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 51553
• Type: Spin-On
• Filter Material: Cellulose
• Dimensions: 5.209 Inch Height x 3.663 Inch Outside Diameter Top
• Micron Rating: 33
• Pressure Rating: OEM
• Operating Temperature: -13 To 248 Degree Fahrenheit
• Quantity: Single
• Marine: Yes

Compatibility / Fit

• 2008-2012 Bobcat Toolcat 5600
• 2008-2012 Bobcat Toolcat 5610

Technical Documents

• ISO_Cleanliness_Code_English.pdf
