Wix Filters Hydraulic Fluid Filter (MPN: 51529)

Durable cartridge filter for universal hydraulic applications

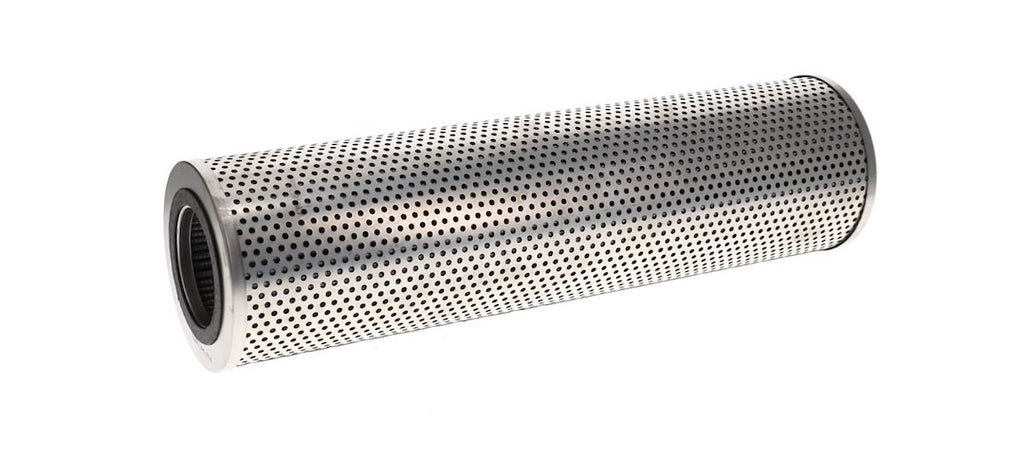

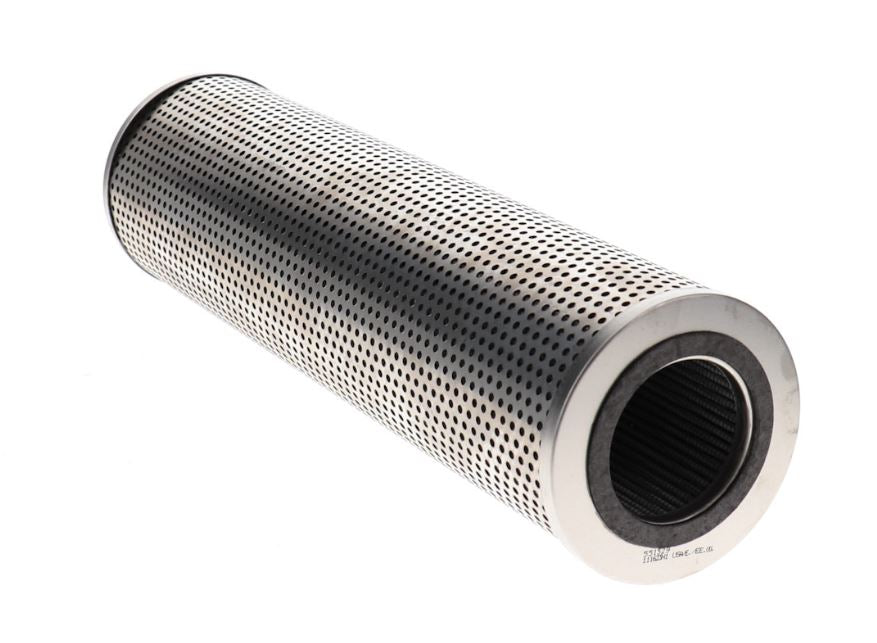

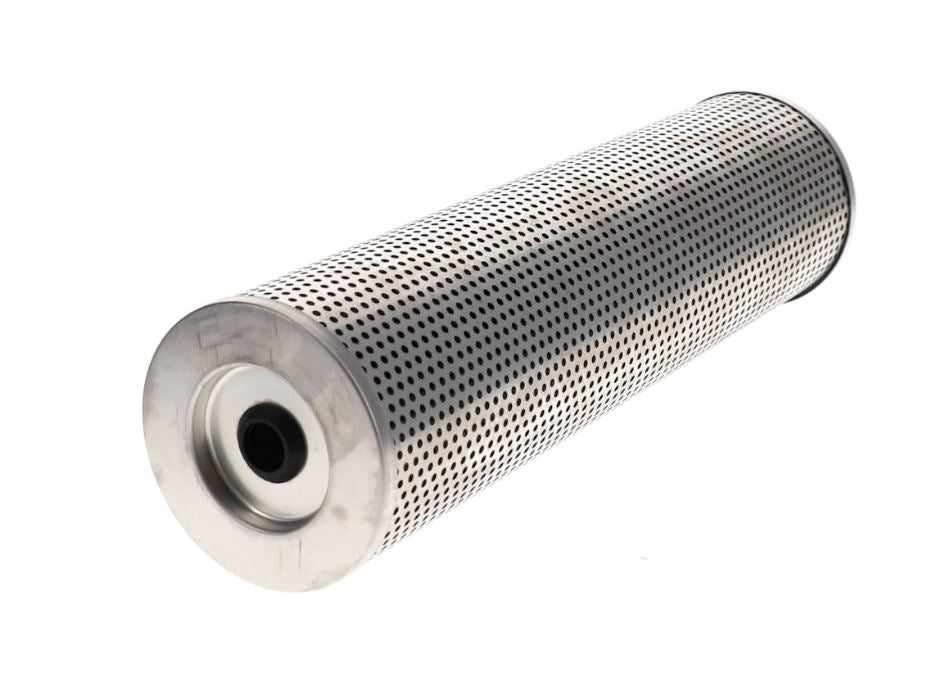

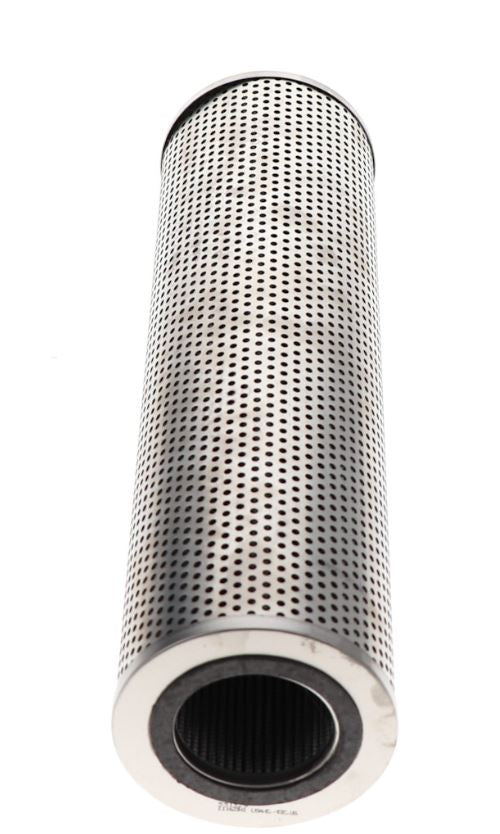

The Wix Filters Hydraulic Fluid Filter is designed for use in universal hydraulic applications, providing reliable filtration in demanding environments. With a cartridge style and robust construction, this filter measures 16 inches in height and 4.375 inches in outside diameter, ensuring compatibility with various systems. The 61 micron element effectively captures contaminants, maintaining optimal fluid cleanliness and system performance.

Constructed with thicker base plates, the filter offers consistent thread strength and easier engagement, while the sturdy element supports resist deformation under pressure and temperature fluctuations. The heavy-duty center tubes and cans are engineered to withstand a wide range of flow and pressure, enhancing durability and longevity. This filter incorporates high-tech media and advanced design features that surpass standard OE filters, ensuring superior filtration efficiency and reliability.

Features

• Thicker Base Plates (Standard 0.155 Inch Thickness) For Consistent Thread Strength, Easier Thread Engagement, Positive Inner-Element Support, And Consistent Gasket Compression
• Sturdy Element Supports Designed To Resist All Fluid Types, Vibration, And High And Low Temperatures, Which Will Not Deform Under Constant Spring-Load Pressure
• Heavy-Duty Center Tubes And Cans Which Can Withstand Exposure To A Wide Range In Flow And Pressure
• High Tech Media And Other Technological Improvements That Can Give Premium Filters The Edge Over OE Designs

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 51529
• Type: Cartridge
• Filter Material: Synthetic
• Dimensions: 16 Inch Height x 4-3/8 Inch Outside Diameter x 0.725 Inch Inside Diameter Top x 2.43 Inch Inside Dia
• Micron Rating: 61
• Pressure Rating: OEM
• Operating Temperature: -13 To 248 Degree Fahrenheit
• Quantity: Single
• Marine: Yes

Technical Documents

• ISO_Cleanliness_Code_English.pdf
