High performance filter for heavy machinery and equipment applications.

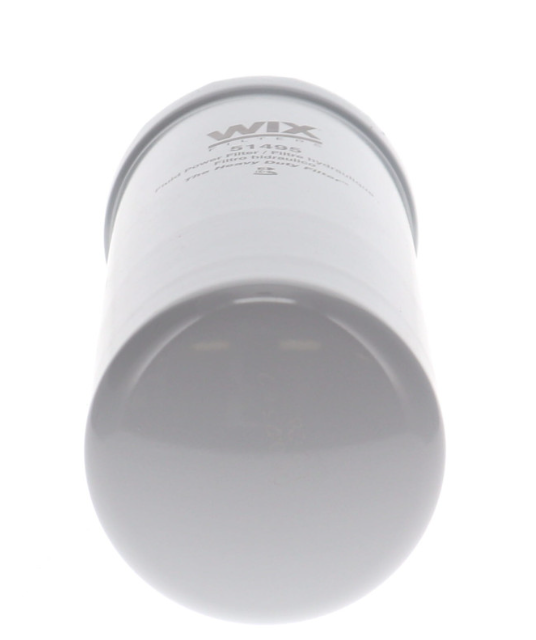

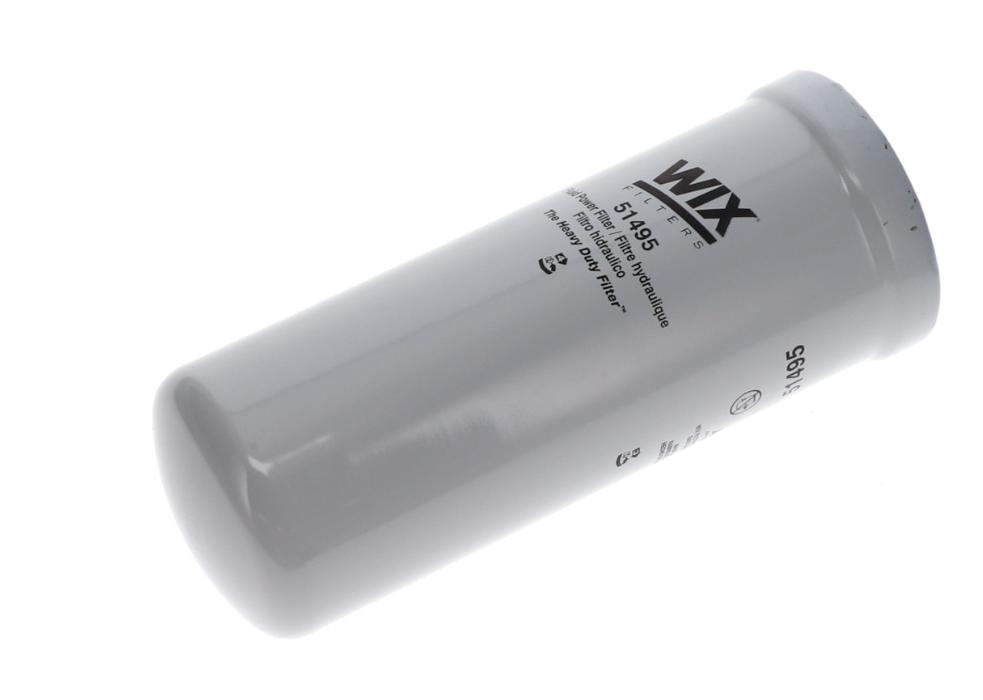

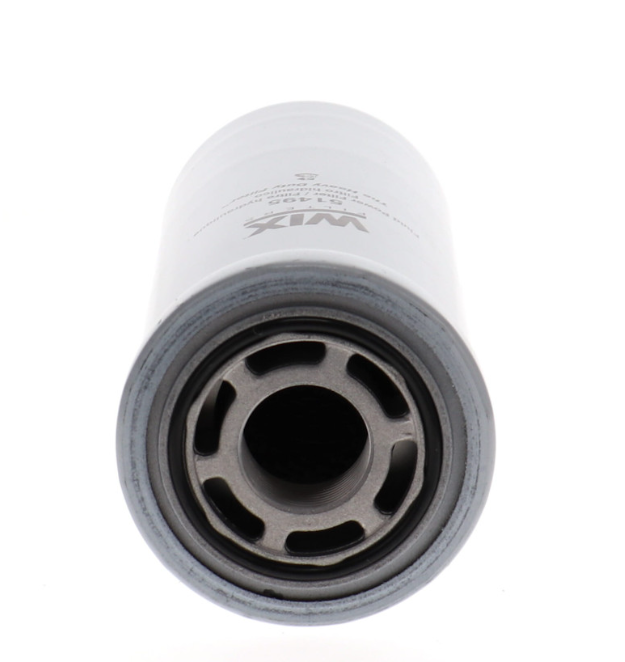

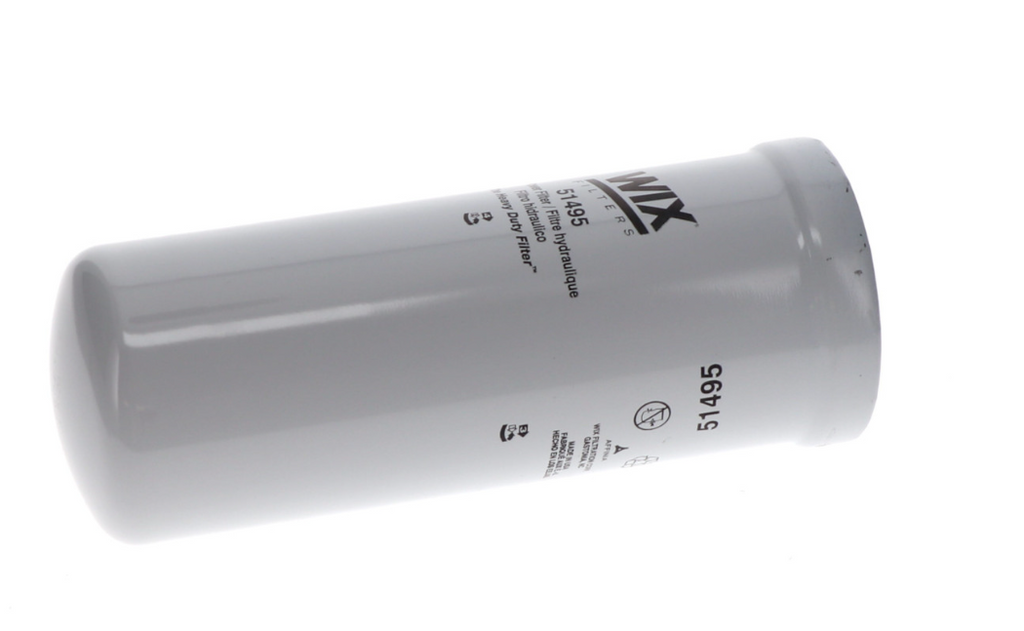

The Wix Filters Hydraulic Fluid Filter is designed for use with a variety of heavy machinery brands including Case, Cat, Fiat-Allis, John Deere, and Komatsu. This spin-on style filter features a height of 9.49 inches and an outside diameter of 3.81 inches, making it suitable for various hydraulic systems. With a burst pressure rating of 1000 PSI and a 17 micron filtration element, this filter ensures effective removal of contaminants from hydraulic fluids.
Engineered with advanced features such as Spin Flow Technology, the filter enhances its lifespan by directing heavy particles to the coarse filtration element. The angled fins facilitate the initial separation of larger particles, while the XD high-strength media captures sludge and larger debris. Additionally, the multi-density wire back media in the fine filtration element effectively traps finer particles, ensuring optimal performance and longevity.
Constructed with high-strength, corrosion-resistant materials, the Wix Filters Hydraulic Fluid Filter is built to withstand harsh operating conditions. It is recommended for OEM oil and filter change intervals, providing reliable protection for medium and heavy trucks, farm equipment, construction machinery, and mining applications. This filter operates efficiently within a temperature range of -13 to 248 degrees Fahrenheit, making it versatile for various environments.
Features
- “Spin Flow Technology” Designed To Increase Filter Life
- The Angled Fins Are Placed Where The Oil Enters The Filter To Start The Process Of Directing Heavy Particles To The Coarse Filtration Element In Order To Remove Them From The Oil
- XD High-Strength Media Will Trap The Larger Particles Being “spun” Down And Will Trap Media Clogging Sludge
- XD Multi–density Wire Back Media In The Fine Filtration Element To Trap Finer Particles And Last Longer
Specifications
- Manufacturer: Wix Filters
- Manufacturer Part Number: 51495
- Type: Spin-On
- Filter Material: Microglass
- Dimensions: 9.49 Inch Height x 3.81 Inch Outside Diameter Top
- Micron Rating: 17
- Pressure Rating: OEM
- Operating Temperature: -13 To 248 Degree Fahrenheit
- Quantity: Single
- Marine: Yes
