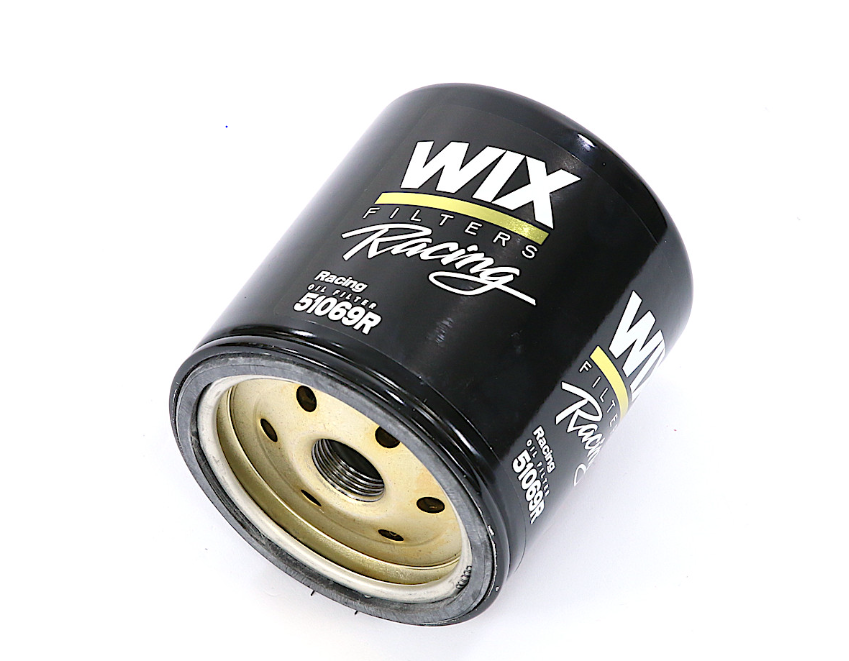

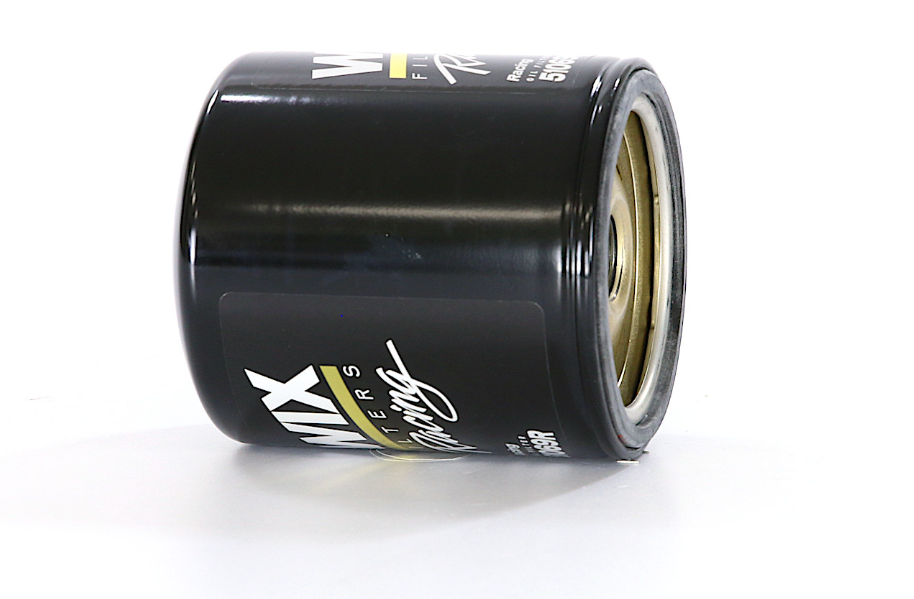

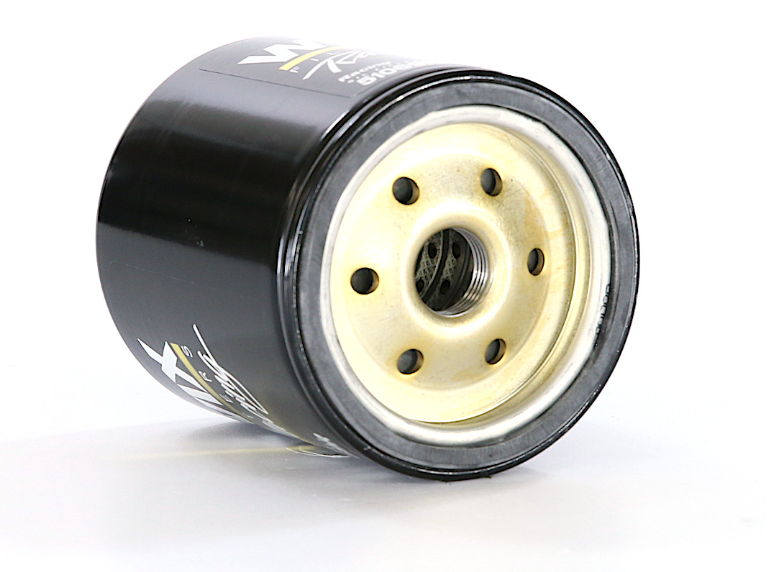

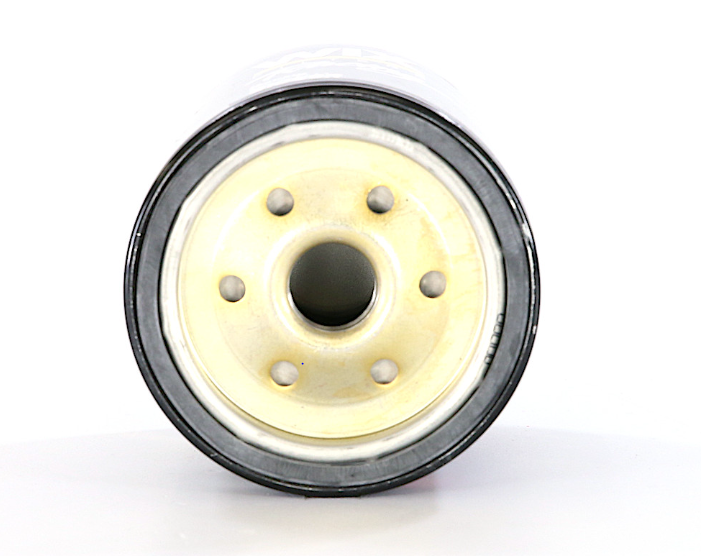

Wix Filters High Performance Oil Filter (MPN: 51069R)

Advanced filtration technology for high efficiency and durability in racing applications.

The Wix Filters High Performance Oil Filter is designed for optimal filtration in high-stress environments, particularly in racing applications. Utilizing a full flow paper media rated at approximately 75 Cubic Feet Per Minute, this filter effectively traps smaller contaminants, ensuring cleaner oil circulation. The heavy-walled can and cover are engineered to withstand extreme burst pressures, making it a reliable choice for high-performance engines.

This oil filter features high temperature nitrile baseplate gaskets that endure the elevated temperatures typical in racing scenarios. The zinc chromate-plated baseplate minimizes surface friction and resists corrosion, enhancing the filter's longevity. Additionally, the spiral-wound center tube increases collapse pressure and improves flow patterns, contributing to overall engine efficiency.

With metal end caps providing structural integrity and preventing filtering bypass, this filter is individually sealed to protect against contamination from environmental dust or dirt. The Wix Filters High Performance Oil Filter is a robust solution for those seeking high efficiency and endurance in their oil filtration system.

Features

• Heavy-Walled Can And Cover To Withstand The Extreme Burst Pressures
• High Temperature Nitrile Baseplate Gaskets Withstand Extremely High Racing Temperatures
• Zinc Chromate-Plated Baseplate Provides Low Surface Friction And Is Corrosion Free
• Spiral-Wound Center Tube Provides Increased Collapse Pressure And Enhanced Flow Pattern
• Metal End Caps Provide Element Strength And Prevent Filtering Bypass
• Individually Sealed To Protect Against Contamination By Environmental Dust Or Dirt

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 51069R
• Material: Paper
• Color: Black
• Micron Rating: OEM
• Type: Canister
• Diameter (IN): 3.6 Inch
• Height (IN): 4.33 Inch
• Anti-Drain Back Valve: No
• Filter Bypass Relief Valve: No
• Gasket Material: Rubber
• Estimated Install Time (Hours): 0.25
• Marine: Yes

Compatibility / Fit

• 1973-1975 Buick Apollo
• 1977-1980 Buick Century
• 1991-1993 Buick Commercial Chassis
• 1978-1978 Buick LeSabre
• 1977-1980 Buick Regal
• 1991-1993 Buick Roadmaster
• 1970-1971 Buick Skylark
• 1977-1979 Buick Skylark
• 1968-1969 Buick Special
• 1990-1992 Cadillac Brougham
• 1992-1993 Cadillac Commercial Chassis
• 1993-1993 Cadillac Fleetwood
• 1970-1974 Checker A11
• 1970-1974 Checker A11E
• 1969-1974 Checker Aerobus
• 1964-1964 Checker Marathon
• 1968-1981 Checker Marathon
• 1969-1974 Checker Taxicab
• 1963-1975 Chevrolet Bel Air
• 1963-1972 Chevrolet Biscayne
• 1969-1974 Chevrolet Blazer
• 1969-1970 Chevrolet Brookwood
• 1975-1984 Chevrolet C10
• 1963-1965 Chevrolet C10 Panel
• 1963-1974 Chevrolet C10 Pickup
• 1970-1975 Chevrolet C10 Suburban
• 1977-1979 Chevrolet C10 Suburban
• 1975-1986 Chevrolet C20
• 1963-1965 Chevrolet C20 Pickup
• 1970-1974 Chevrolet C20 Pickup
• 1970-1982 Chevrolet C20 Suburban
• 1975-1986 Chevrolet C30
• 1963-1965 Chevrolet C30 Panel
• 1963-1965 Chevrolet C30 Pickup
• 1970-1974 Chevrolet C30 Pickup
• 1967-1997 Chevrolet Camaro
• 1967-1993 Chevrolet Caprice
• 1964-1973 Chevrolet Chevelle
• 1962-1968 Chevrolet Chevy II
• 1968-1982 Chevrolet Corvette
• 1984-1991 Chevrolet Corvette
• 1964-1965 Chevrolet El Camino
• 1968-1968 Chevrolet El Camino
• 1970-1977 Chevrolet El Camino
• 1979-1987 Chevrolet El Camino
• 1969-1970 Chevrolet Estate
• 1975-1984 Chevrolet G10
• 1970-1974 Chevrolet G10 Van
• 1975-1984 Chevrolet G20
• 1970-1974 Chevrolet G20 Van
• 1975-1979 Chevrolet G30
• 1981-1984 Chevrolet G30
• 1970-1974 Chevrolet G30 Van
• 1963-1985 Chevrolet Impala
• 1975-1984 Chevrolet K10
• 1963-1974 Chevrolet K10 Pickup
• 1970-1979 Chevrolet K10 Suburban
• 1975-1986 Chevrolet K20
• 1963-1965 Chevrolet K20 Pickup
• 1970-1974 Chevrolet K20 Pickup
• 1970-1982 Chevrolet K20 Suburban
• 1977-1986 Chevrolet K30
• 1970-1974 Chevrolet K30 Pickup
• 1975-1982 Chevrolet K5 Blazer
• 1969-1972 Chevrolet Kingswood
• 1978-1983 Chevrolet Malibu
• 1970-1988 Chevrolet Monte Carlo
• 1975-1979 Chevrolet Monza
• 1969-1979 Chevrolet Nova
• 1975-1980 Chevrolet P10
• 1963-1967 Chevrolet P10 Series
• 1970-1974 Chevrolet P10 Van
• 1975-1989 Chevrolet P20
• 1963-1965 Chevrolet P20 Series
• 1970-1974 Chevrolet P20 Van
• 1975-1989 Chevrolet P30
• 1963-1965 Chevrolet P30 Series
• 1968-1974 Chevrolet P30 Van
• 1987-1987 Chevrolet R20
• 1987-1987 Chevrolet R30
• 1963-1965 Chevrolet Suburban
• 1969-1972 Chevrolet Townsman
• 1987-1987 Chevrolet V20
• 1987-1987 Chevrolet V30
• 1971-1977 Chevrolet Vega
• 1963-1965 GMC 1000 Series
• 1963-1965 GMC 1500 Series
• 1963-1965 GMC 2500 Series
• 1963-1965 GMC 3000
• 1963-1965 GMC 3500
• 1975-1978 GMC C15
• 1975-1978 GMC C15 Suburban
• 1967-1974 GMC C15/C1500 Pickup
• 1970-1974 GMC C15/C1500 Suburban
• 1979-1984 GMC C1500
• 1979-1979 GMC C1500 Suburban
• 1982-1982 GMC C1500 Suburban
• 1975-1978 GMC C25
• 1975-1978 GMC C25 Suburban
• 1970-1974 GMC C25/C2500 Pickup
• 1970-1974 GMC C25/C2500 Suburban
• 1979-1986 GMC C2500
• 1980-1980 GMC C2500 Suburban
• 1982-1982 GMC C2500 Suburban
• 1984-1984 GMC C2500 Suburban
• 1975-1978 GMC C35
• 1970-1974 GMC C35/C3500 Pickup
• 1979-1986 GMC C3500
• 1979-1987 GMC Caballero
• 1964-1966 GMC G1000 Series
• 1975-1978 GMC G15
• 1967-1974 GMC G15/G1500 Van
• 1979-1984 GMC G1500
• 1975-1978 GMC G25
• 1967-1974 GMC G25/G2500 Van
• 1979-1984 GMC G2500
• 1975-1978 GMC G35
• 1970-1974 GMC G35/G3500 Van
• 1979-1979 GMC G3500
• 1982-1984 GMC G3500
• 1964-1965 GMC I1000
• 1965-1965 GMC I1500
• 1965-1965 GMC I2500
• 1970-1982 GMC Jimmy
• 1975-1978 GMC K15
• 1975-1978 GMC K15 Suburban
• 1967-1974 GMC K15/K1500 Pickup
• 1970-1974 GMC K15/K1500 Suburban
• 1979-1984 GMC K1500
• 1979-1979 GMC K1500 Suburban
• 1982-1982 GMC K1500 Suburban
• 1975-1978 GMC K25
• 1975-1978 GMC K25 Suburban
• 1970-1974 GMC K25/K2500 Pickup
• 1970-1974 GMC K25/K2500 Suburban
• 1979-1986 GMC K2500
• 1980-1980 GMC K2500 Suburban
• 1982-1982 GMC K2500 Suburban
• 1984-1984 GMC K2500 Suburban
• 1977-1978 GMC K35
• 1970-1974 GMC K35/K3500 Pickup
• 1966-1966 GMC P1000
• 1975-1978 GMC P15
• 1967-1973 GMC P15/P1500 Van
• 1979-1980 GMC P1500
• 1975-1978 GMC P25
• 1970-1974 GMC P25/P2500 Van
• 1979-1987 GMC P2500
• 1989-1989 GMC P2500
• 1975-1978 GMC P35
• 1970-1974 GMC P35/P3500 Van
• 1979-1989 GMC P3500
• 1963-1966 GMC PB1000 Series
• 1963-1965 GMC PB1500 Series
• 1963-1965 GMC PB2500 Series
• 1987-1988 GMC R2500
• 1987-1988 GMC R3500
• 1971-1977 GMC Sprint
• 1963-1966 GMC Suburban
• 1987-1987 GMC V2500
• 1987-1988 GMC V3500
• 1977-1977 Oldsmobile Custom Cruiser
• 1991-1992 Oldsmobile Custom Cruiser
• 1967-1971 Oldsmobile Cutlass
• 1975-1976 Oldsmobile Cutlass
• 1978-1979 Oldsmobile Cutlass
• 1978-1980 Oldsmobile Cutlass Calais
• 1975-1976 Oldsmobile Cutlass Supreme
• 1978-1980 Oldsmobile Cutlass Supreme
• 1977-1977 Oldsmobile Delta 88
• 1966-1970 Oldsmobile F85
• 1973-1979 Oldsmobile Omega
• 1976-1979 Oldsmobile Starfire
• 1975-1977 Pontiac Astre
• 1983-1986 Pontiac Bonneville
• 1970-1997 Pontiac Firebird
• 1978-1980 Pontiac Grand Am
• 1978-1980 Pontiac Grand Prix
• 1983-1987 Pontiac Grand Prix
• 1970-1980 Pontiac LeMans
• 1983-1986 Pontiac Parisienne
• 1977-1979 Pontiac Phoenix
• 1976-1979 Pontiac Sunbird
• 1964-1965 Pontiac Tempest
• 1970-1970 Pontiac Tempest
• 1971-1977 Pontiac Ventura
• 1965-1966 Studebaker Commander
• 1965-1966 Studebaker Cruiser
• 1965-1966 Studebaker Daytona
• 1966-1966 Studebaker Wagonaire
