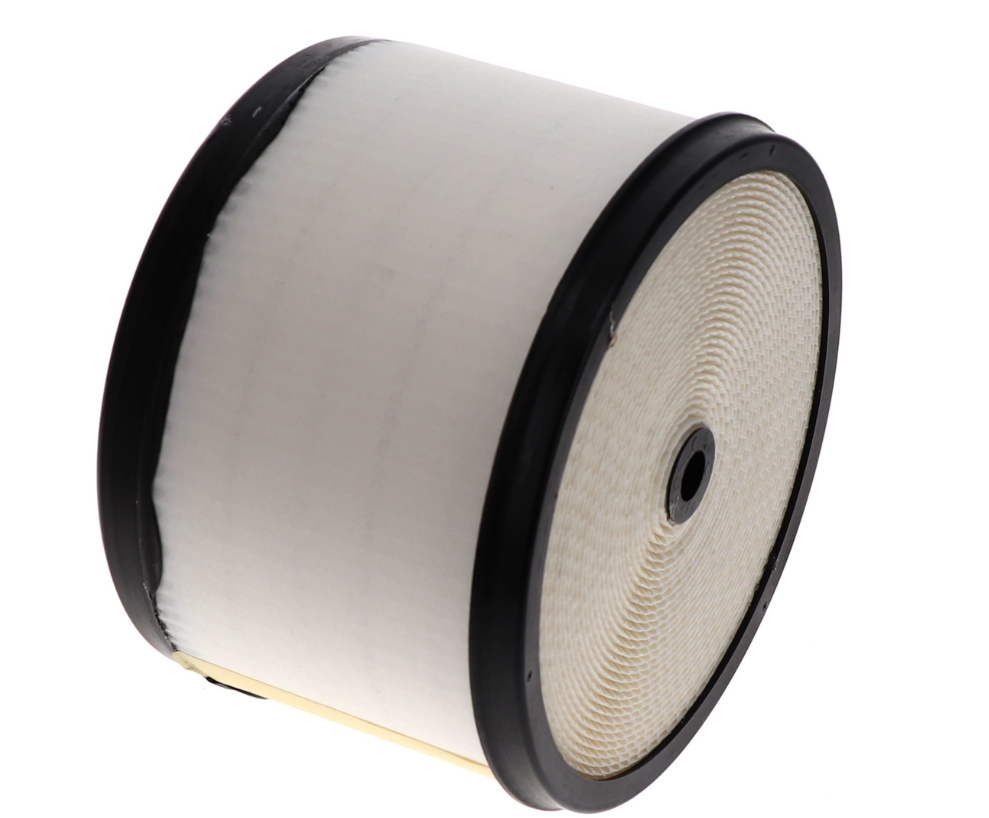

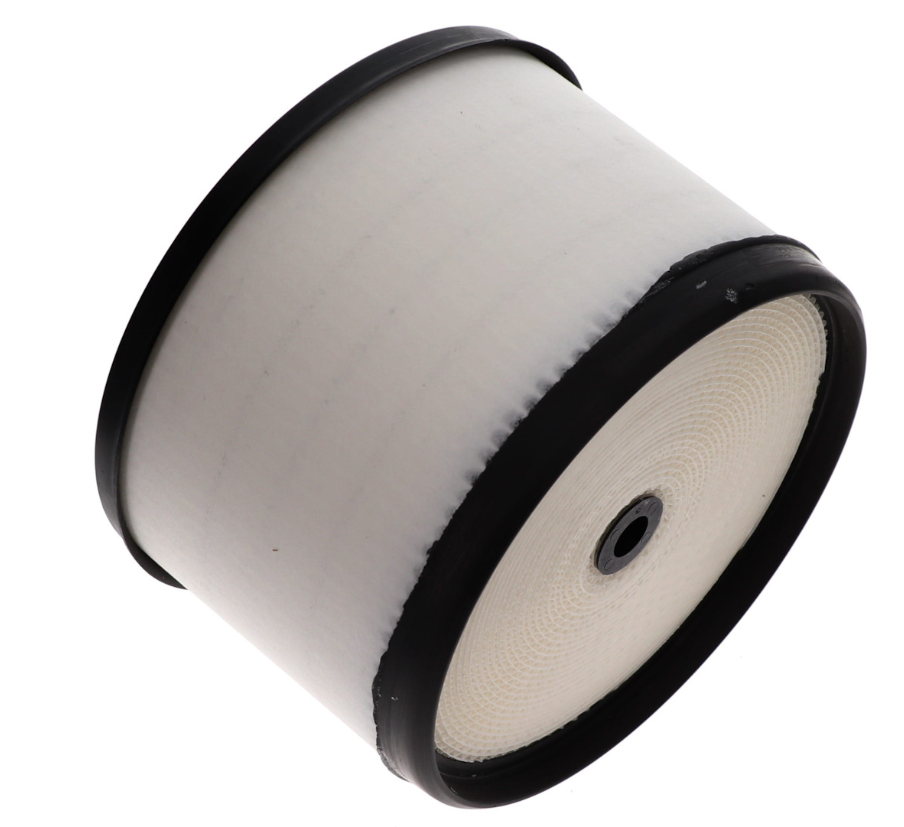

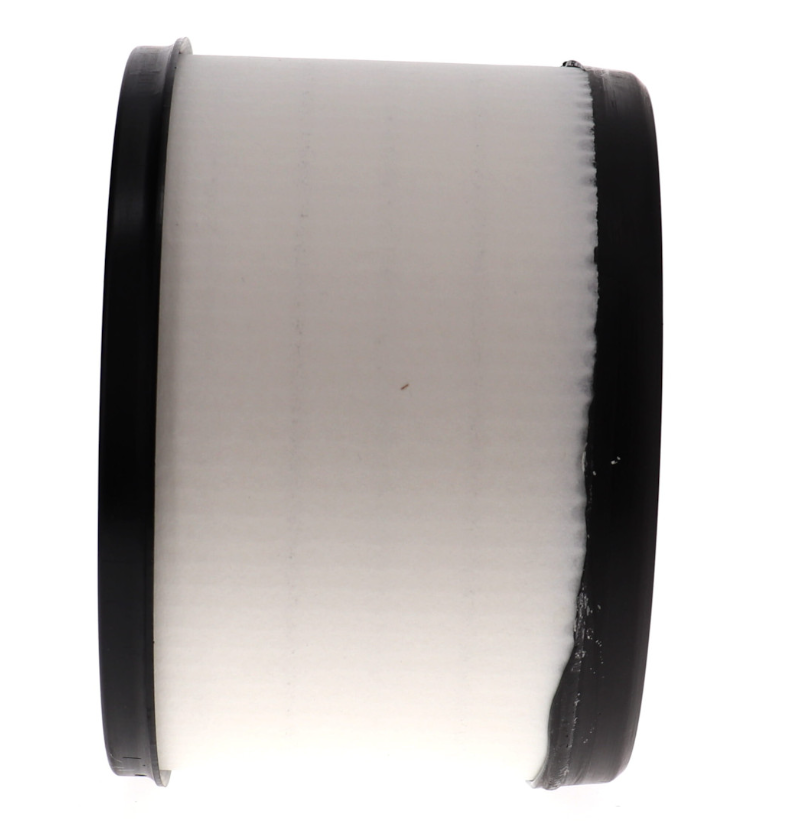

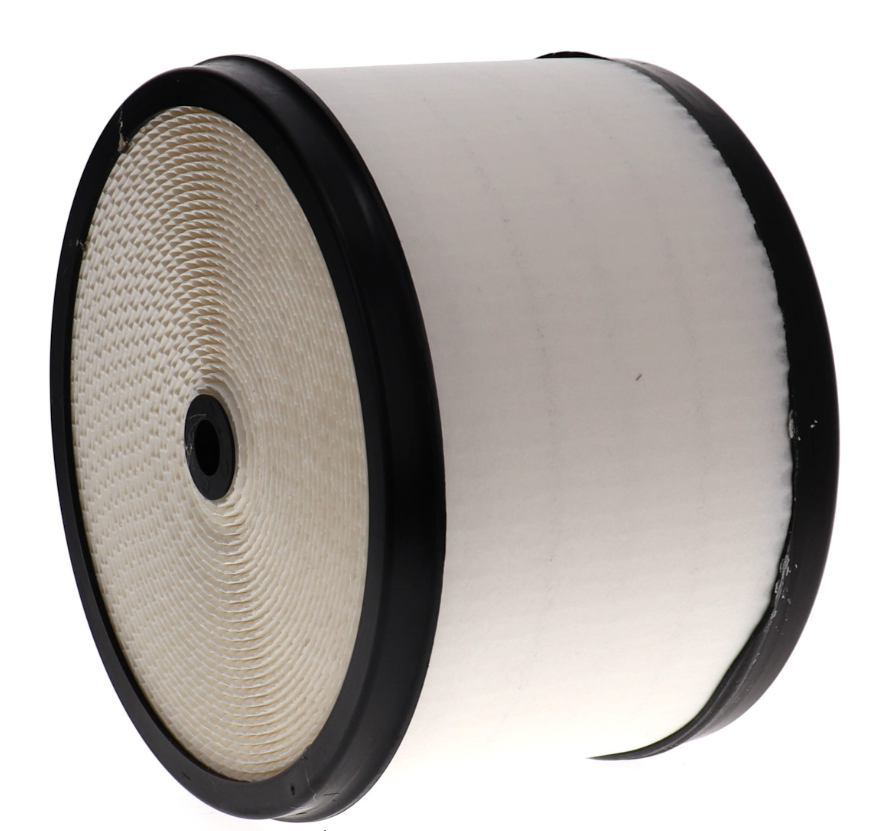

Wix Filters Air Filter (MPN: 49184)

High-efficiency air filter designed for optimal engine protection.

Wix Filters air filter is engineered to provide superior filtration for your engine, ensuring that harmful particles do not compromise performance. With a round design featuring an outside diameter of 8.91 inches and a height of 6.275 inches, this filter is built to fit OEM specifications. The filter media incorporates nine pleats per inch, enhancing its ability to capture contaminants such as soot, carbon, and abrasives that can lead to engine wear.

The construction of the Wix air filter includes a mesh screen on both the inside and outside walls, which adds strength and protects the media from backfire. Each filter is assembled using heat-resistant plastisol and specially designed seals that secure the top and bottom walls, along with an adhesive seal that joins the media ends. This robust design ensures longevity and reliability in various operating conditions.

By preventing foreign particles from entering the fuel mix, the Wix air filter plays a crucial role in maintaining engine efficiency and longevity. It is a disposable type filter made from high-quality paper material, ensuring effective filtration without the need for oiling. This air filter is an essential component for any engine seeking to optimize performance and reduce the risk of damage.

Features

• Air Filter Media Features Nine Pleats Per Inch, Resulting In A Longer Life And The Ability To Capture More Engine-Killing Contaminants
• Feature A Mesh Screen On The Inside And Outside Walls For Element Strength And Media Protection From Backfire
• Each Filter Is Held Together With Heat-Resistant Plastisol With Specially Designed Seals On The Top And Bottom Walls And An Adhesive Seal That Joins The Media Ends
• Preventing Foreign Particles Like Soot, Carbon And Abrasives From Entering The Fuel Mix

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 49184
• Shape: OEM
• Type: Disposable
• Height (IN): OEM
• Length (IN): OEM
• Width (IN): OEM
• Base Dimensions (IN): OEM
• Top Dimensions (IN): OEM
• Oiled: No
• Element Color: Yellow
• Element Material: Paper
• Flange Inside Diameter (IN): OEM
• Flange Length (IN): OEM
• Flange Angle (DEG): OEM
• Flange Offset (IN): OEM
• Cap Finish: Without Cap
• Cap Color: Without Cap
• Cap Material: Without Cap
• Includes Gasket: No
• Estimated Install Time (Hours): 0.5
• Marine: No

Compatibility / Fit

• 2006-2010 Chevrolet Silverado 2500 HD
• 2007-2007 Chevrolet Silverado 2500 HD Classic
• 2006-2006 Chevrolet Silverado 3500
• 2007-2007 Chevrolet Silverado 3500 Classic
• 2007-2010 Chevrolet Silverado 3500 HD
• 2006-2010 GMC Sierra 2500 HD
• 2007-2007 GMC Sierra 2500 HD Classic
• 2006-2006 GMC Sierra 3500
• 2007-2007 GMC Sierra 3500 Classic
• 2007-2010 GMC Sierra 3500 HD

Technical Documents

• 14-1020458rev-sheet.pdf
