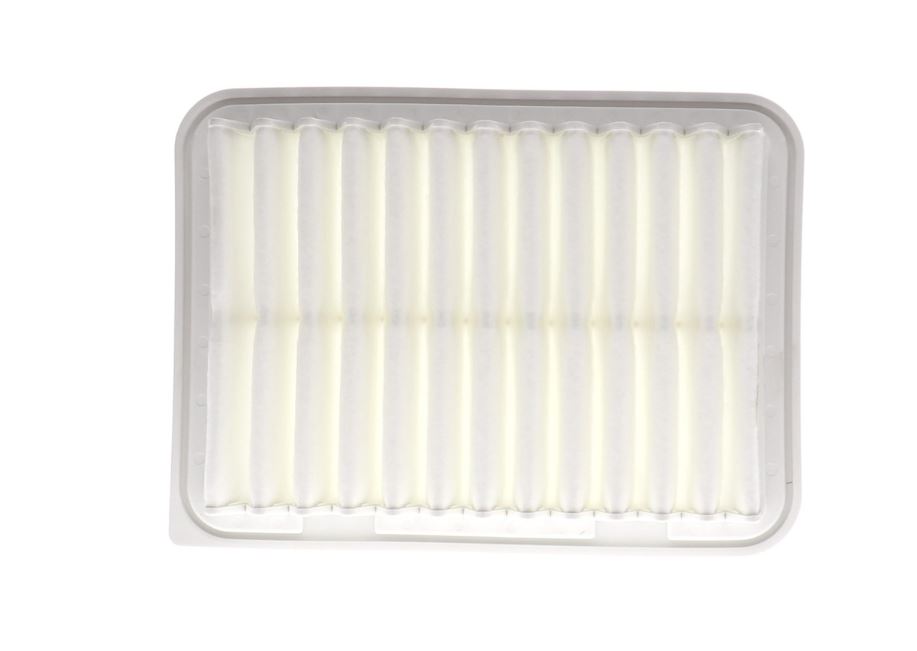

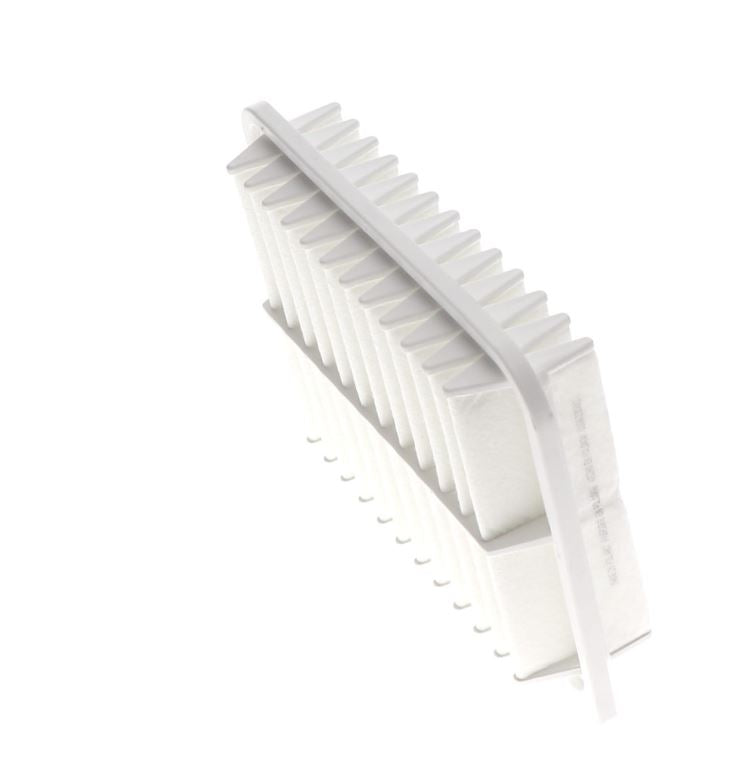

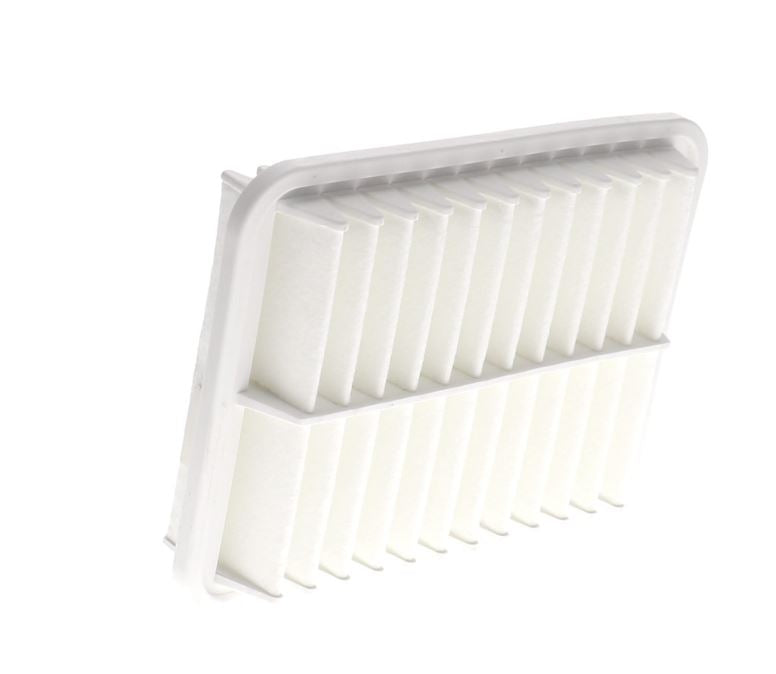

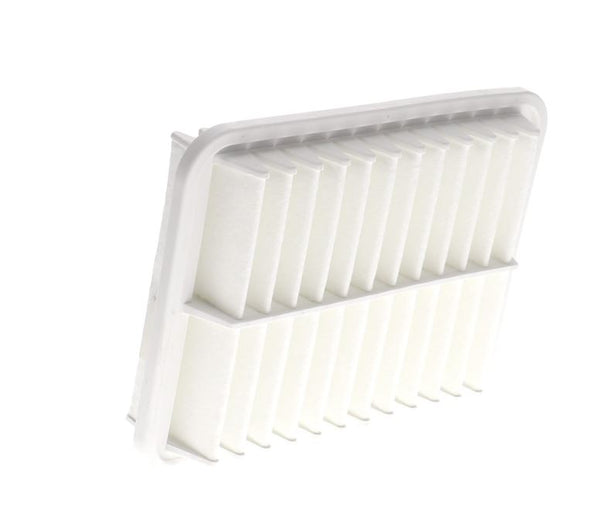

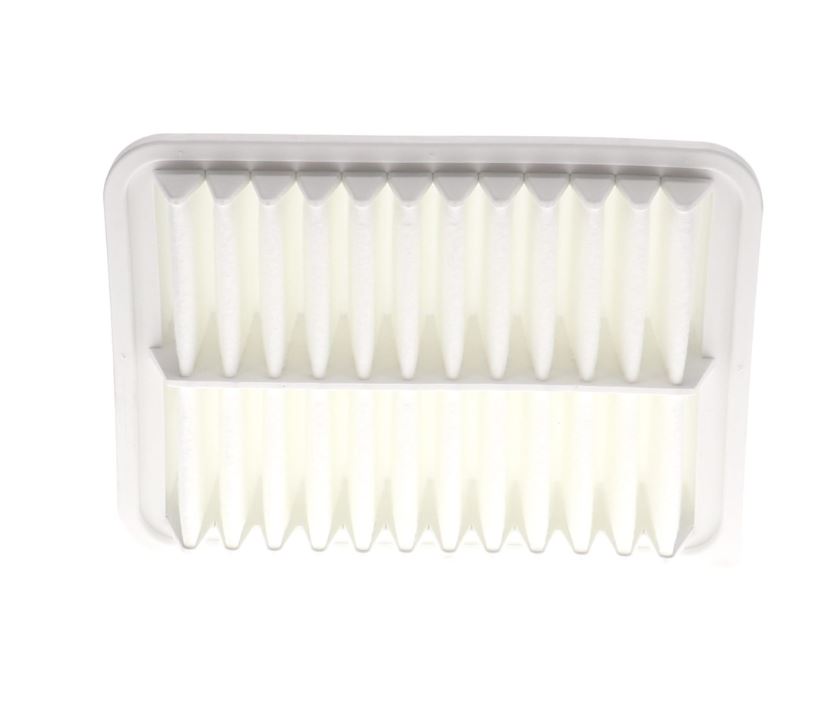

Wix Filters Air Filter (MPN: 49104)

High-efficiency air filter designed to protect your engine from contaminants.

Wix Filters air filter is engineered to ensure optimal engine performance by preventing harmful particles from entering the fuel mix. With a design that allows for up to 10,000 gallons of air to pass through for every gallon of fuel consumed, this filter plays a crucial role in maintaining engine integrity. The filter media features nine pleats per inch, enhancing its lifespan and ability to capture damaging contaminants such as soot and carbon.

The air filter provides a linear airflow path with low air restriction, promoting efficient engine operation. Its special pocket pleats are held together with a specially formulated adhesive, ensuring durability and effectiveness. The filter is framed by a urethane soft sealing gasket, which is molded in place to provide a secure fit and is supported by a mesh screen when applicable.

Constructed from synthetic materials, this disposable air filter is designed for OEM applications, making it a reliable choice for maintaining engine health. The white element color and robust construction contribute to its functionality, ensuring that even the smallest dust particles are filtered out to prevent premature engine wear.

Features

• Air Filter Media Features Nine Pleats Per Inch, Resulting In A Longer Life And The Ability To Capture More Engine-Killing Contaminants
• Provides Air With A Linear Path And Low Air Restriction
• Special Pocket Pleats In The Media, Held Together With Specially Formulated Adhesive
• The Filter Media Is Framed By A Urethane Soft Sealing Gasket And Is Supported (When Applicable) By A Mesh Screen, Which Are Both Molded In Place With The Filter Element

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 49104
• Shape: OEM
• Type: Disposable
• Height (IN): OEM
• Length (IN): OEM
• Width (IN): OEM
• Base Dimensions (IN): OEM
• Top Dimensions (IN): OEM
• Oiled: No
• Element Color: White
• Element Material: Synthetic
• Flange Inside Diameter (IN): OEM
• Flange Length (IN): OEM
• Flange Angle (DEG): OEM
• Flange Offset (IN): OEM
• Cap Finish: Without Cap
• Cap Color: Without Cap
• Cap Material: Without Cap
• Includes Gasket: No
• Estimated Install Time (Hours): 0.5
• Marine: No

Compatibility / Fit

• 2009-2010 Pontiac Vibe
• 2016-2016 Scion iM
• 2008-2014 Scion xD
• 2009-2019 Toyota Corolla
• 2017-2018 Toyota Corolla iM
• 2009-2013 Toyota Matrix
• 2007-2018 Toyota Yaris
