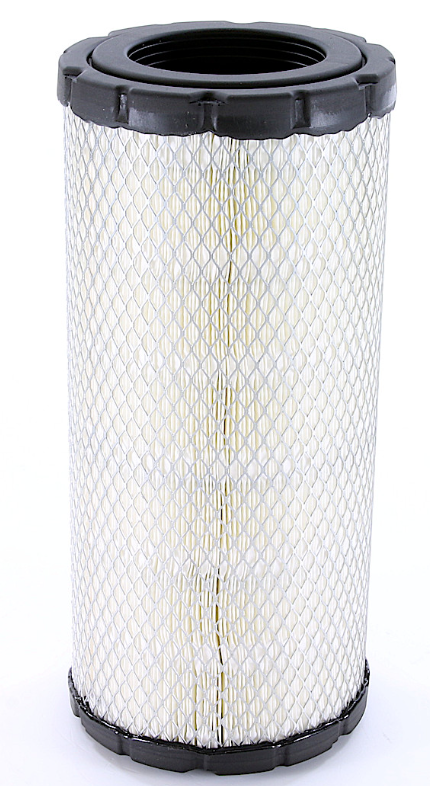

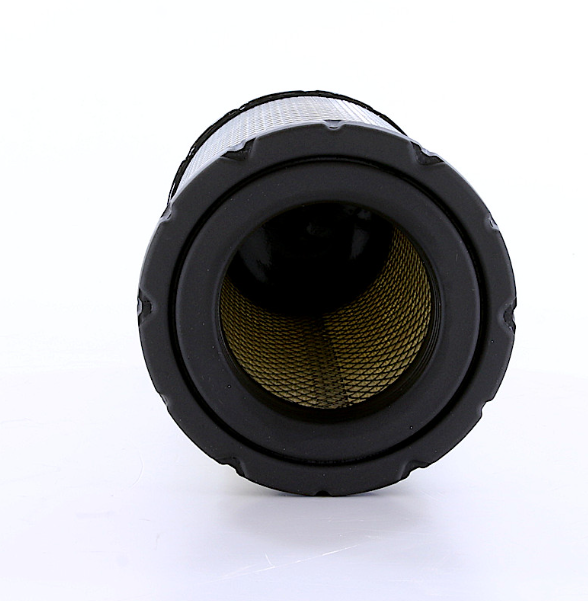

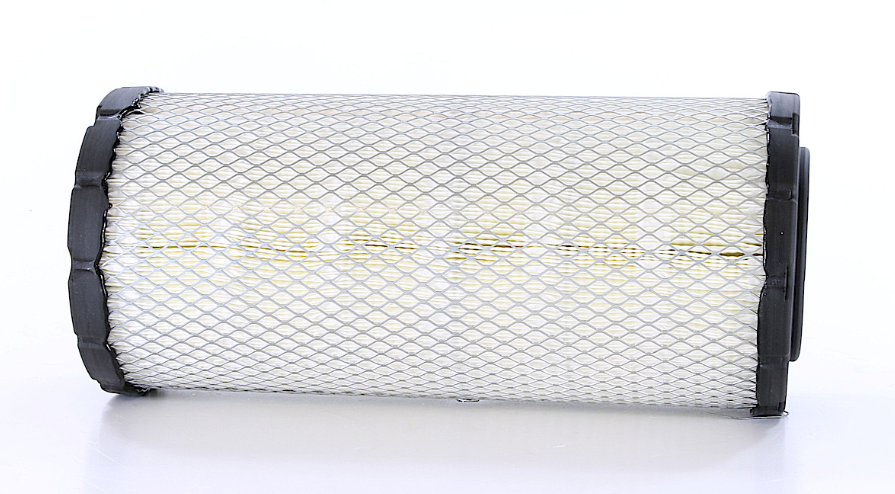

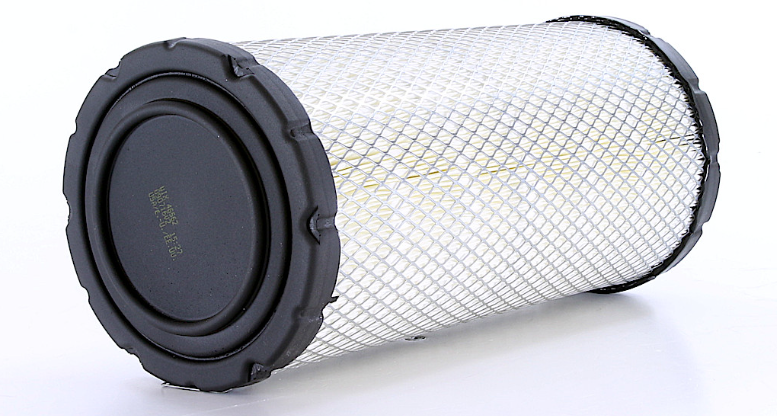

Wix Filters Air Filter (MPN: 46562)

High-efficiency air filter for various engine applications

The Wix Filters Air Filter is designed to provide superior filtration for a range of engines including Atlas-Copco, Case, Cat, I-R, John Deere, M-F, and New Holland. With a height of 13.9 inches and an outer diameter of 6.38 inches, this filter features a radial seal design that ensures a secure fit and optimal performance. The filter media is engineered with nine pleats per inch, enhancing its ability to capture harmful contaminants while extending its lifespan.

Constructed with high-strength corrosion-resistant end caps and an expanded metal body, this air filter is built for durability and longevity. The inclusion of a mesh screen on both the inside and outside walls provides additional strength and protects the media from backfire. Each filter is assembled using heat-resistant plastisol and specially designed seals, ensuring a reliable barrier against foreign particles such as soot, carbon, and abrasives.

Laboratory tests conducted per ISO 5011 demonstrate a minimum efficiency of 99.9 percent in contaminant removal, making this air filter a critical component in maintaining engine performance. Recommended for OEM air filter change intervals, the Wix Filters Air Filter is a dependable choice for those seeking to enhance engine protection and efficiency.

Features

• Air Filter Media Features Nine Pleats Per Inch, Resulting In A Longer Life And The Ability To Capture More Engine-Killing Contaminants
• Feature A Mesh Screen On The Inside And Outside Walls For Element Strength And Media Protection From Backfire
• Each Filter Is Held Together With Heat-Resistant Plastisol With Specially Designed Seals On The Top And Bottom Walls And An Adhesive Seal That Joins The Media Ends
• Preventing Foreign Particles Like Soot, Carbon And Abrasives From Entering The Fuel Mix

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 46562
• Shape: OEM
• Type: Disposable
• Height (IN): OEM
• Length (IN): OEM
• Width (IN): OEM
• Base Dimensions (IN): OEM
• Top Dimensions (IN): OEM
• Oiled: No
• Element Color: White
• Element Material: Cellulose
• Flange Inside Diameter (IN): OEM
• Flange Length (IN): OEM
• Flange Angle (DEG): OEM
• Flange Offset (IN): OEM
• Cap Color: Black
• Cap Material: Plastic
• Includes Gasket: No
• Estimated Install Time (Hours): 0.5
• Marine: No

Technical Documents

• Radial_Style_Seals_-_English.pdf
