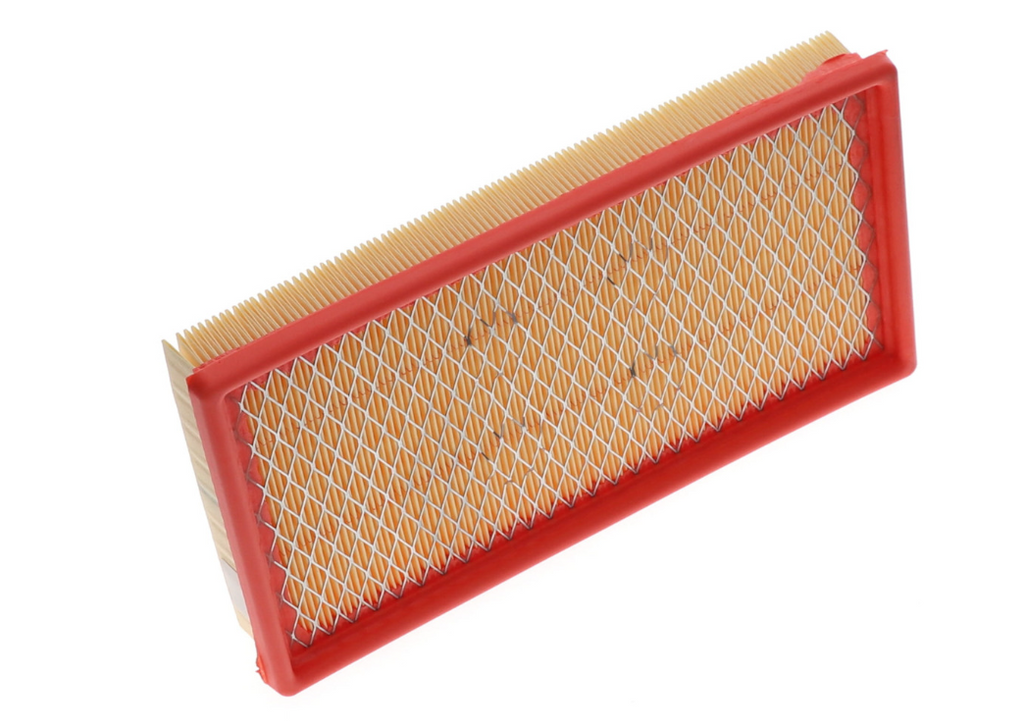

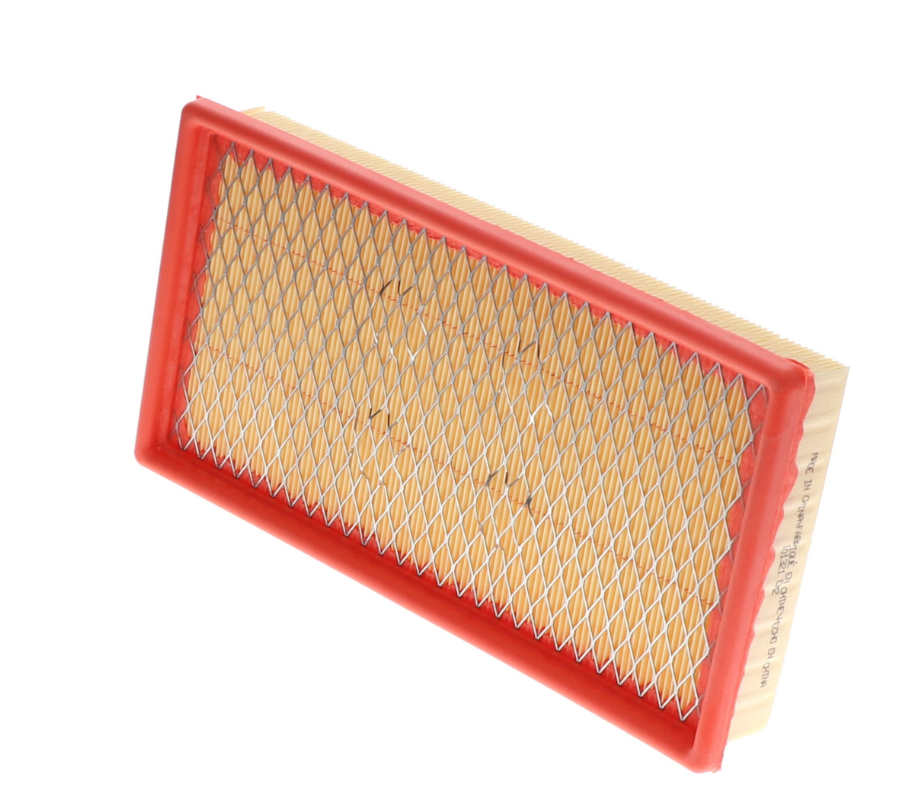

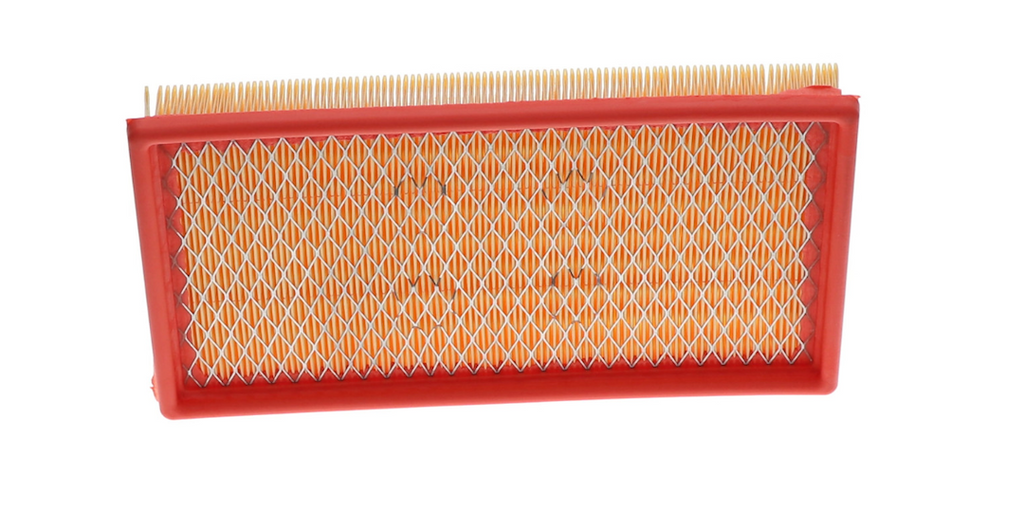

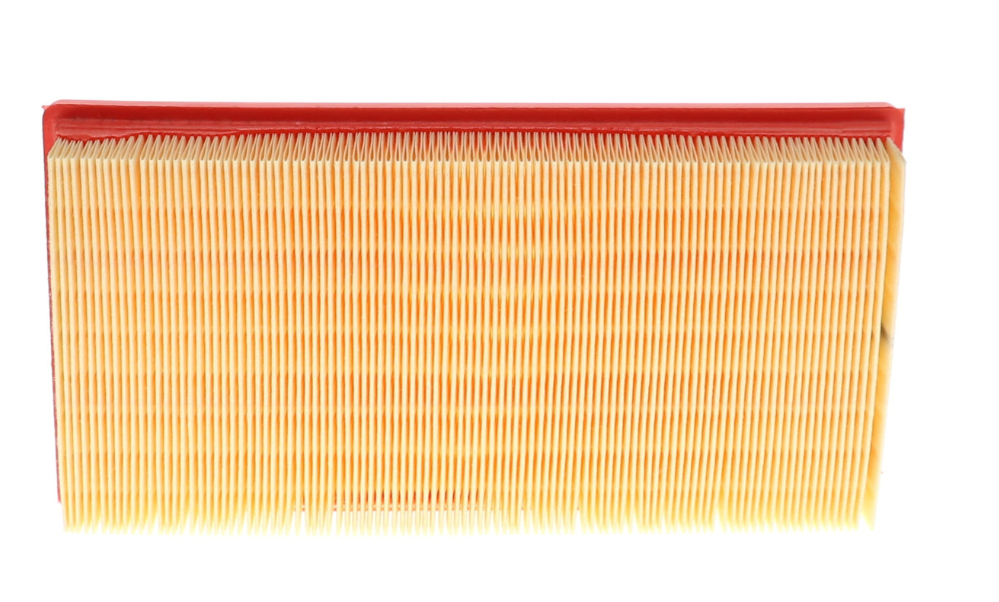

Wix Filters Air Filter (MPN: 46117)

High-efficiency air filter designed to protect your engine.

Wix Filters air filter is engineered to provide superior filtration for your engine, ensuring that harmful particles do not enter the fuel mix. With a length of 11.563 inches, width of 6.05 inches, and height of 1.66 inches, this disposable air filter features nine pleats per inch, which enhances its lifespan and ability to capture contaminants that can cause engine damage. The filter media is designed with special pocket pleats, held together with a specially formulated adhesive, allowing for a linear airflow path and reduced air restriction.

The filter is framed by a urethane soft sealing gasket, which ensures a tight fit and optimal performance. Additionally, when applicable, a mesh screen supports the filter media, providing strength and protection against backfire. Each element is constructed with heat-resistant plastisol and features specially designed seals on both the top and bottom walls, ensuring durability and reliability in various operating conditions. This air filter is a critical component in maintaining engine efficiency and longevity.

Features

• Air Filter Media Features Nine Pleats Per Inch, Resulting In A Longer Life And The Ability To Capture More Engine-Killing Contaminants
• Provides Air With A Linear Path And Low Air Restriction
• Special Pocket Pleats In The Media, Held Together With Specially Formulated Adhesive
• The Filter Media Is Framed By A Urethane Soft Sealing Gasket And Is Supported (When Applicable) By A Mesh Screen, Which Are Both Molded In Place With The Filter Element

Specifications

• Manufacturer: Wix Filters
• Manufacturer Part Number: 46117
• Shape: OEM
• Type: Disposable
• Height (IN): OEM
• Length (IN): OEM
• Width (IN): OEM
• Base Dimensions (IN): OEM
• Top Dimensions (IN): OEM
• Oiled: No
• Element Color: Tan
• Element Material: Paper
• Flange Inside Diameter (IN): OEM
• Flange Length (IN): OEM
• Flange Angle (DEG): OEM
• Flange Offset (IN): OEM
• Cap Finish: Without Cap
• Cap Color: Without Cap
• Cap Material: Without Cap
• Includes Gasket: No
• Estimated Install Time (Hours): 0.5
• Marine: No

Compatibility / Fit

• 1992-2005 Chevrolet Astro
• 1995-2005 Chevrolet Blazer
• 1993-1997 Chevrolet Camaro
• 1992-2004 Chevrolet S10
• 1992-1994 Chevrolet S10 Blazer
• 1992-2001 GMC Jimmy
• 1992-2005 GMC Safari
• 1992-2004 GMC Sonoma
• 1991-1991 GMC Syclone
• 1992-1993 GMC Typhoon
• 1996-2000 Isuzu Hombre
• 1992-1994 Oldsmobile Bravada
• 1996-2001 Oldsmobile Bravada
• 1993-1997 Pontiac Firebird
