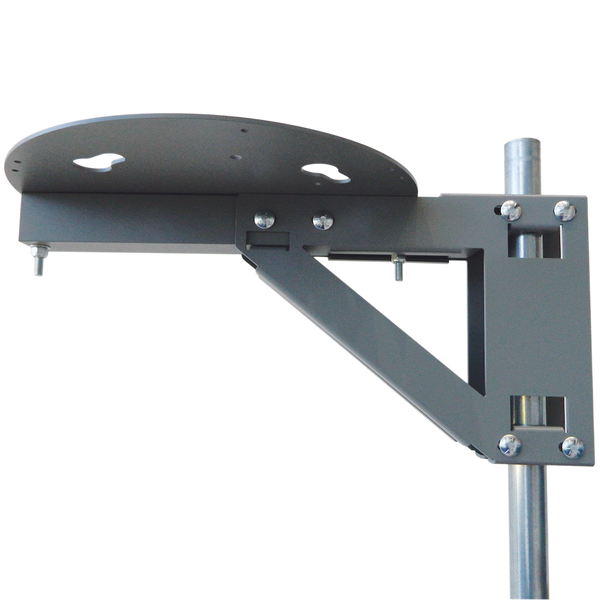

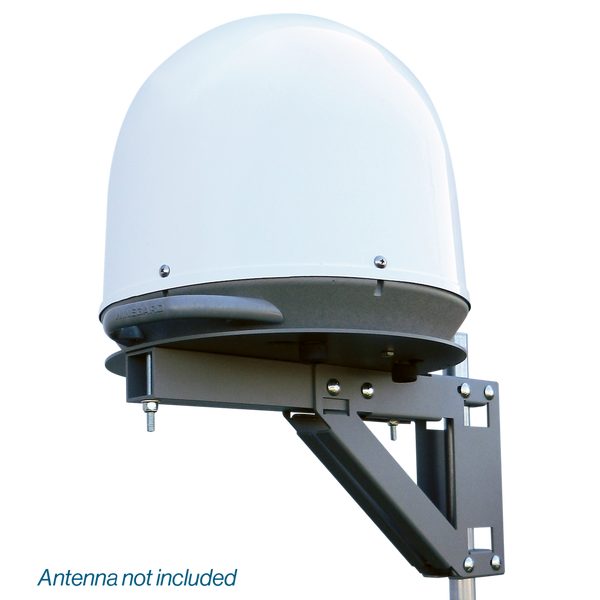

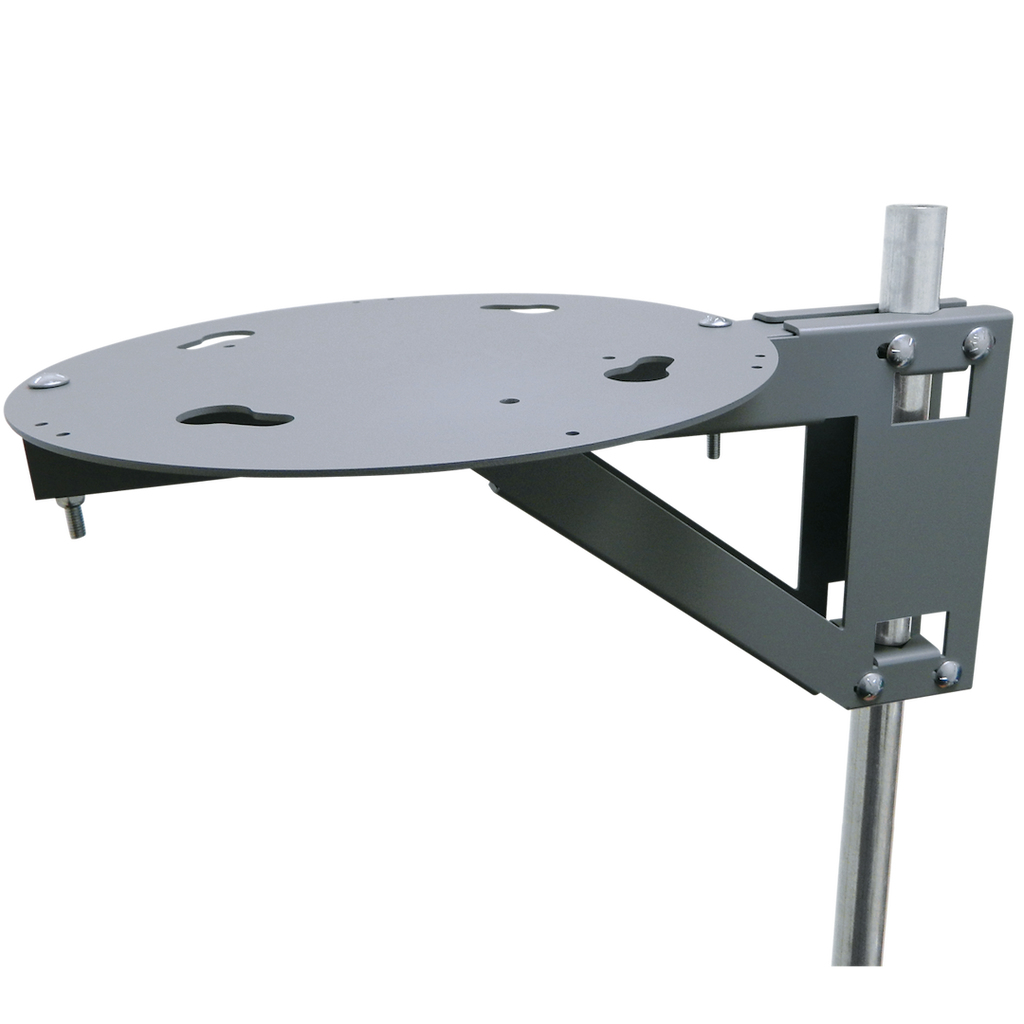

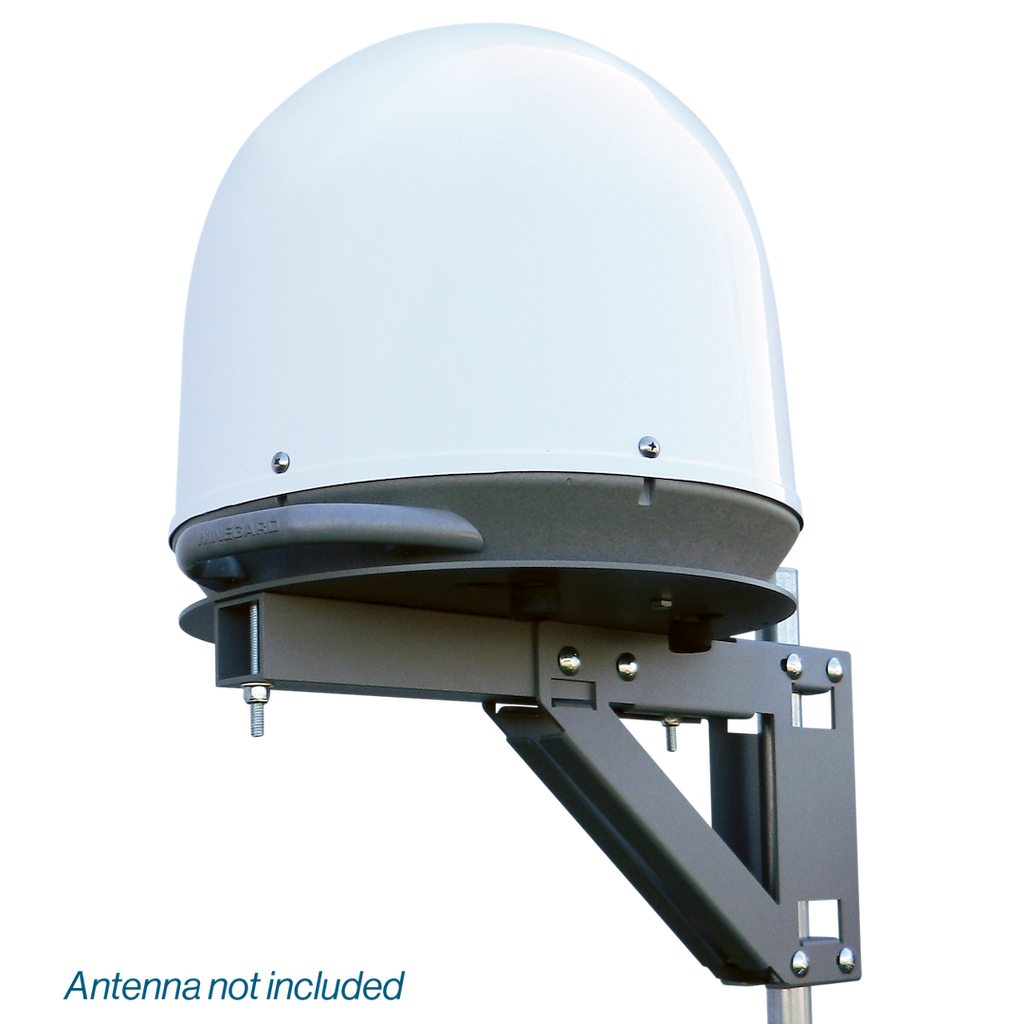

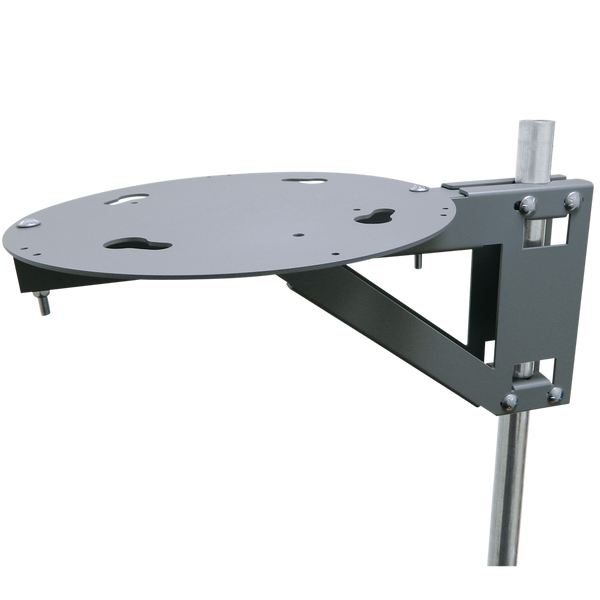

Winegard Satellite TV Antenna Ladder Mount (MPN: MT-4000)

Versatile ladder mount for enhanced satellite reception and portability.

The Winegard Satellite TV Antenna Ladder Mount is engineered for compatibility with Carryout G2, G2+, and Pathway X1 antennas, providing a reliable solution for both temporary and permanent installations. This mount extends from 19-1/2 inches to 23-1/2 inches in height, allowing for three adjustable settings to optimize the antenna's elevation and improve reception by raising it above ground level obstructions.

Constructed with a weather-resistant powder coating, the mount ensures durability and longevity in various outdoor conditions. Its quick disconnect feature allows for easy removal of the antenna, making it convenient for transport or ground placement. The assembly process is straightforward, catering to users who require flexibility in their installation options.

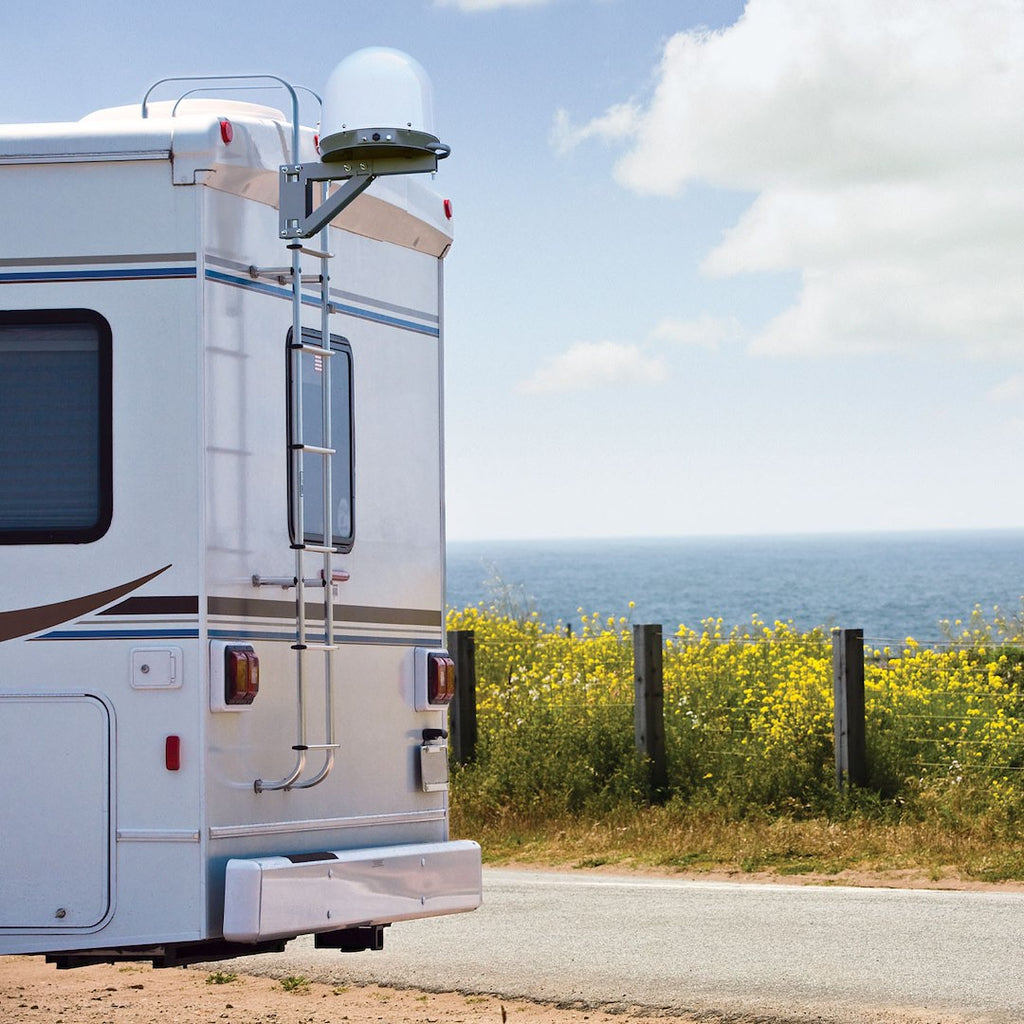

Designed specifically for RV use, this ladder mount combines the benefits of an ultra low profile roof-mounted antenna with the added advantage of portability. With a maximum weight capacity of 20 pounds for the antenna, it supports a robust setup while maintaining stability and ease of use.

Features

• Creates All The Benefits Of An Ultra Low Profile Roof Mounted Antenna Plus Quick And Easy Portability
• Raises Satellite TV Antenna Above Ground Level Obstructions
• Compatible With Carryout G2 And Pathway X1 Antennas
• Designed For RV Use
• Easy Assembly For Temporary Or Permanent Installation

Specifications

• Manufacturer: Winegard
• Manufacturer Part Number: MT-4000
• Compatibility: Carryout G2 And Pathway X1 Antennas
• Type: Temporary Installation
• Mounting Location: Ladder Mount
• Adjustable Height (IN): 19-1/2 Inch To 23-1/2 Inch
• Color: Gray
• Maximum Weight (LB): 9.1 Pound Ladder Mount/ 20 Pound Antenna Installed
• With Mounting Hardware: Yes

Technical Documents

• 1_Year_Warranty.pdf
• 2452358.pdf
• 2452358.pdf
• 2452358_fr.pdf
• 2452358_sp.pdf
