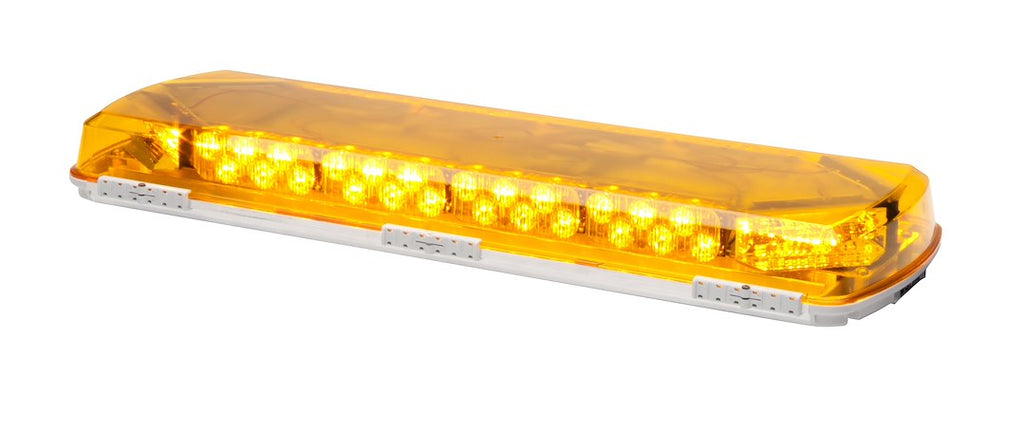

Whelen Mini Century LED Lightbar (MPN: MC23PM)

Compact and efficient warning light with versatile features for reliable performance.

The Whelen Mini Century LED lightbar is a compact and efficient warning light designed for permanent mounting. Measuring 23 inches in length, this lightbar features a clear lens and is equipped with 17 Scan-Lock flash patterns, providing a variety of signaling options. The lightbar is constructed with an extruded aluminum platform, ensuring long-lasting reliability and durability in various environmental conditions.

This model includes fully populated, preconfigured lightbars with four corner linear-LED modules and additional TIR6 inboard modules based on the length. The hard-coated lenses are designed to minimize damage from environmental factors such as sand, sun, salt, and road chemicals. The compression fit gasket enhances moisture resistance, making it suitable for diverse applications.

The Mini Century lightbar is easy to operate and service, featuring a Clip-Lock system that allows for the easy removal of lightbar domes without compromising the weather-resistant seal. With a standard current switching system, it is compatible with a 12 Volt DC power supply, making it a versatile choice for various vehicles.

Features

• Fully Populated, Preconfigured Lightbars
• Four Corner Linear-LED Modules
• Two, Four, Or Eight TIR6 Inboard Modules Based On Length
• Hard-Coated Lenses Minimize Environmental Damage From Sand, Sun, Salt, And Road Chemicals
• Permanent Mount Models Are Supplied With A 12 Inch Pigtail
• Standard Current Switching With 17 Scan-Lock Flash Patterns And Pattern Override
• Clip-Lock System Allows Easy Removal Of Lightbar Domes For Service, Without Compromising The Weather Resistant Seal
• Extruded Aluminum Platform For Long Life Reliability
• Compression Fit Gasket Provides Superior Moisture Resistance

Specifications

• Manufacturer: Whelen Engineering Company
• Manufacturer Part Number: MC23PM
• Shape: Rectangular
• Length (IN): 23 Inch
• Width (IN): 7-3/4 Inch
• Height (IN): 2-3/8 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: Permanent Mount
• Lens Color: Clear
• Light Pattern: 17 Scan-Lock Flash Pattern
• Power Supply: 12 Volt
• Wire Length (FT): 1 Feet
• With Cigarette Lighter Plug: Yes
• Mounting Strap Material: No Mounting Straps
• Includes Gaskets: No
