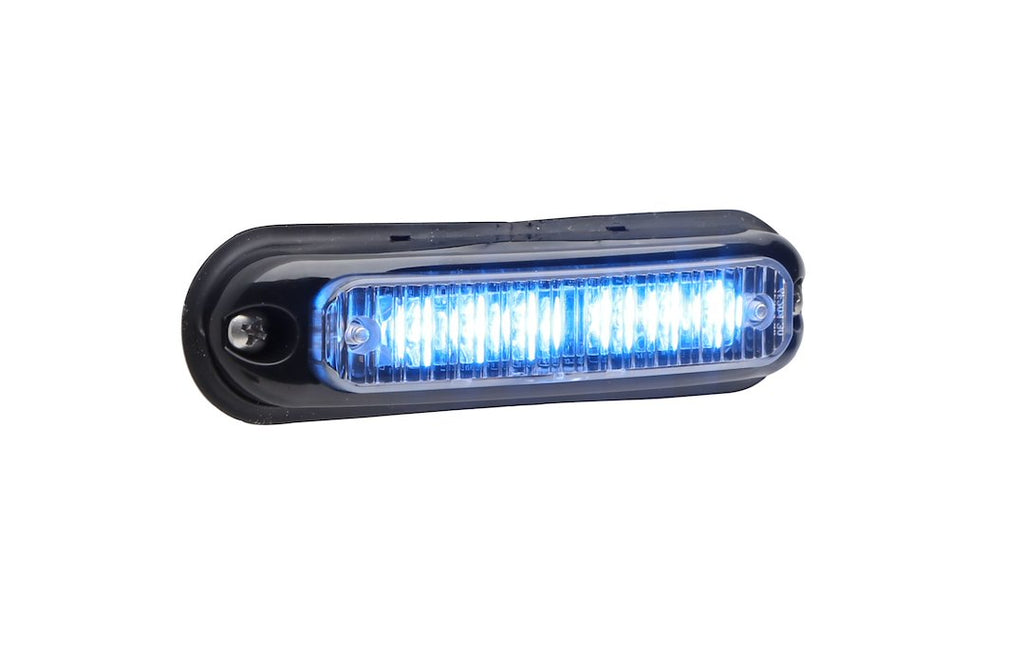

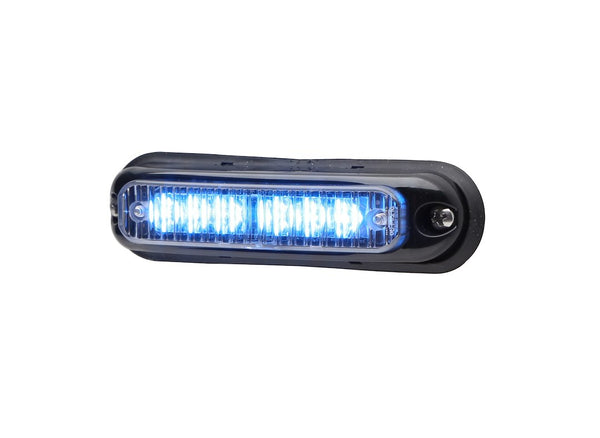

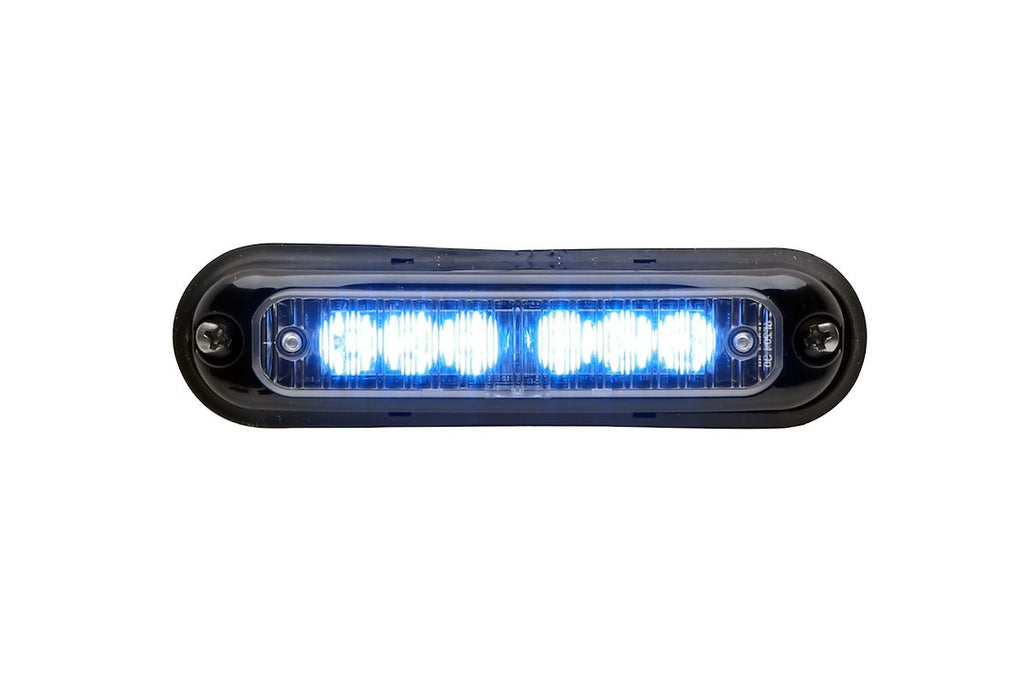

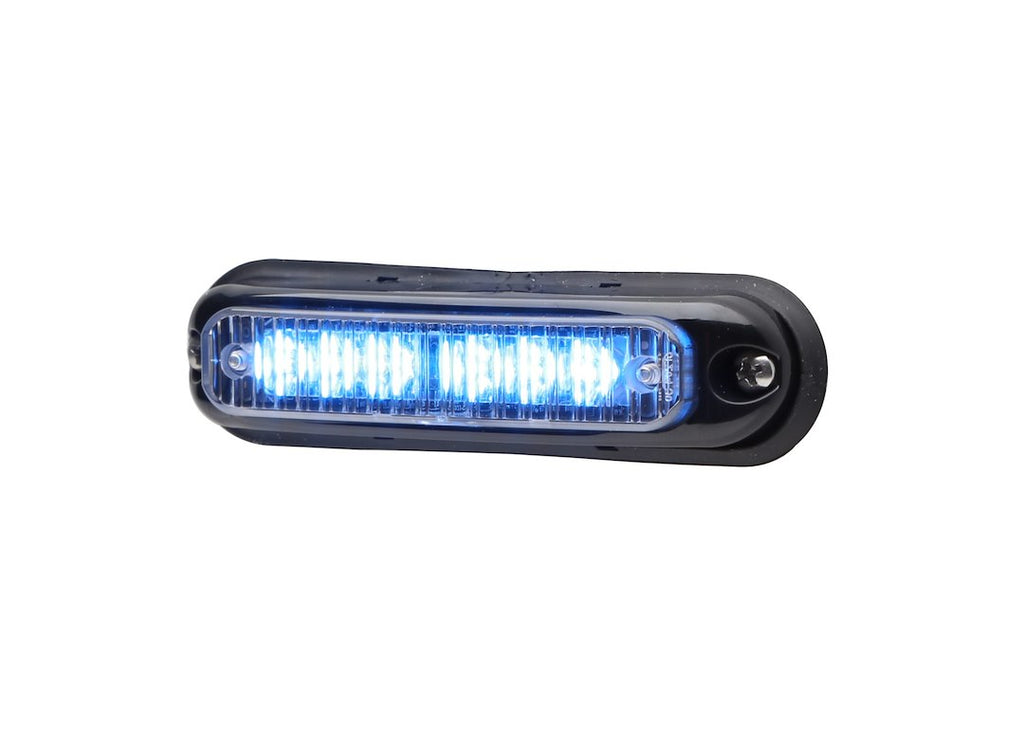

Whelen Micron LED Warning Light (MPN: MCRNSBX)

Compact design with multiple flash patterns for versatile applications.

The Whelen Micron LED Warning Light is a compact lighting solution measuring 4.04 inches in length and 0.825 inches in width, designed for surface mounting in various applications. This light features a smoked lens and offers 25 Scan-Lock flash patterns, providing flexibility in signaling and visibility. Constructed with hard-coated lenses, it resists environmental damage from elements such as sand, sun, salt, and road chemicals, ensuring durability in harsh conditions.

The Micron Series light head is equipped with a 6-inch 4-wire pigtail cable for easy connectivity and can synchronize with other Whelen sync products for coordinated lighting effects. Installation is straightforward, requiring only two screws for surface mounting, and it comes with both black and chrome flange options. Operating at 12.8 volts DC, this LED warning light meets SAE J845, SAE J595, KKK-1822F, and California Title XIII certification standards, making it a reliable choice for emergency and warning applications.

Features

• Directional Light Pattern
• Black Or Chrome Flange Provided With Surface Mount
• 25 Scan-Lock Flash Patterns
• Hard-Coated Lenses Resist Environmental Damage From Sand, Sun, Salt, And Road Chemicals
• 6 Inch 4-Wire Pigtail Cable Provided
• Synchronizes To Other Whelen Sync Products
• Surface Mount Via 2 Screws For Easy Installation

Specifications

• Manufacturer: Whelen Engineering Company
• Manufacturer Part Number: MCRNSBX
• Shape: Oval
• Length (IN): Not Applicable
• Width (IN): Not Applicable
• Height (IN): 0.89 Inch
• Diameter (IN): 4.04 Inch Length X 0.825 Inch Width
• Style: Mini Bar
• Type: LED
• Mount Type: Surface Mount
• Lens Color: Smoke
• Light Pattern: 25 Scan-Lock Flash Pattern
• Power Supply: 12.8 Volt
• With Cigarette Lighter Plug: No
• Mounting Strap Material: No Mounting Straps
• Includes Gaskets: No

Technical Documents

• whelen_warranty.pdf
• Micron_P12769I.pdf
