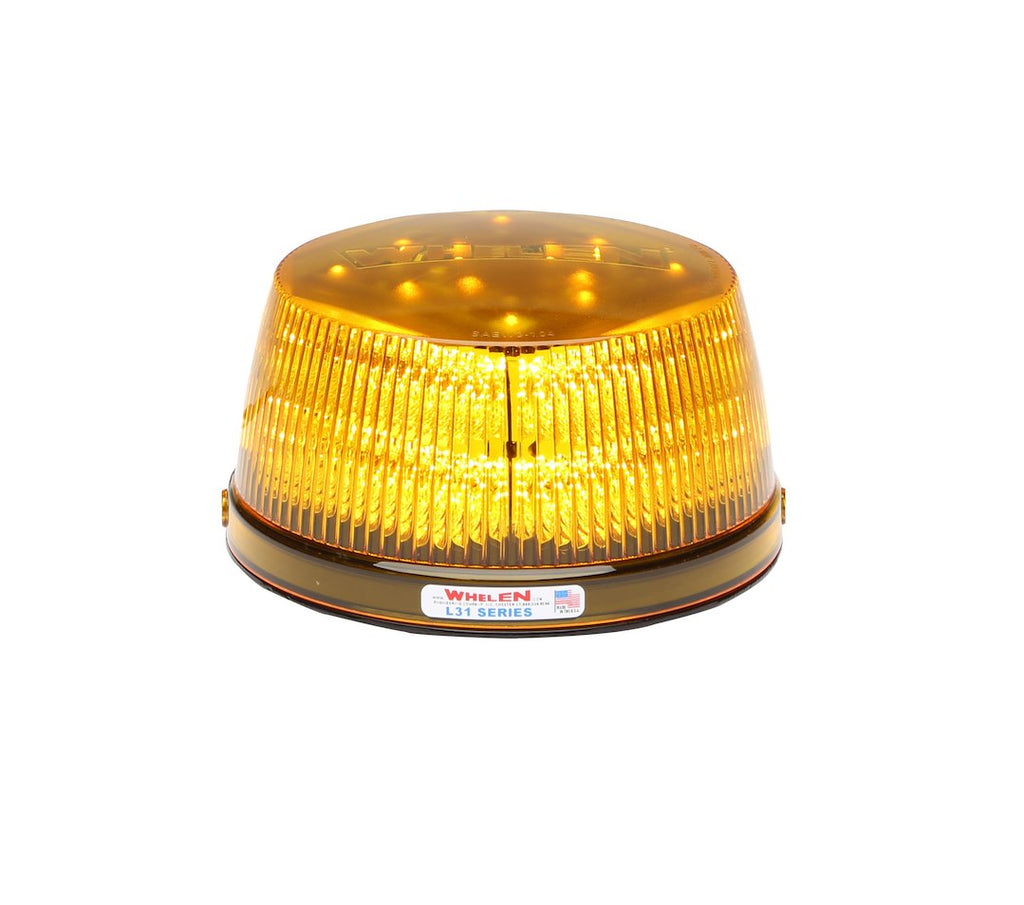

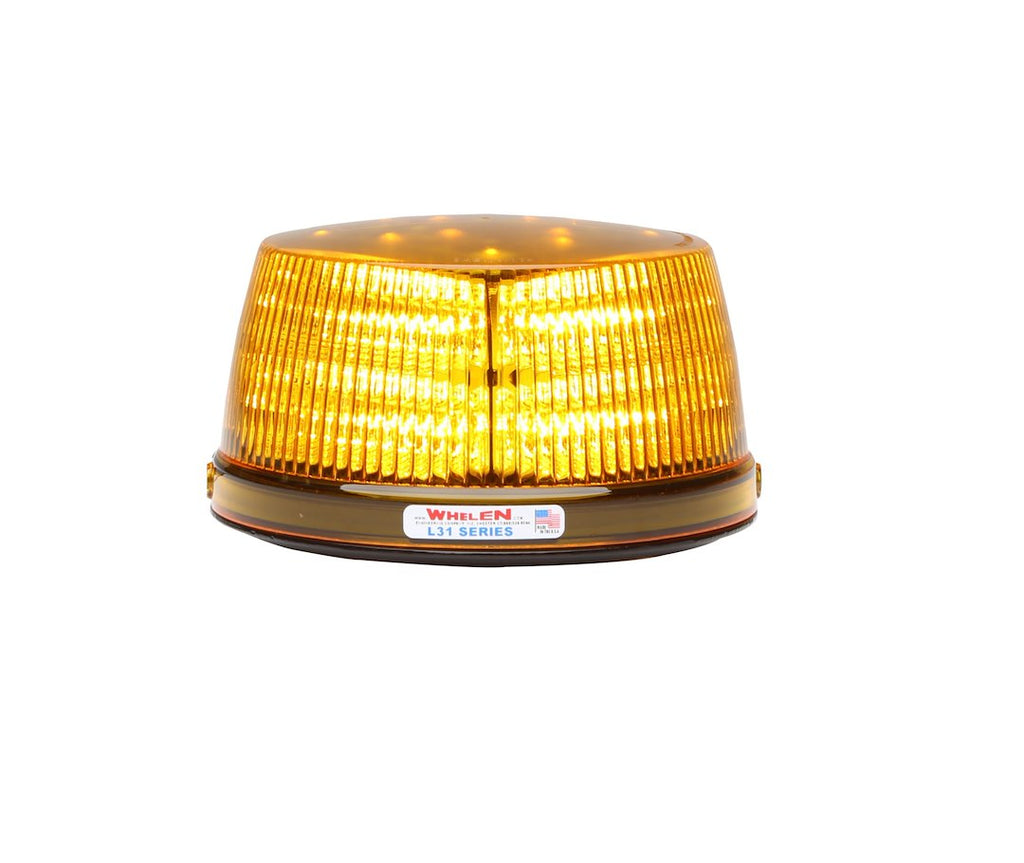

Whelen Engineering Warning Light (MPN: L31HAF)

Compact LED light with multiple flash patterns for versatile use.

The Whelen Engineering Warning Light is designed for reliable performance in various applications. With a diameter of 7.188 inches and a height of 4 inches, this dome-style light features a high profile and is permanently mounted for stability. The amber lens provides visibility, while the 30 scan-lock flash patterns, including 4 simulated rotating patterns, enhance its effectiveness in alerting others.

Constructed with a polycarbonate base, this light is built to withstand environmental challenges. The hard-coated lenses minimize damage from sand, salt, sun, and road chemicals, ensuring longevity. Additionally, the light is equipped with full reverse polarity protection and a UV-coated dome, supported by a powder-coated cast aluminum base for added durability.

Operating on a 12-volt DC power supply, the light draws 5 peak amps and 2 average amps, making it energy efficient. The 100 percent solid-state design further enhances its reliability, making it a practical choice for various safety and warning applications.

Features

• Hard-Coated Lenses Minimize Environmental Damage From Sand, Salt, Sun, And Road Chemicals
• Full Reverse Polarity Protection
• UV Coated Dome: Powder-Coated Cast Aluminum Base
• 100 Percent Solid State

Specifications

• Manufacturer: Whelen Engineering Company
• Manufacturer Part Number: L31HAF
• Shape: Round
• Length (IN): Not Applicable
• Width (IN): Not Applicable
• Height (IN): 2-5/8 Inch
• Diameter (IN): 7.188 Inch
• Style: Dome
• Type: LED
• Mount Type: Permanent Mount
• Lens Color: Amber
• Light Pattern: 30 Scan-Lock Flash Pattern With 4 Simulated Rotating Pattern
• Power Supply: 12 Volt
• Base Material: Polycarbonate
• With Cigarette Lighter Plug: Yes

Technical Documents

• 14237.pdf
• L31-L32_Series.pdf
