Compact LED light with versatile mounting options and multiple color combinations.

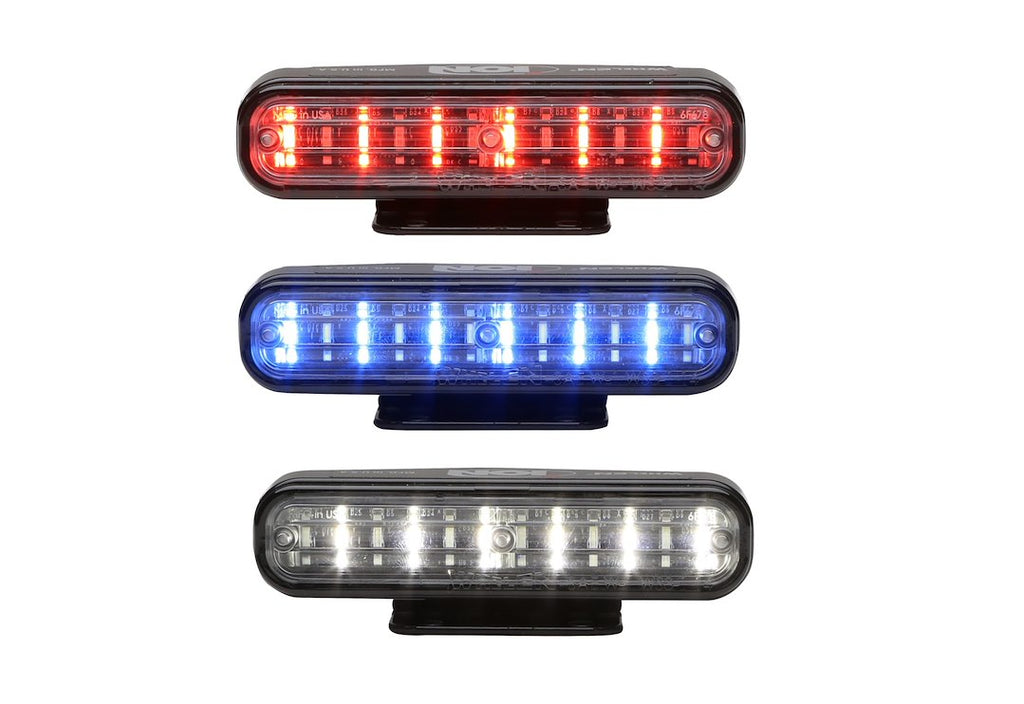

The Whelen Engineering ION Series Warning Light is a compact and versatile lighting solution designed for a variety of applications. With a length of 4 inches, width of 1.13 inches, and height of 1 inch, this lighthead features a clear lens and is available in red, blue, and white bulb options. The universal mount allows for easy installation using a combination of permanent and pedestal mounts, clips, edge mounts, or double-sided tape, making it adaptable to different setups.
This warning light utilizes TIR linear-LED optics to provide a directional or wide-angle light spread, ensuring visibility in various conditions. The ION Series is equipped with a 32 scan-lock flash pattern, powered by a 12-volt DC supply, and operates at a peak current of 0.95 amps and an average of 0.38 amps. The black housing adds durability while maintaining a sleek appearance.
Designed for efficiency and reliability, the ION Series lightheads are SAE Class 1 certified, ensuring compliance with industry standards. The inclusion of a 6-wire pigtail, pedestal mount, bail, swivel bracket, and rubber grommet enhances the installation process, making it a practical choice for emergency vehicles, construction sites, and other applications requiring high visibility.
Features
- Universal Mount Features Combination Permanent And Pedestal, Clip, Edge Mounts, Double-Sided Tape, With A Black Or White Housing
- TIR Directional Or Wide-Angle Light Spread Models
- Linear-LED Optics
- Choose From Any Combination Of Color One, Color Two, Or Color Three
Specifications
- Manufacturer: Whelen Engineering Company
- Manufacturer Part Number: I3JC
- Shape: Rectangular
- Length (IN): 4 Inch
- Width (IN): 1.13 Inch
- Height (IN): 1 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Universal Mount
- Lens Color: Clear
- Light Pattern: 32 Scan-Lock Flash Pattern
- Power Supply: 12 Volt
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
