High-performance 20 inch LED light bar with robust features and design.

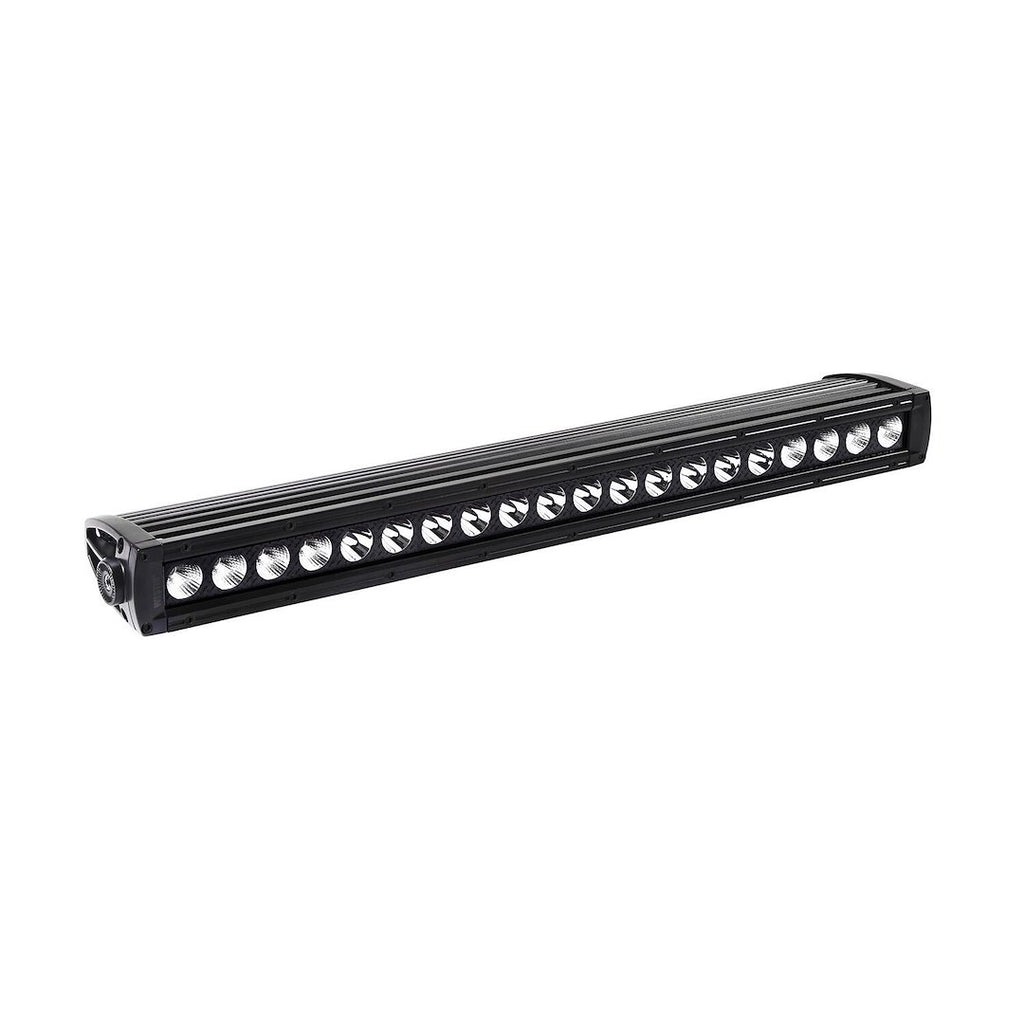

The Westin B-Force LED Light Bar is engineered for durability and high performance, featuring a 20 inch length and a powerful output of 9960 raw lumens. Constructed with a 6063 extruded aluminum housing and die-cast ends, this light bar is designed to withstand harsh conditions while providing optimal illumination. The combo beam design combines flood and spot lighting, making it versatile for various applications.
This light bar is equipped with 20 clear CREE LED bulbs, delivering a bright white light that enhances visibility. The lens is made from durable polycarbonate, ensuring resistance to dust and moisture. With a sleek black aluminum housing and a diamond plate pattern, the B-Force light bar not only performs well but also adds a stylish touch to any vehicle.
Installation is straightforward with the included mounting brackets and pigtail connector, allowing for a quick setup. The light bar operates within a voltage range of 9 to 30 volts and draws 6.5 amps at 12 volts, making it efficient for various electrical systems. The Westin B-Force LED Light Bar is a reliable choice for those seeking enhanced lighting solutions.
Features
- 6063 Extruded Aluminum Housing With Die-Cast Ends
- Dust And Moisture Resistant Lens
- Power Output 30 To 250 Watt
- Easy To Install
Specifications
- Manufacturer: Westin Automotive
- Manufacturer Part Number: 09-12211-20C
- Bulb Type: LED
- Style: Straight
- Length: 20 Inch
- Beam Type: Combo Beam Flood And Spot
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible
- Lumens: 9960 Lumens
- Wattage: 100 Watt
- Width: 3.4 Inch
- Height: 1.9 Inch
- Voltage Rating: 9 To 30 Volt
- Ampere Rating At 12 Volts: 6.5 Amp
- Bulb Specifications: 20 Clear CREE LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Side Bracket Mount
- Connection Type: Pigtail
- Includes: With Mounting Brackets/ Pigtail Connector
- Estimated Install Time (Hours): 1.5
