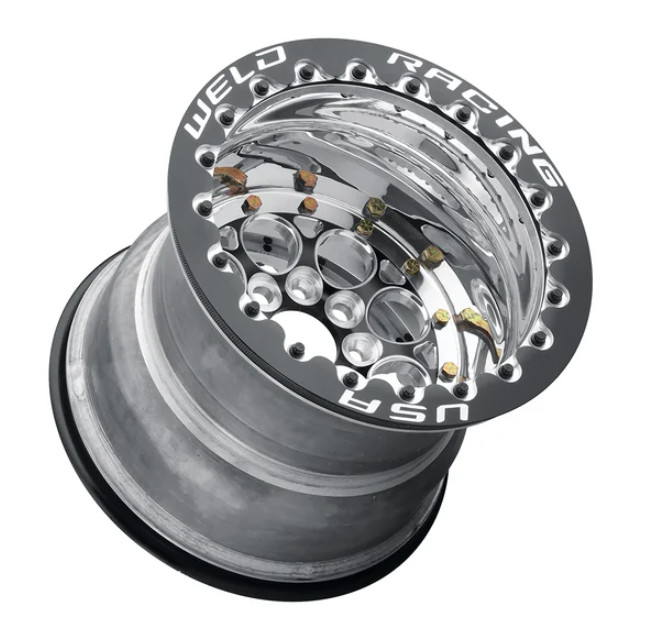

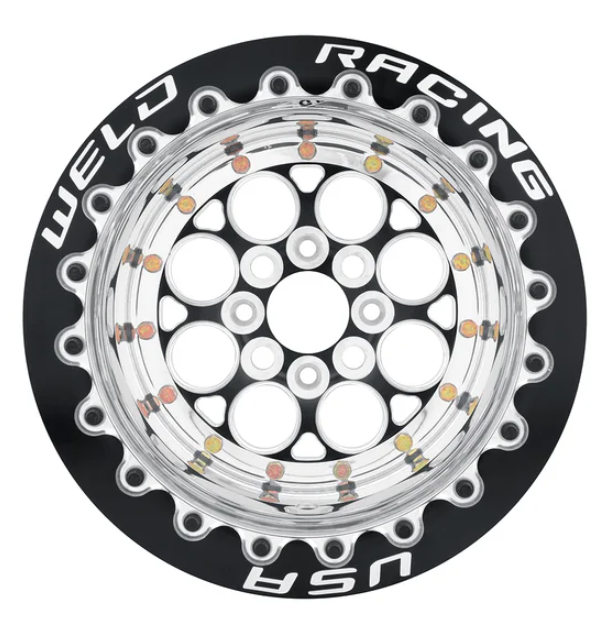

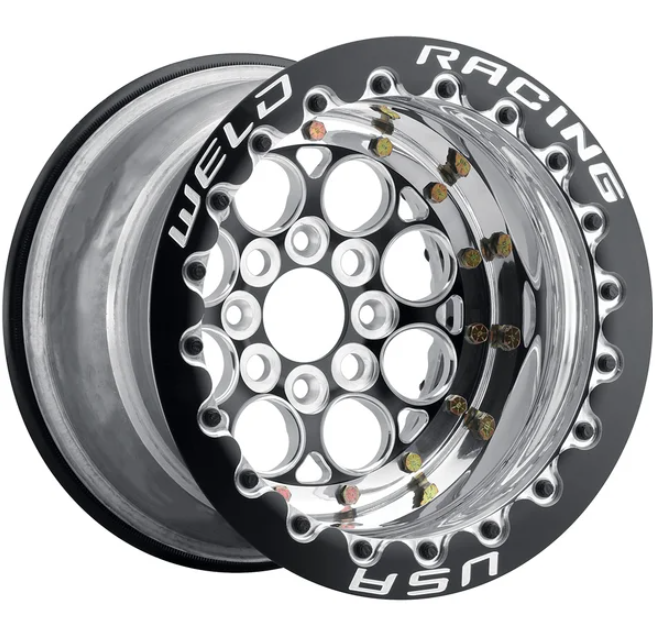

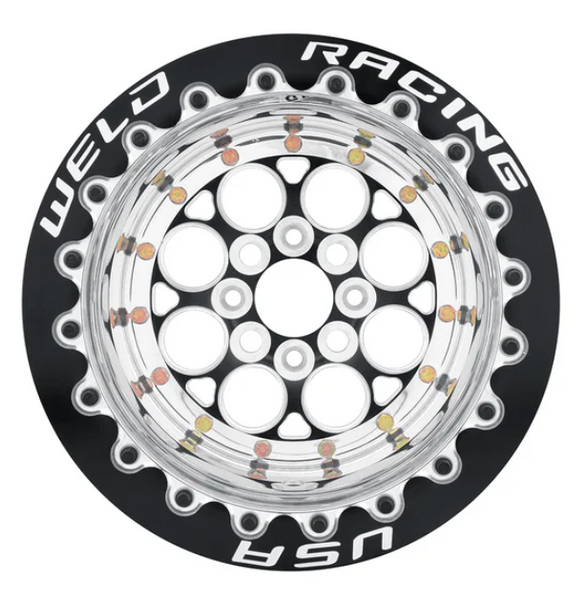

Weld Racing Wheels Magnum Import Drag Wheel (MPN: 768B-31015)

Lightweight and durable design for enhanced performance in drag racing.

The Weld Racing Wheels Magnum Import Drag wheel is engineered specifically for front-wheel drive applications, featuring a robust 3 piece welded aluminum construction. With a diameter of 13 inches and a width of 10 inches, this wheel is designed to accommodate 4 x 100 millimeter and 5 x 100 millimeter bolt patterns, making it versatile for various vehicles. The matte black finish not only enhances its aesthetic appeal but also contributes to its durability, ensuring it withstands the rigors of drag racing.

This wheel incorporates advanced features such as a forged 6061-T6 center and cold drawn aluminum rim shells, which provide strength while keeping the overall weight low. The fully polished show quality inner and outer rim shells, along with black/machined anodized centers, deliver a striking appearance that stands out on the track. Additionally, the double rolled wheel flange design enhances structural integrity, making it stronger than many competing designs.

With a -12 millimeter offset and 5.00 inch backspacing, the Magnum Import Drag wheel is optimized for performance, allowing for better handling and stability during high-speed runs. The 67.56 millimeter center bore and mag shank lug nut seat type ensure a secure fitment, while compatibility with tire pressure monitoring systems adds convenience for the user. This single wheel is a reliable choice for those looking to enhance their drag racing setup.

Features

• Matte Black Finish
• 3 Piece Welded Aluminum Construction
• Forged 6061-T6 Center
• Cold Drawn Aluminum Rim Shells
• Fully Polished Show Quality Inner And Outer Rim Shells
• Black/Machined Anodized Centers Provide A Durable, Great Looking Finish
• Double Rolled Wheel Flange Is Stronger Than Other Designs

Specifications

• Manufacturer: Weld Racing Wheels
• Manufacturer Part Number: 768B-31015
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 13
• Width: 10
• Offset: -12
• Backspacing: 5.00
• Finish: Matte
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 4x3.94
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 4x100
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: Mag Shank
• Center Caps Included: No
• Center Bore: 67.56
• Lug Nut Design: Short Shank
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Hole
• With Inserts: No
• Size: 13x10
• Center Cap Design: Center Cap Not Included
• Finish Warranty: No Warranty
• Structural Warranty: 30 Days
• Quantity: Single
• Construction: Three Piece Welded
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• Torque-Specifications.pdf
