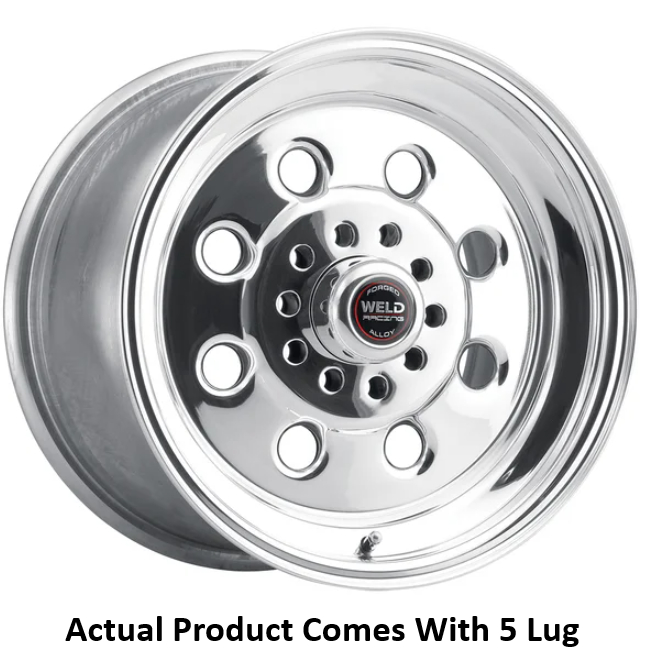

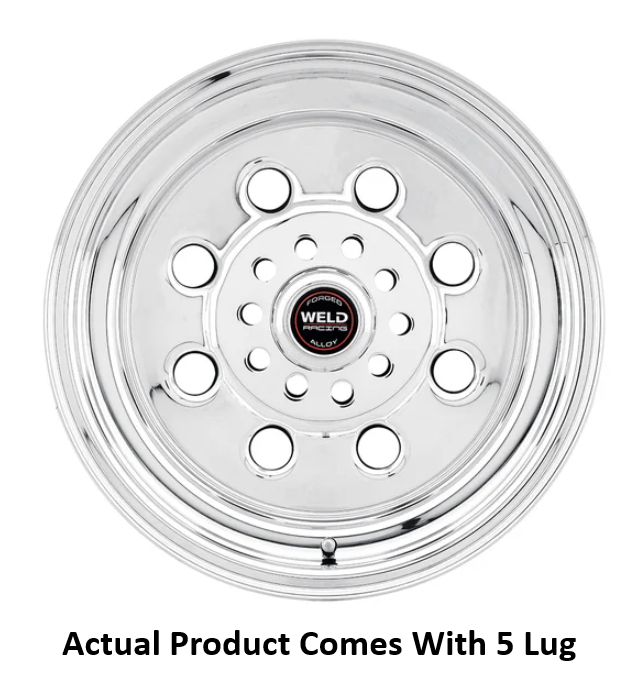

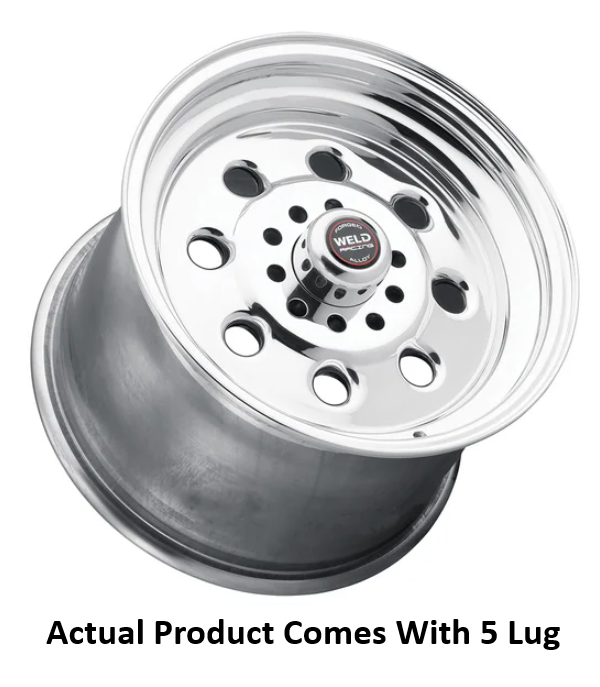

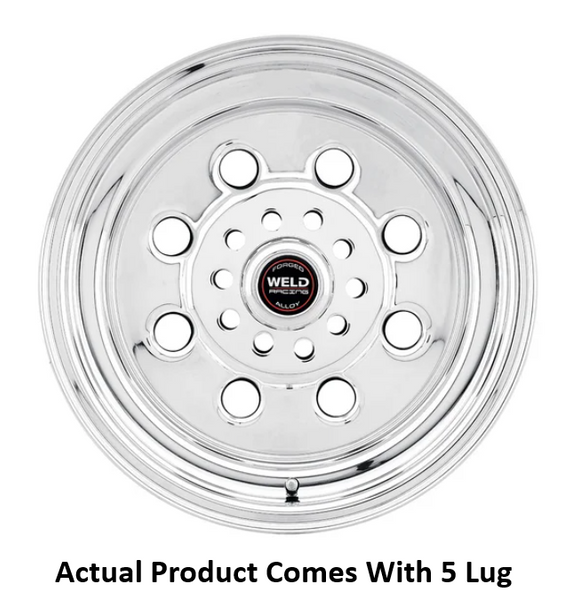

Weld Racing Draglite 90 Wheel (MPN: 90-55346)

Lightweight and durable design for street and strip performance.

The Weld Racing Draglite 90 Wheel is a renowned choice among performance enthusiasts, featuring a classic design that is both stylish and functional. This two-piece wheel utilizes advanced cold-forged and welded construction, resulting in a lightweight yet robust product that outperforms traditional cast wheels. With a polished surface finish, it not only enhances the aesthetic appeal of any vehicle but also ensures durability under demanding conditions.

Designed for versatility, the Draglite 90 accommodates various bolt patterns including 5 x 114.3, 5 x 120.7, and 5 x 4.75 inches, making it compatible with a wide range of street and strip cars. The wheel boasts a 12 millimeter offset and 3.50 inch backspacing, optimizing fitment and performance. Additionally, it supports a maximum tire diameter of 27 inches and has a load capacity of 1200 pounds, making it suitable for high-performance applications.

Equipped with a Weld Racing logo center cap, this wheel exemplifies genuine Weld quality and craftsmanship. The Draglite 90 is engineered to meet the demands of serious racers while providing a brilliant polished finish that stands out. With a structural warranty of three years, it offers peace of mind for those looking to enhance their vehicle's performance and appearance.

Features

• Highly Polished Surface Finish
• 2 Piece Welded Aluminum Construction
• With Weld Racing Logo Center Cap
• Genuine Weld Quality In Iconic Designs For The Performance Enthusiast
• New High Positive Offsets With Deeper Backspaces For Draglite
• Brilliantly Polished Show Finish

Specifications

• Manufacturer: Weld Racing Wheels
• Manufacturer Part Number: 90-55346
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 15
• Width: 5
• Offset: 12
• Backspacing: 3.50
• Finish: Polished
• Color: Natural
• Material: Aluminum
• Bolt Pattern Inch: 5x4.50
• Bolt Pattern Inch: 5x4.75
• Bolt Pattern Millimeter: 5x114.3
• Bolt Pattern Millimeter: 5x120.7
• Lug Nut Seat Type: Mag Shank
• Center Caps Included: Yes
• Center Bore: 73.10
• Lug Nut Design: Extra Long Shank
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 1200
• Size: 15x5
• Max Tire Diameter: 27
• Center Cap Design: Weld Racing Logo
• Finish Warranty: No Warranty
• Structural Warranty: 3 Years
• Quantity: Single
• Construction: Two Piece Welded
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1970-1972 Mercury Colony Park

Technical Documents

• Torque-Specifications.pdf
