Lightweight and durable design for street and strip applications.

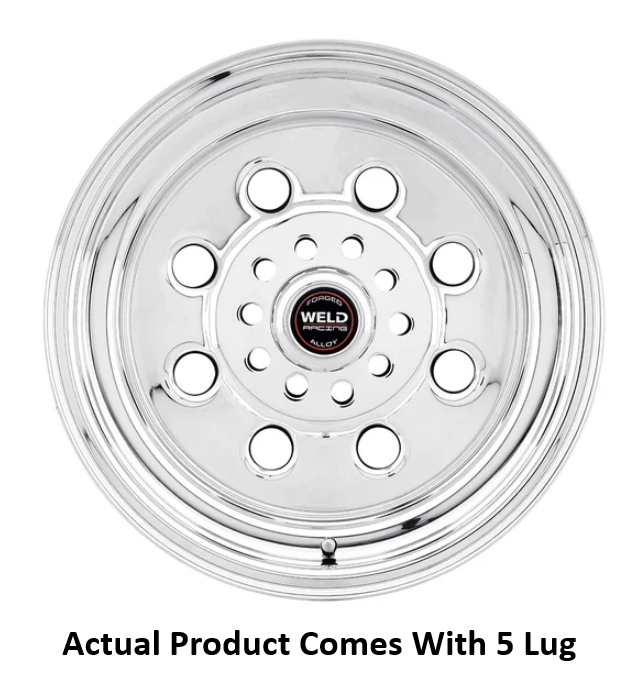

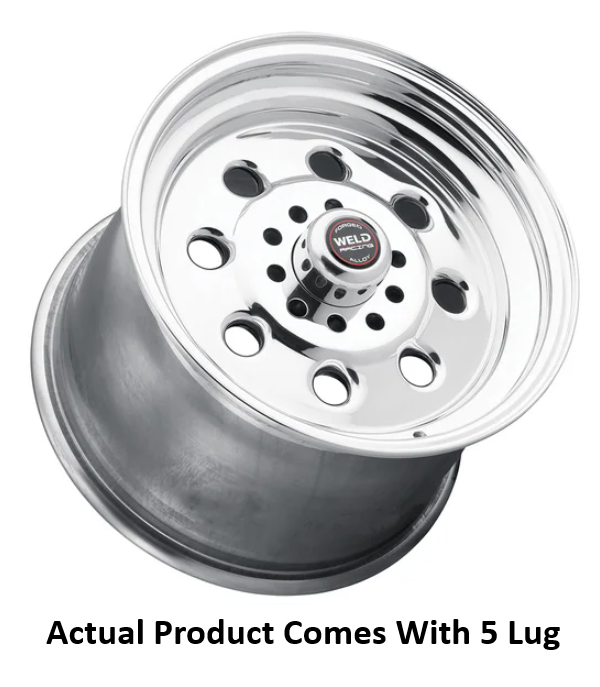

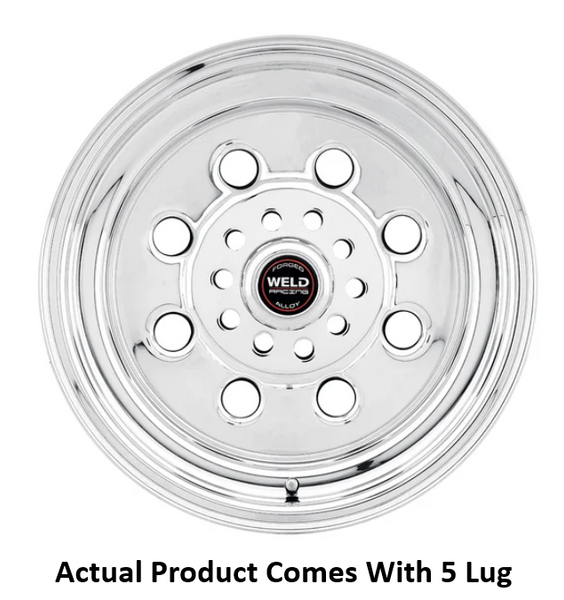

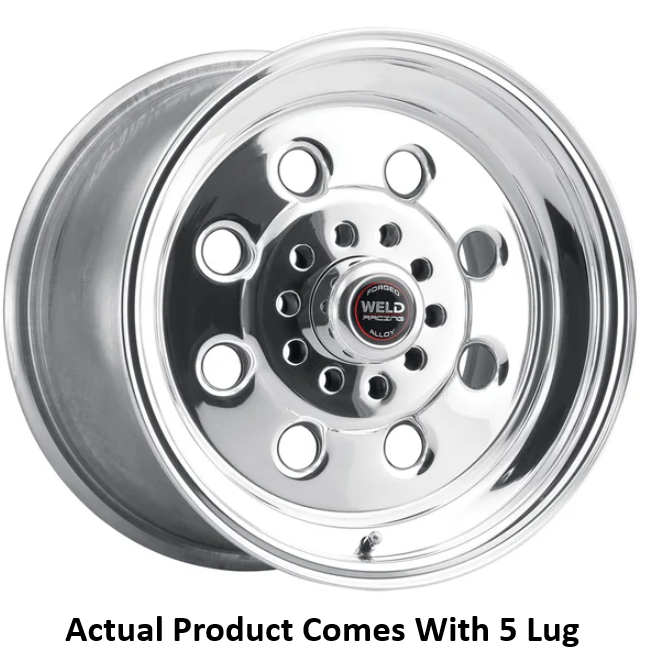

The Weld Racing Draglite 90 Wheel is a renowned choice for automotive enthusiasts seeking performance and style. With a diameter of 15 inches and a width of 4 inches, this wheel features a 5 x 120.7 millimeter bolt pattern and a 60 degree conical seat lug design. Its two-piece welded aluminum construction ensures a lightweight yet robust build, making it suitable for both street and strip applications.
This wheel is polished to provide a sleek finish that enhances the overall aesthetic of any vehicle. It is designed to accommodate a maximum tire diameter of 22.4 inches and has a load capacity of 1200 pounds, ensuring reliability under various driving conditions. Additionally, the Draglite 90 is compatible with Tire Pressure Monitoring Systems (TPMS), adding convenience for modern drivers.
The inclusion of the Weld Racing logo center cap adds a touch of authenticity to the design. With a backspacing of 2.50 inches and a zero offset, this wheel is engineered for optimal fitment and performance. The Draglite 90 Wheel is a testament to Weld Racing's commitment to quality and innovation in wheel design.
Features
- Polished Finish
- 2 Piece Welded Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- Weld Racing Logo Center Cap
- Welded Construction For A Lighter And Stronger Wheel
Specifications
- Manufacturer: Weld Racing Wheels
- Manufacturer Part Number: 90-54344
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 15
- Width: 4
- Offset: 0
- Backspacing: 2.50
- Finish: Polished
- Color: Natural
- Material: Aluminum
- Bolt Pattern Inch: 5x4.75
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x120.7
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 80.77
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Hole
- With Inserts: No
- Load Capacity: 1200
- Size: 15x4
- Max Tire Diameter: 22.4
- Center Cap Design: Weld Racing Logo
- Finish Warranty: No Warranty
- Structural Warranty: 3 Years
- Quantity: Single
- Construction: Two Piece Welded
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
