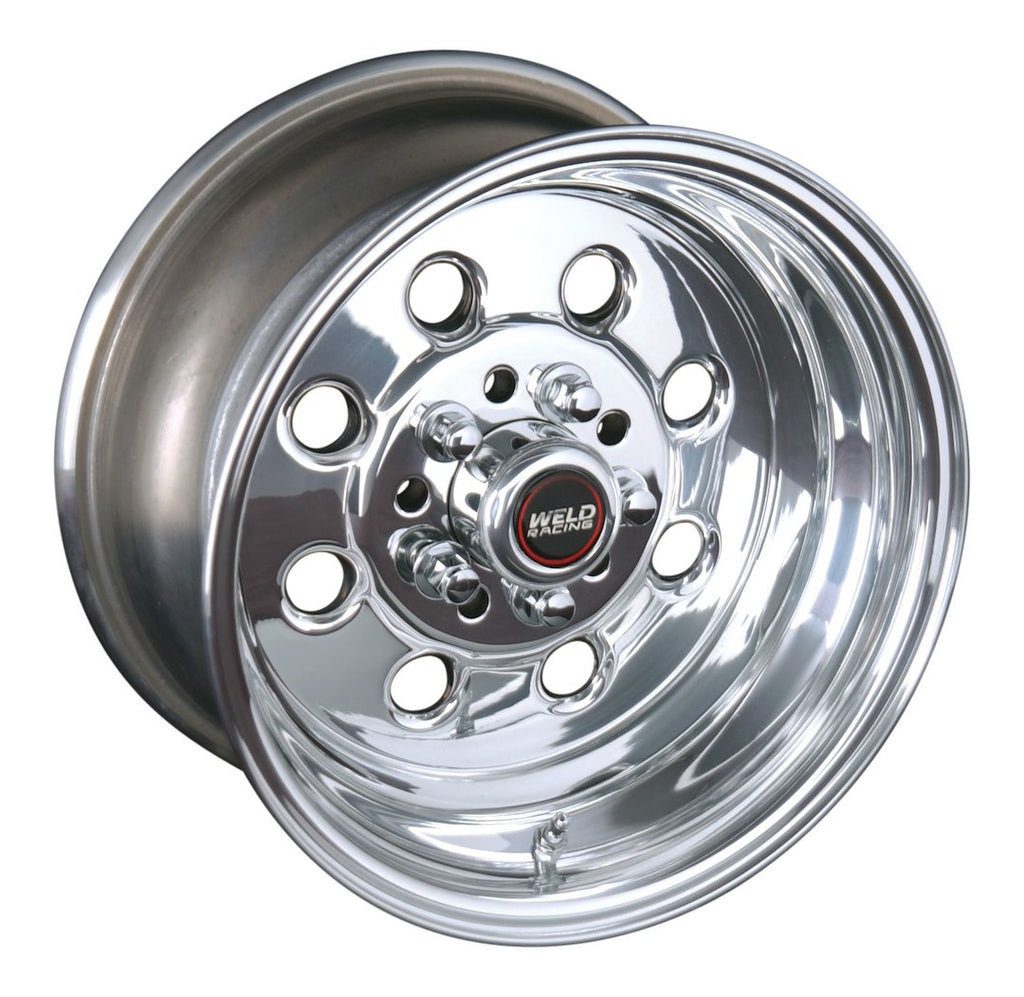

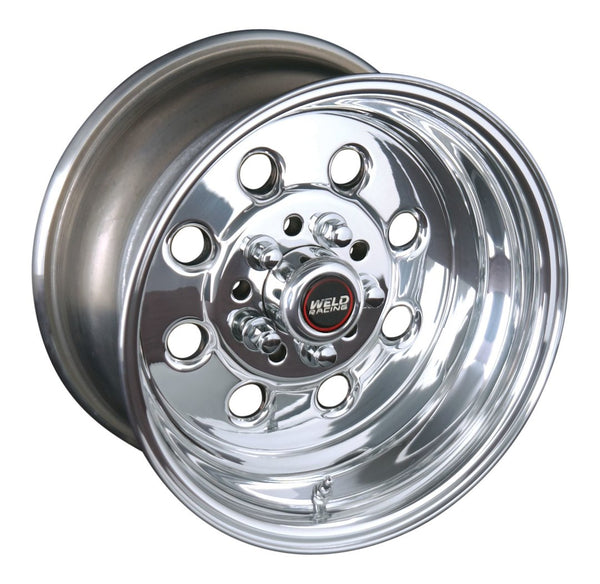

Weld Racing Draglite 90 Wheel (MPN: 90-54342)

Lightweight and durable two-piece aluminum wheel for performance vehicles.

The Weld Racing Draglite 90 Wheel is a renowned choice among performance enthusiasts, featuring a classic design that is both stylish and functional. This wheel is constructed using a revolutionary cold-forged and welded process, resulting in a lightweight yet robust structure compared to traditional cast wheels. With a polished surface finish, it not only enhances the aesthetic appeal of any street or strip car but also ensures durability under demanding conditions.

Designed with a 15-inch diameter and 4-inch width, the Draglite 90 accommodates various bolt patterns, including 5 x 114.3 millimeter and 5 x 120.7 millimeter, making it versatile for different vehicle applications. The -15 millimeter offset and 1.88 inch backspacing provide optimal fitment for performance setups, while the 1200 pound load capacity ensures reliability during high-stress situations. The wheel also features a Weld Racing logo center cap, adding to its iconic look.

This two-piece welded aluminum construction not only contributes to the wheel's strength but also allows for a deeper backspace, enhancing the overall performance of the vehicle. The Draglite 90 is compatible with tire pressure monitoring systems, ensuring that drivers can maintain optimal tire conditions. With a maximum tire diameter of 22.4 inches, this wheel is engineered to meet the demands of serious racers.

Features

• Highly Polished Surface Finish
• 2 Piece Welded Aluminum Construction
• With Weld Racing Logo Center Cap
• Genuine Weld Quality In Iconic Designs For The Performance Enthusiast
• New High Positive Offsets With Deeper Backspaces For Draglite
• Brilliantly Polished Show Finish

Specifications

• Manufacturer: Weld Racing Wheels
• Manufacturer Part Number: 90-54342
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 15
• Width: 4
• Offset: -15
• Backspacing: 1.88
• Finish: Polished
• Color: Natural
• Material: Aluminum
• Bolt Pattern Inch: 5x4.50
• Bolt Pattern Inch: 5x4.75
• Bolt Pattern Millimeter: 5x114.3
• Bolt Pattern Millimeter: 5x120.7
• Lug Nut Seat Type: Mag Shank
• Center Caps Included: Yes
• Center Bore: 73.10
• Lug Nut Design: Extra Long Shank
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Hole
• With Inserts: No
• Load Capacity: 1200
• Size: 15x4
• Max Tire Diameter: 22.4
• Center Cap Design: Weld Racing Logo
• Finish Warranty: No Warranty
• Structural Warranty: 3 Years
• Quantity: Single
• Construction: Two Piece Welded
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Technical Documents

• Torque-Specifications.pdf
