Lightweight and durable two-piece aluminum construction for performance vehicles.

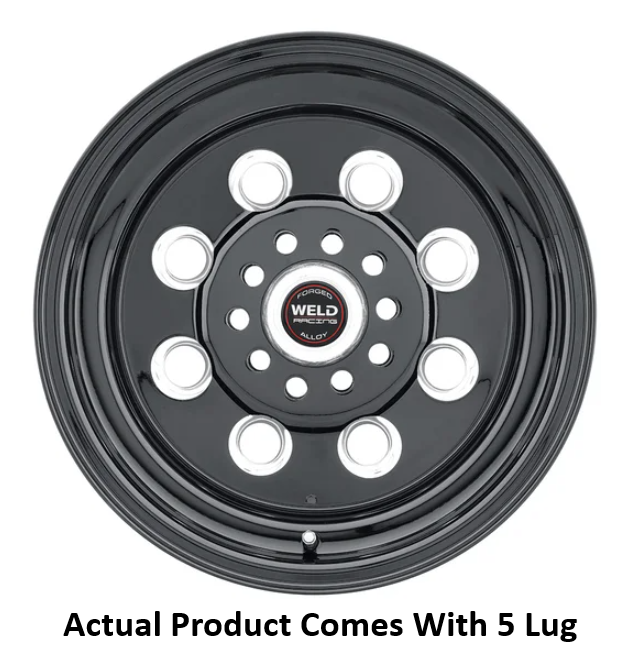

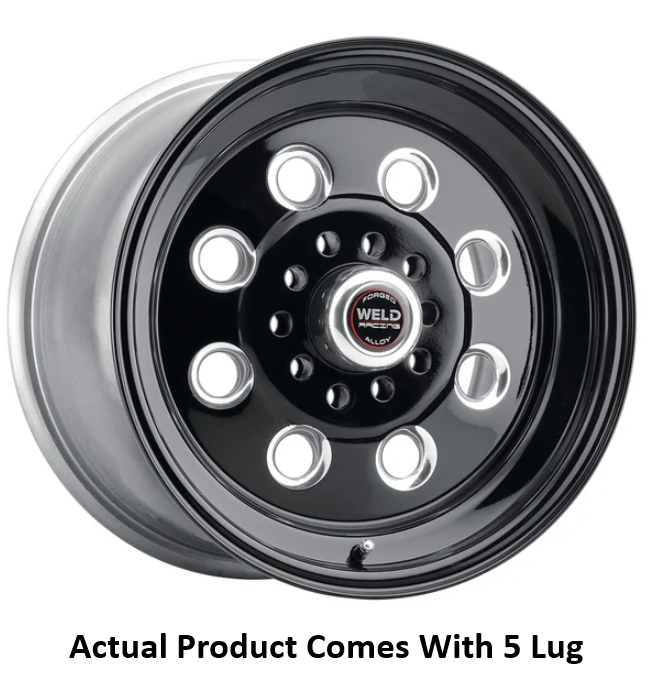

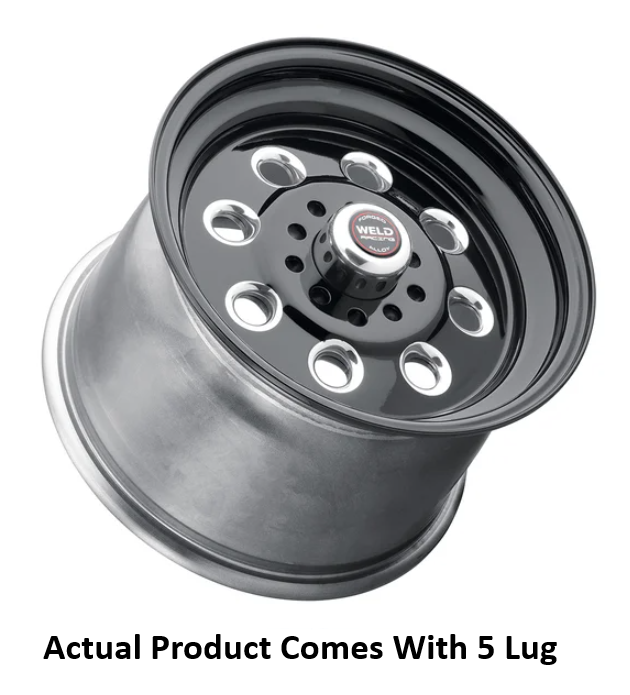

The Weld Draglite 90 Wheel is a renowned choice among performance enthusiasts, featuring a classic design that is both stylish and functional. This wheel is constructed using a two-piece welded aluminum method, which provides a significant weight advantage over traditional cast wheels while enhancing strength and durability. With a diameter of 15 inches and a width of 10 inches, it accommodates a maximum tire diameter of 30.4 inches, making it suitable for various street and strip applications.
The wheel is designed with multiple bolt patterns, including 5 x 114.3 millimeter, 5 x 120.7 millimeter, and 5 x 4.75 inch, ensuring compatibility with a wide range of vehicles. It features a -25 millimeter offset and 4.50 inch backspacing, which contribute to improved handling and performance. The black finish not only adds to its aesthetic appeal but also provides a protective layer against the elements.
Included with the wheel is a Weld Racing logo center cap, emphasizing the quality and heritage of the brand. With a load capacity of 1200 pounds, the Weld Draglite 90 Wheel is engineered to withstand the demands of high-performance driving. This wheel is compatible with tire pressure monitoring systems, ensuring that drivers can maintain optimal tire performance.
Features
- Black Finish
- 2 Piece Welded Aluminum Construction
- With Weld Racing Logo Center Cap
- Genuine Weld Quality In Iconic Designs For The Performance Enthusiast
Specifications
- Manufacturer: Weld Racing Wheels
- Manufacturer Part Number: 90B-510348
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 15
- Width: 10
- Offset: -25
- Backspacing: 4.50
- Finish: Painted
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 5x4.50
- Bolt Pattern Inch: 5x4.75
- Bolt Pattern Millimeter: 5x114.3
- Bolt Pattern Millimeter: 5x120.7
- Lug Nut Seat Type: Mag Shank
- Center Caps Included: Yes
- Center Bore: 73.10
- Lug Nut Design: Standard Shank
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Hole
- With Inserts: No
- Load Capacity: 1200
- Size: 15x10
- Max Tire Diameter: 30.4
- Center Cap Design: Weld Racing Logo
- Finish Warranty: No Warranty
- Structural Warranty: 3 Years
- Quantity: Single
- Construction: Two Piece Welded
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2000-2011 Ford Ranger
- 1997-2006 Jeep Wrangler TJ
- 2000-2004 Toyota Tacoma
