Lightweight and durable design for street and strip performance.

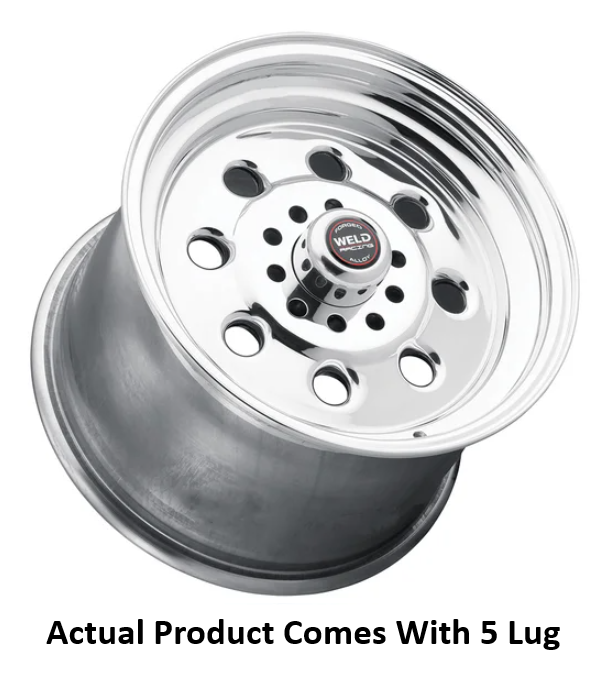

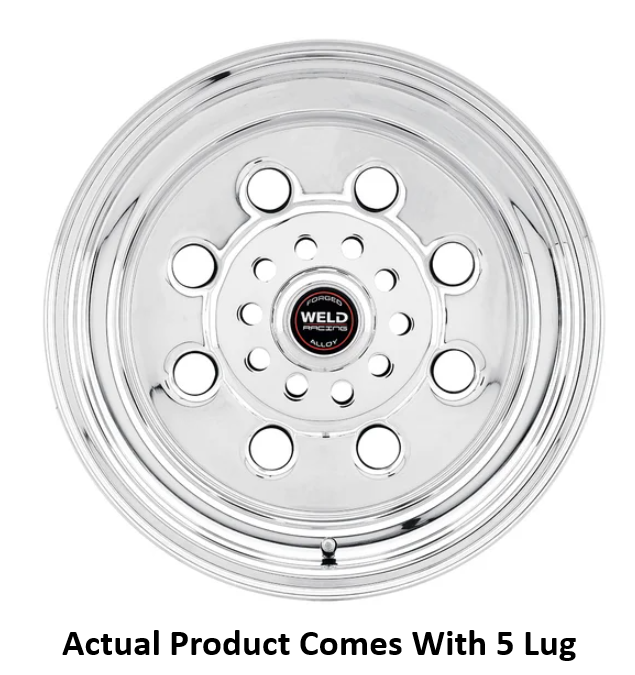

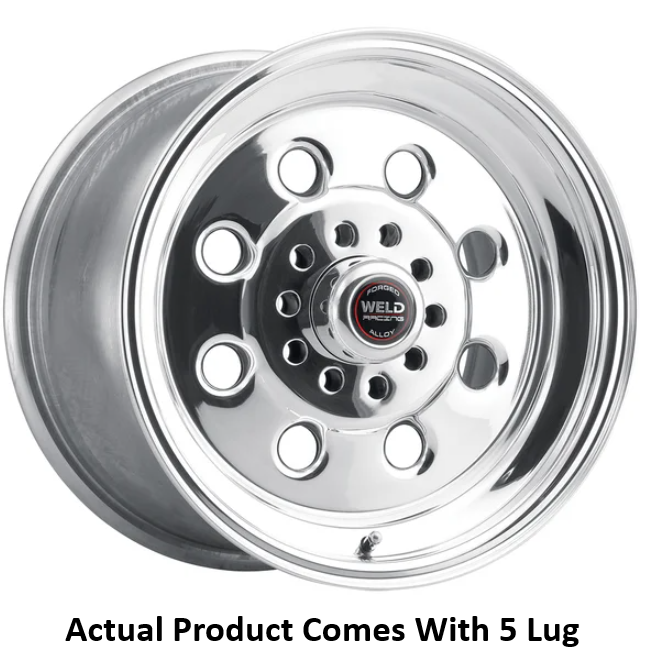

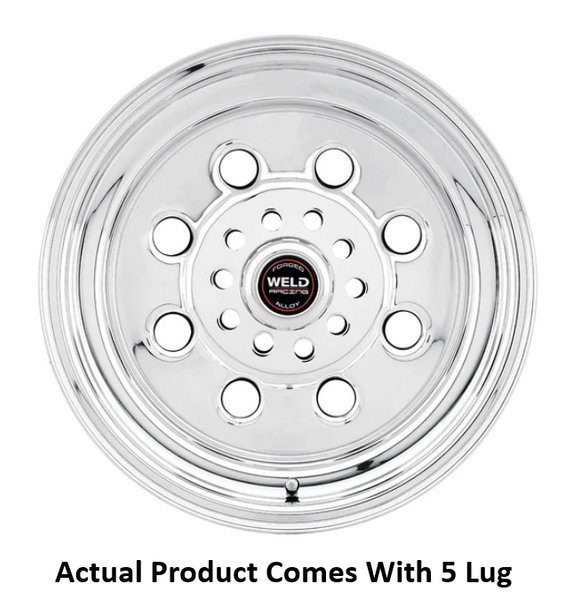

The Weld Draglite 90 Wheel is a renowned choice among performance enthusiasts, featuring a classic design that is both stylish and functional. This two-piece wheel utilizes advanced cold-forged and welded construction, resulting in a lightweight yet robust structure that outperforms traditional cast wheels. With a polished surface finish, the Draglite not only enhances the aesthetic appeal of any vehicle but also provides superior strength and durability.
Designed for versatility, the Draglite 90 accommodates various bolt patterns including 5 x 114.3, 5 x 4.50, 5 x 120.7, and 5 x 4.75 inches, making it compatible with a wide range of vehicles. The wheel has a 15-inch diameter and a 10-inch width, with a 0-millimeter offset and 5.50 inches of backspacing, ensuring optimal fitment and performance. The load capacity of 1200 pounds and a maximum tire diameter of 30.4 inches further enhance its utility for both street and drag racing applications.
Included with the wheel is a Weld Racing logo center cap, adding a touch of authenticity to its design. The Draglite 90 is engineered to meet the demands of performance driving, making it a reliable choice for those seeking quality and performance in their wheel selection.
Features
- Highly Polished Surface Finish
- 2 Piece Welded Aluminum Construction
- With Weld Racing Logo Center Cap
- Genuine Weld Quality In Iconic Designs For The Performance Enthusiast
- New High Positive Offsets With Deeper Backspaces For Draglite
- Brilliantly Polished Show Finish
Specifications
- Manufacturer: Weld Racing Wheels
- Manufacturer Part Number: 90-510350
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 15
- Width: 10
- Offset: 0
- Backspacing: 5.50
- Finish: Polished
- Color: Natural
- Material: Aluminum
- Bolt Pattern Inch: 5x4.50
- Bolt Pattern Inch: 5x4.75
- Bolt Pattern Millimeter: 5x114.3
- Bolt Pattern Millimeter: 5x120.7
- Lug Nut Seat Type: Mag Shank
- Center Caps Included: Yes
- Center Bore: 80.77
- Lug Nut Design: Extra Long Shank
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 8 Hole
- With Inserts: No
- Load Capacity: 1200
- Size: 15x10
- Max Tire Diameter: 30.4
- Center Cap Design: Weld Racing Logo
- Finish Warranty: No Warranty
- Structural Warranty: 3 Years
- Quantity: Single
- Construction: Two Piece Welded
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1997-2006 Jeep Wrangler TJ
- 2000-2004 Toyota Tacoma
