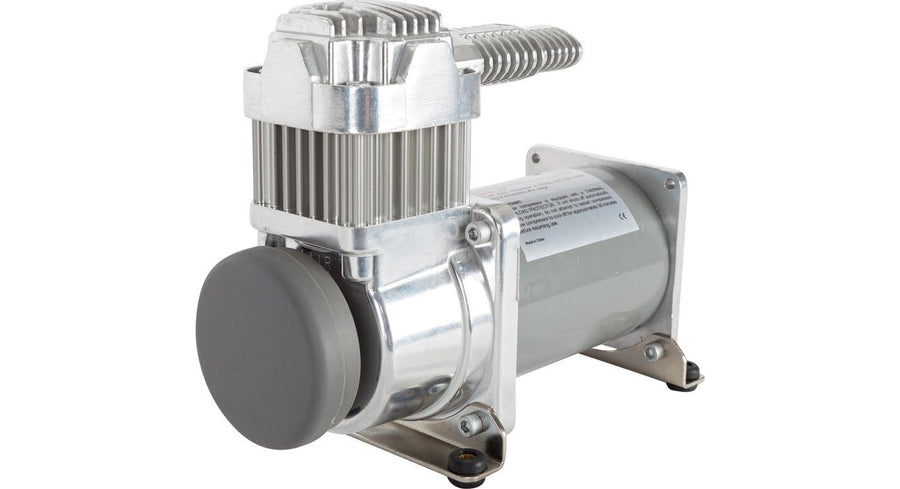

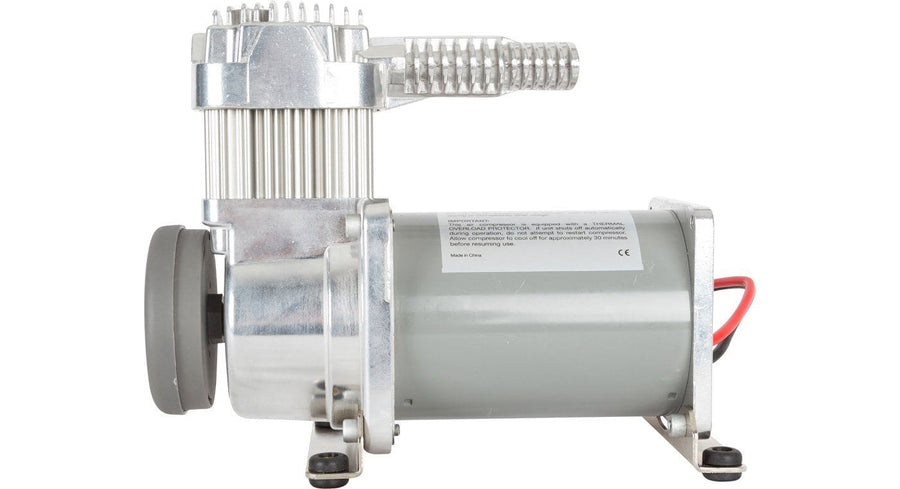

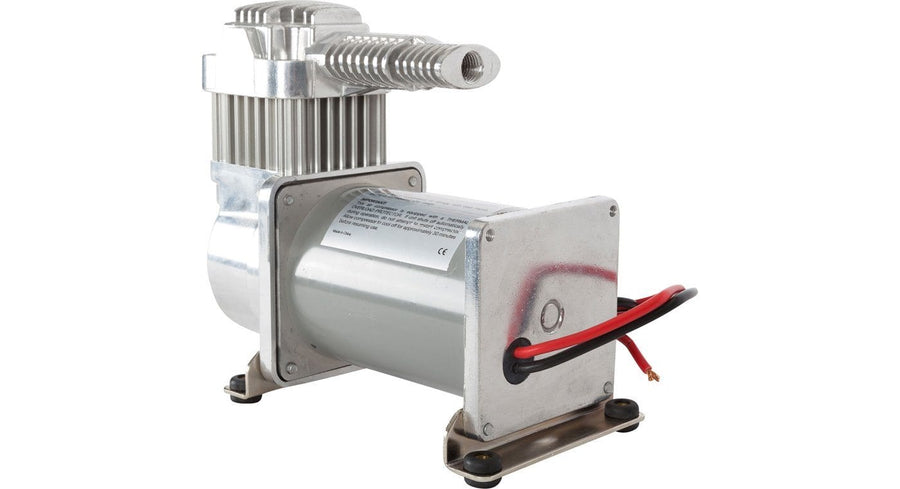

Viair Industrial Grade Air Compressor (MPN: AC-250IG-24)

Reliable 24-Volt compressor with advanced heat dissipation technology.

The Viair Industrial Grade 24-Volt Air Compressor is engineered for durability and efficiency in demanding environments. With a maximum working pressure of 150 PSI and a flow rate of 1.0 CFM at 0 PSI, this compressor is suitable for various pneumatic applications. It features a 2.5-gallon tank and operates with a 100 percent duty cycle up to 100 PSI, ensuring consistent performance during extended use.

Designed with a revolutionary heat dissipation head, the Viair compressor maintains optimal operating temperatures, enhancing its longevity and reliability. The oil-less design and high-performance PTFE piston ring contribute to its low maintenance requirements, while the stainless steel valves ensure durability against wear. This compressor is also moisture and dirt resistant, making it ideal for industrial settings.

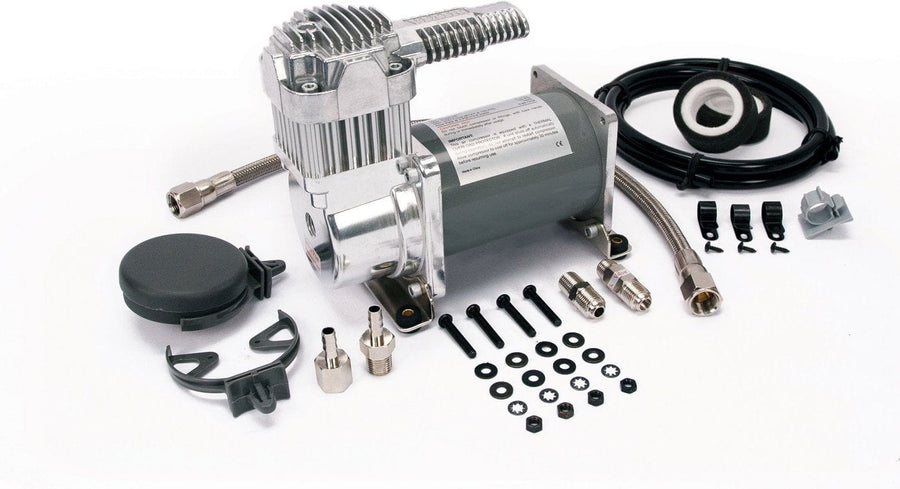

The unit includes a stainless steel braided PTFE-lined leader hose and check valve assembly, which safeguards against high amperage restarts. With a permanent magnetic motor and gearless direct drive, the Viair compressor delivers efficient power consumption at just 6 Amperes. This combination of features makes it a robust choice for filling air reservoir tanks and other pneumatic needs.

Features

• Revolutionary Heat Dissipation Head Design
• Industrial Grade And CE Specifications
• Permanent Magnetic Motor
• Oil-Less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Moisture And Dirt Resistant
• Anodized Aluminum Alloy Cylinder
• Gearless Direct Drive Motor

Specifications

• Manufacturer: Horn Blasters
• Manufacturer Part Number: AC-250IG-24
• Condition: New
• Type: On-Board
• Maximum Pressure Rating (PSI): 150 Pounds Per Square Inch
• Air Flow Rating: 1.00 Cubic Feet Per Minute
• Power Source: 24 Volt
• Amperage: 6 Amp
• Includes Pressure Gauge: No

Technical Documents

• 250IG_Manual.pdf
