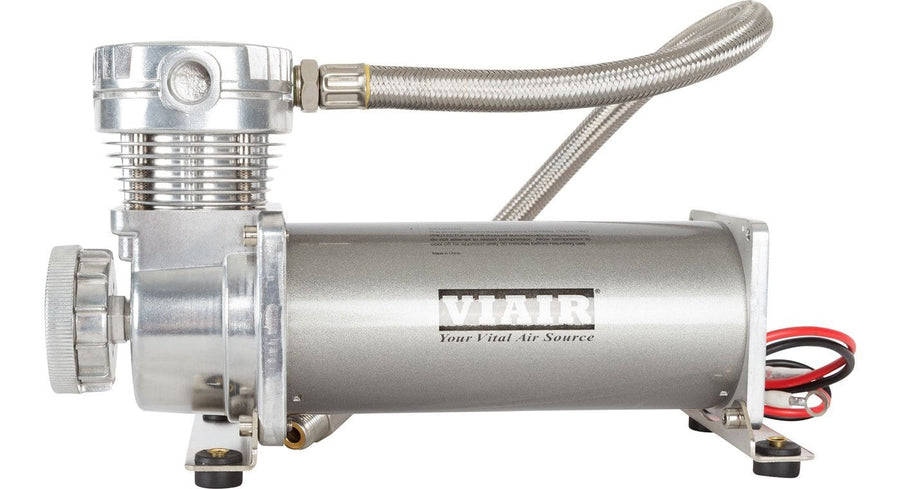

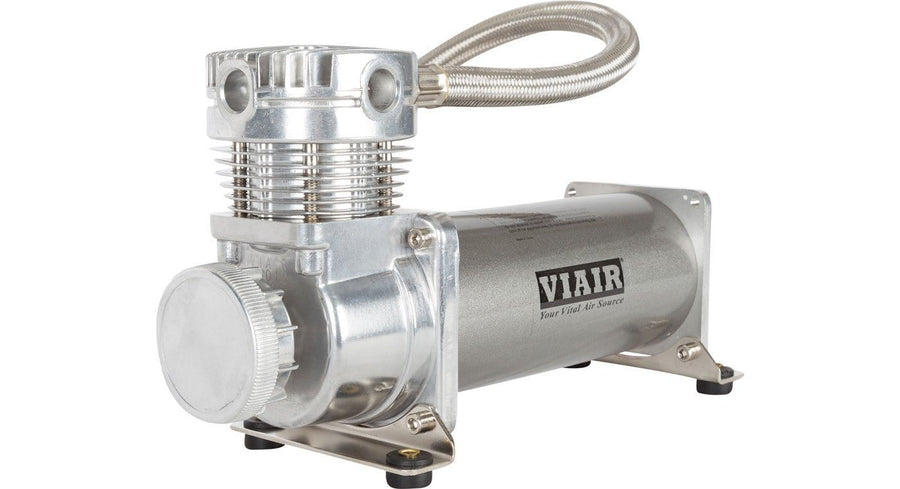

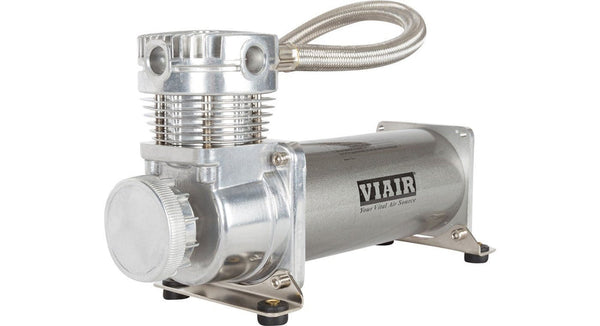

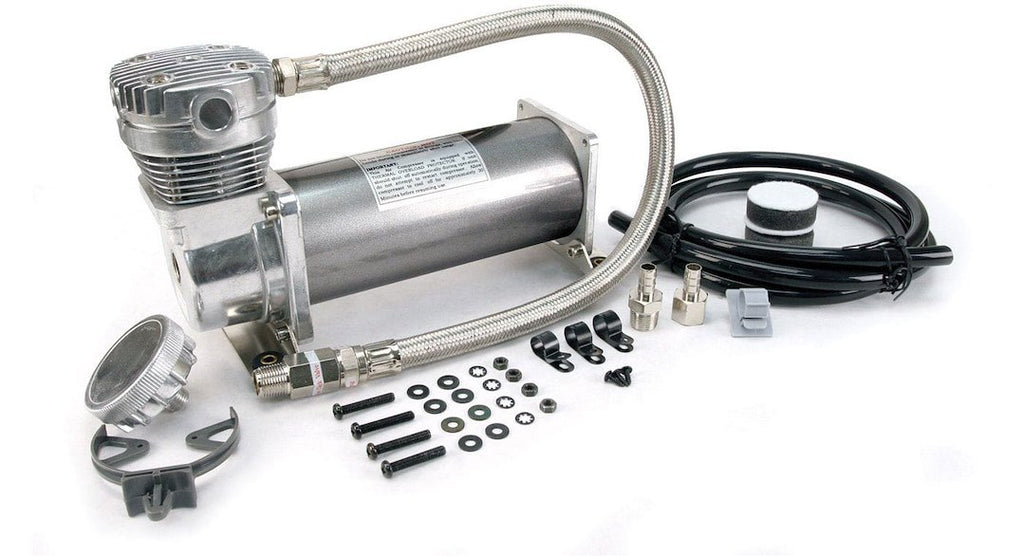

High-performance compressor for various pneumatic applications.
The VIAIR Air Compressor is designed for stationary use, featuring a maximum working pressure of 200 PSI and an air flow rating of 1.86 CFM at 0 PSI. This compressor operates on a 12-volt power source and is equipped with a 2.5-gallon tank, making it suitable for a range of pneumatic applications including tire inflation and air tools. Its oil-less design and permanent magnetic motor ensure longevity and reliability, while the gearless direct drive motor enhances performance efficiency.
This compressor is capable of recharging a 2.5-gallon tank from 165 to 200 PSI in just over 1 minute and 30 seconds, demonstrating its rapid recovery capabilities. The unit includes a remote mountable intake filter assembly, allowing for flexible installation and protection from moisture and debris. Additionally, the compressor features a stainless steel braided leader hose with a check valve, ensuring secure and efficient operation.
Constructed with an anodized aluminum alloy cylinder and equipped with an automatic reset thermal overload protector, the VIAIR Air Compressor is built to withstand demanding conditions. The inclusion of mounting plates with vibration isolators further enhances its durability and performance, making it a reliable choice for various applications.
Features
- Permanent Magnetic Motor
- Oil-Less Design
- High-Performance PTFE Piston Ring
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates With Vibration Isolators
- Stainless Steel 1/4 Inch Braided Leader Hose
- Remote Mountable Intake Filter Assembly
Specifications
- Manufacturer: Horn Blasters
- Manufacturer Part Number: AC-480
- Condition: New
- Type: On-Board
- Maximum Pressure Rating (PSI): 200 Pounds Per Square Inch
- Air Flow Rating: 1.86 Cubic Feet Per Minute
- Power Source: 12 Volt
- Amperage: 23 Amp
- Includes Pressure Gauge: No
- Color: Pewter
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
