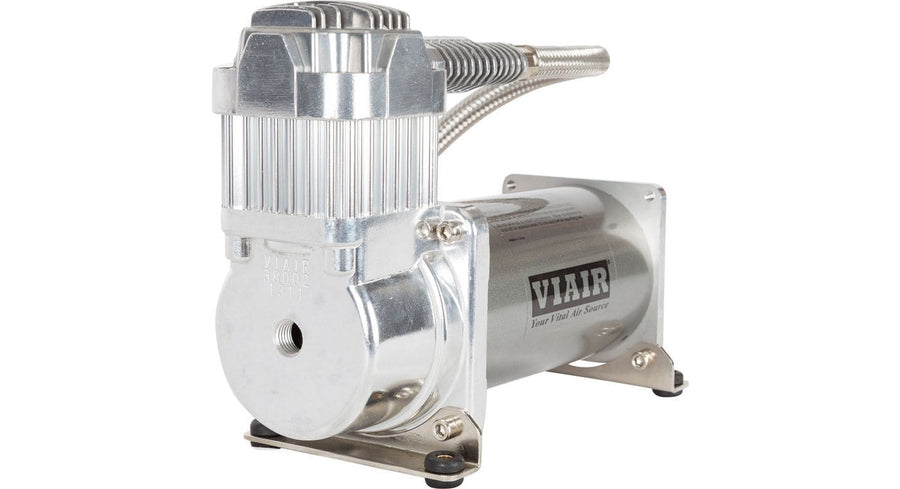

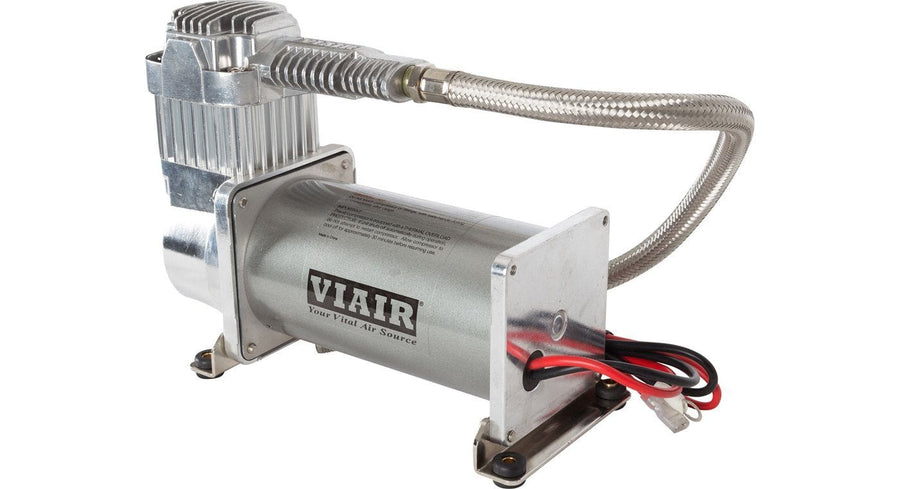

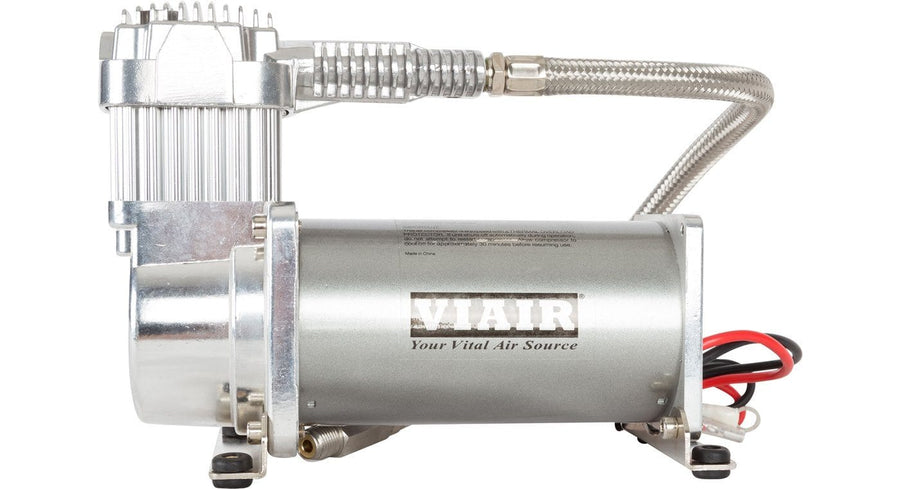

VIAIR Air Compressor (MPN: AC-380)

Efficiently fills 5 Gallon tanks to 200 PSI with advanced features.

The VIAIR Air Compressor is designed for stationary use, providing a maximum working pressure of 200 PSI. With an air flow rating of 1.58 cubic feet per minute at 0 PSI, this compressor is suitable for various pneumatic applications including tire inflation and air suspension systems. Its oil-less design and permanent magnetic motor ensure reliable performance and durability, making it a dependable choice for users requiring consistent air supply.

This compressor features a 5-gallon tank and operates on a 12-volt power source, making it versatile for different setups. The gearless direct drive motor and high-performance PTFE piston ring contribute to its efficiency and longevity. Additionally, the automatic reset thermal overload protector enhances safety during operation, preventing overheating.

Included with the compressor is a remote mountable intake filter assembly, allowing for flexible installation while keeping the air filter protected from moisture and debris. The stainless steel 1/4 inch braided leader hose with a check valve ensures secure connections and fast installation. Overall, the VIAIR Air Compressor combines performance and convenience, making it a valuable tool for various air supply needs.

Features

• Permanent Magnetic Motor
• Oil-Less Design
• High-Performance PTFE Piston Ring
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates With Vibration Isolators
• Stainless Steel 1/4 Inch Braided Leader Hose
• Remote Mountable Intake Filter Assembly

Specifications

• Manufacturer: Horn Blasters
• Manufacturer Part Number: AC-380
• Condition: New
• Type: On-Board
• Maximum Pressure Rating (PSI): 200 Pounds Per Square Inch
• Air Flow Rating: 1.58 Cubic Feet Per Minute
• Power Source: 12 Volt
• Amperage: 23 Amp
• Includes Pressure Gauge: No
• Color: Pewter

Technical Documents

• 38033-48043_Manual.pdf
