VIAIR Air Compressor (MPN: AC-325)

Powerful and efficient compressor for various pneumatic applications.

The VIAIR Air Compressor is designed for stationary use, providing a maximum working pressure of 150 PSI. With an impressive air flow rating of 1.59 CFM at 0 PSI, this compressor is suitable for a range of pneumatic applications including air lockers, air horns, and tire inflation. Its 5-gallon tank allows for efficient operation, making it a reliable choice for medium-duty tasks.

This compressor features a permanent magnetic motor and an oil-less design, ensuring low maintenance and high performance. The gearless direct drive motor and anodized aluminum alloy cylinder contribute to its durability and efficiency. Additionally, the automatic reset thermal overload protector enhances safety during operation.

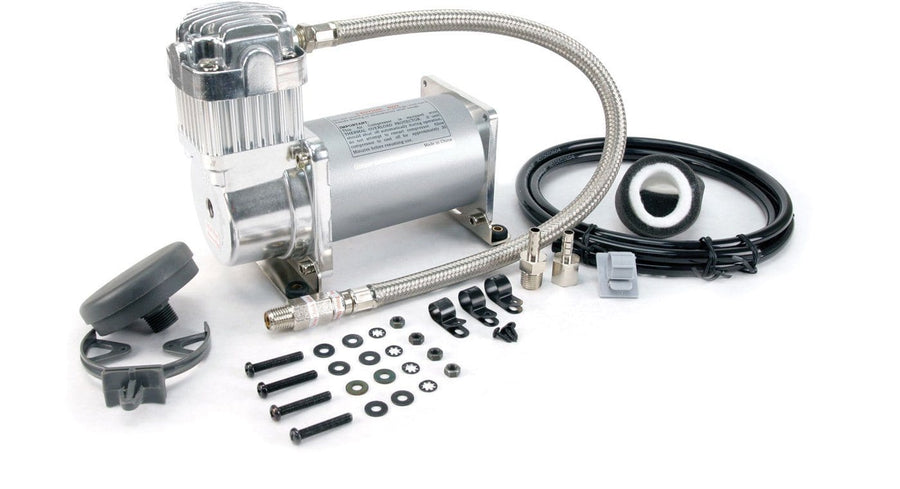

Installation is straightforward with the included 1/4 inch NPT stainless steel braided leader hose and check valve. The remote mountable intake filter assembly allows for flexible placement, keeping the filter away from moisture and debris. This feature, along with the mounting plates equipped with vibration isolators, ensures stable and effective performance in various environments.

Features

• Permanent Magnetic Motor
• Oil-Less Design
• High-Performance PTFE Piston Ring
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates With Vibration Isolators
• Stainless Steel 1/4 Inch Braided Leader Hose
• Remote Mountable Intake Filter Assembly

Specifications

• Manufacturer: Horn Blasters
• Manufacturer Part Number: AC-325
• Condition: New
• Type: On-Board
• Maximum Pressure Rating (PSI): 150 Pounds Per Square Inch
• Air Flow Rating: 1.59 Cubic Feet Per Minute
• Power Source: 12 Volt
• Amperage: 21 Amp
• Includes Pressure Gauge: No
• Color: Silver

Technical Documents

• 32530_32533_32534_32538_35030_35033_40040_45040_Manual.pdf
