VIAIR Air Compressor (MPN: AC-280K)

Reliable performance for medium-duty pneumatic applications.

The VIAIR Air Compressor is designed for stationary use, providing a maximum working pressure of 150 PSI. With a flow rate of 1.59 CFM at 0 PSI, this compressor is suitable for various medium-duty pneumatic tasks, including air lockers and emergency tire inflation. The 2.5-gallon tank allows for efficient operation, recharging from 110 to 150 PSI in just 1 minute and 36 seconds while drawing only 19 Amperes from the battery.

Constructed with a permanent magnetic motor and an oil-less design, the VIAIR Air Compressor features a high-performance PTFE piston ring and a gearless direct drive motor for enhanced reliability. The anodized aluminum alloy cylinder ensures durability, while the automatic reset thermal overload protector adds an extra layer of safety during operation. The compressor is equipped with mounting plates that include vibration isolators for stable installation.

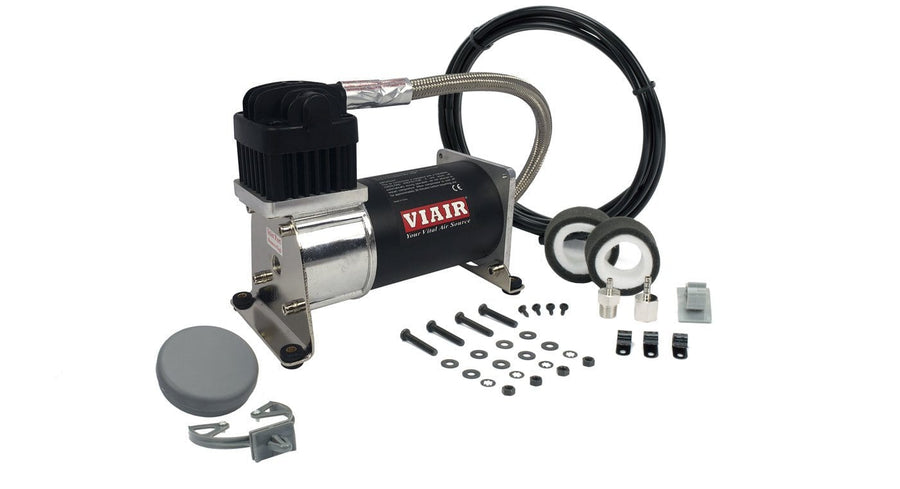

Included with the compressor is a stainless steel 1/4 inch braided leader hose and a remote mountable intake filter assembly, making it versatile for various setups. This unit is an excellent choice for those seeking a dependable air compressor for their pneumatic needs.

Features

• Permanent Magnetic Motor
• Oil-Less Design
• High-Performance PTFE Piston Ring
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates With Vibration Isolators
• Stainless Steel 1/4 Inch Braided Leader Hose
• Remote Mountable Intake Filter Assembly

Specifications

• Manufacturer: Horn Blasters
• Manufacturer Part Number: AC-280K
• Condition: New
• Type: On-Board
• Maximum Pressure Rating (PSI): 150 Pounds Per Square Inch
• Air Flow Rating: 1.59 Cubic Feet Per Minute
• Power Source: 12 Volt
• Amperage: 19 Amp
• Includes Pressure Gauge: No
• Color: Black

Technical Documents

• 28021_Manual.pdf
