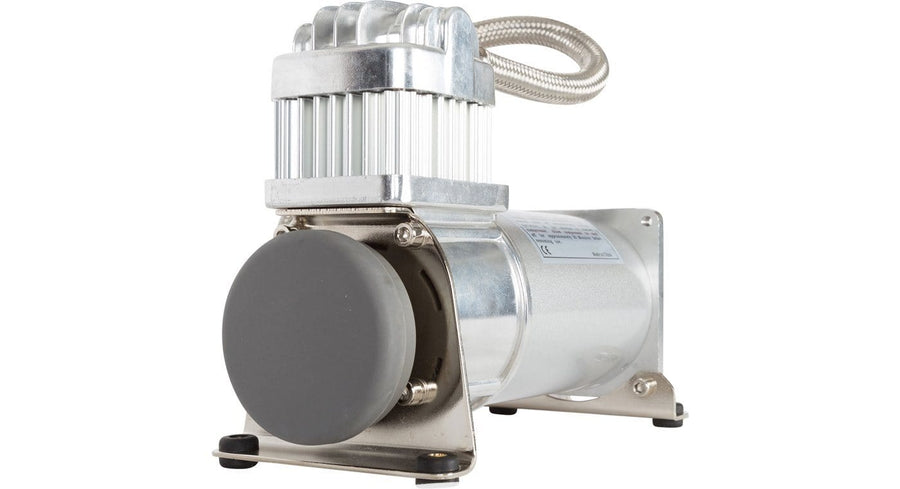

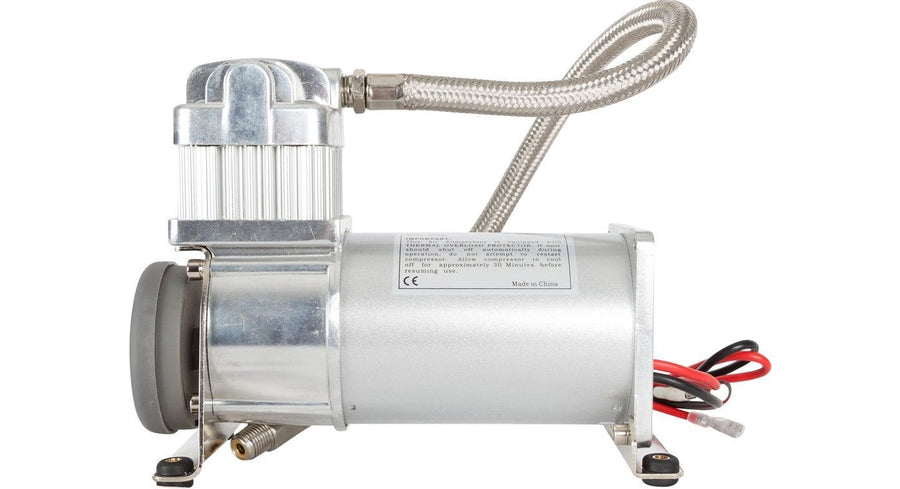

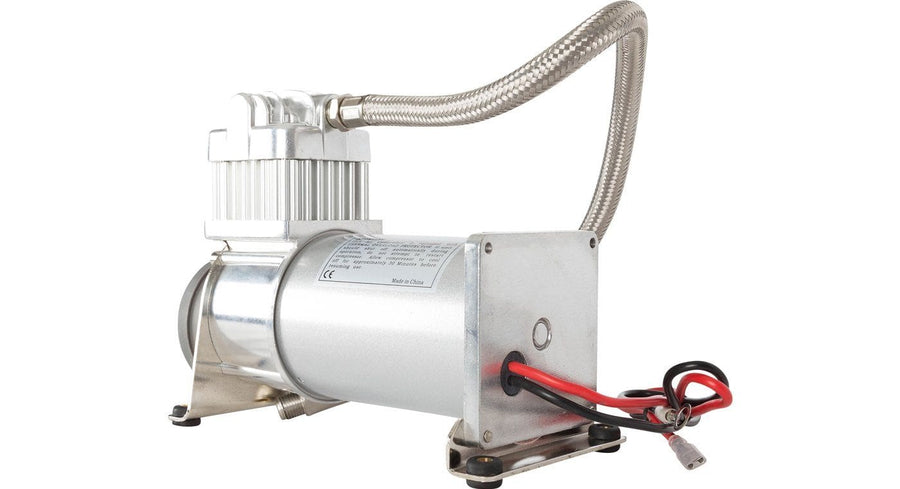

VIAIR Air Compressor (MPN: AC-280)

Reliable performance for medium-duty pneumatic applications.

The VIAIR Air Compressor is designed for stationary use, providing a maximum working pressure of 150 PSI. With a flow rate of 1.59 Cubic Feet Per Minute at 0 PSI, this compressor is suitable for various medium-duty pneumatic tasks, including air lockers and tire inflation. The unit features a 2.5-gallon tank and operates on a 12-volt power source, making it efficient for demanding applications.

Constructed with a permanent magnetic motor and an oil-less design, the VIAIR Air Compressor ensures durability and low maintenance. Its high-performance PTFE piston ring and gearless direct drive motor contribute to its reliability and efficiency. The anodized aluminum alloy cylinder enhances the compressor's longevity, while the automatic reset thermal overload protector safeguards against overheating.

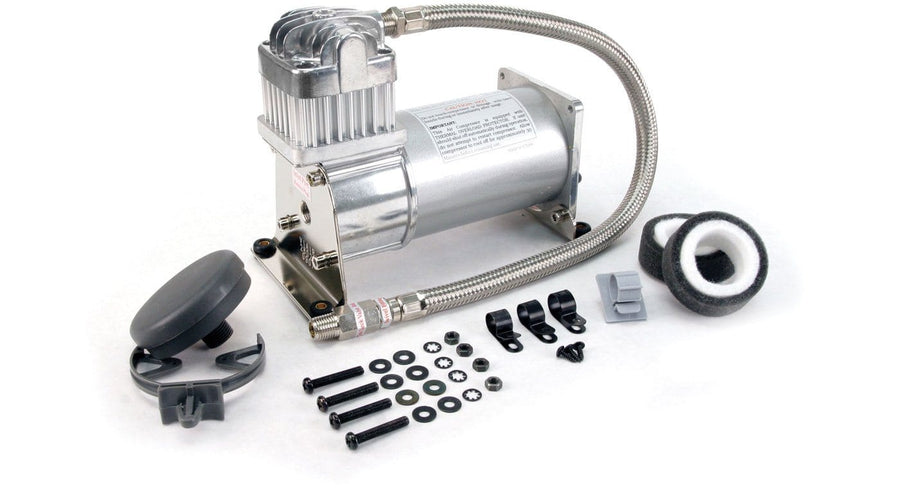

Included with the compressor are a stainless steel 1/4 inch braided leader hose and a remote mountable intake filter assembly. The mounting plates come equipped with vibration isolators, ensuring stable operation during use. This compressor is an excellent choice for those seeking a robust and efficient solution for their pneumatic needs.

Features

• Permanent Magnetic Motor
• Oil-Less Design
• High-Performance PTFE Piston Ring
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates With Vibration Isolators
• Stainless Steel 1/4 Inch Braided Leader Hose
• Remote Mountable Intake Filter Assembly

Specifications

• Manufacturer: Horn Blasters
• Manufacturer Part Number: AC-280
• Condition: New
• Type: On-Board
• Maximum Pressure Rating (PSI): 150 Pounds Per Square Inch
• Air Flow Rating: 1.59 Cubic Feet Per Minute
• Power Source: 12 Volt
• Amperage: 19 Amp
• Includes Pressure Gauge: No
• Color: Silver

Technical Documents

• 28021_Manual.pdf
