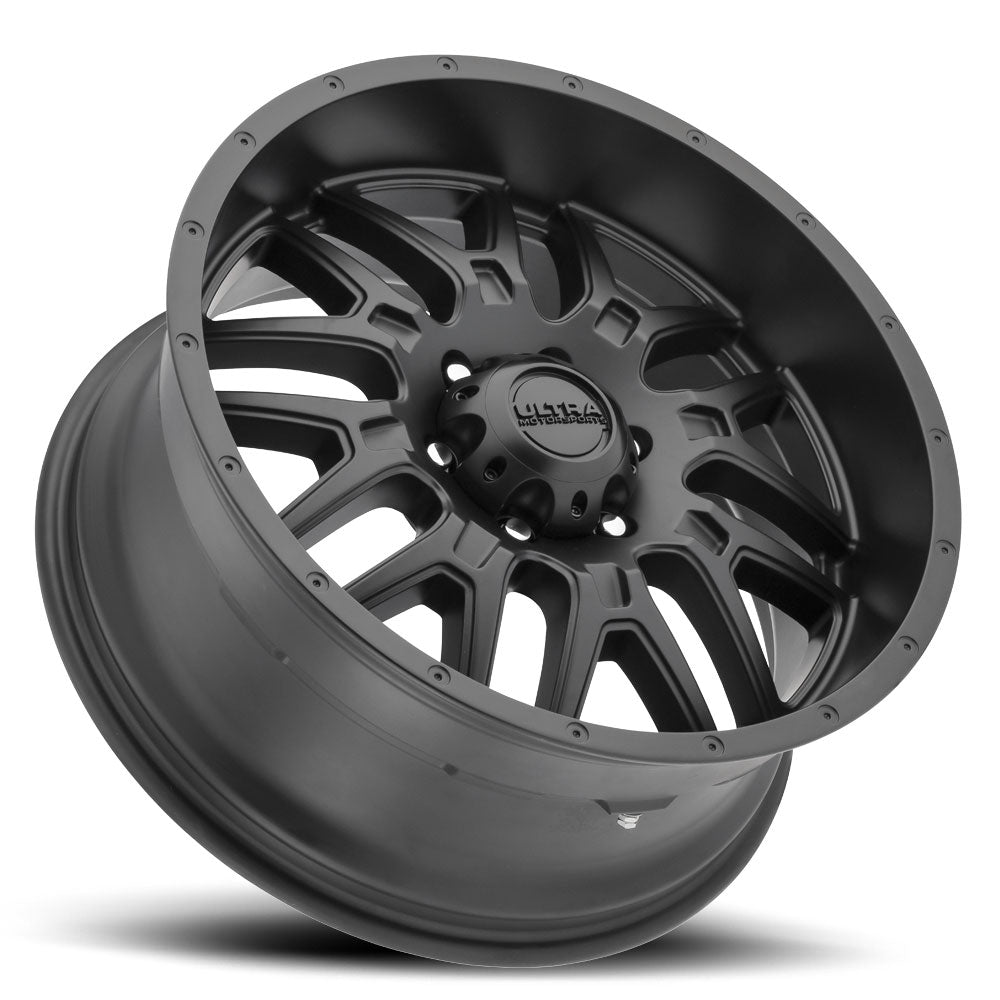

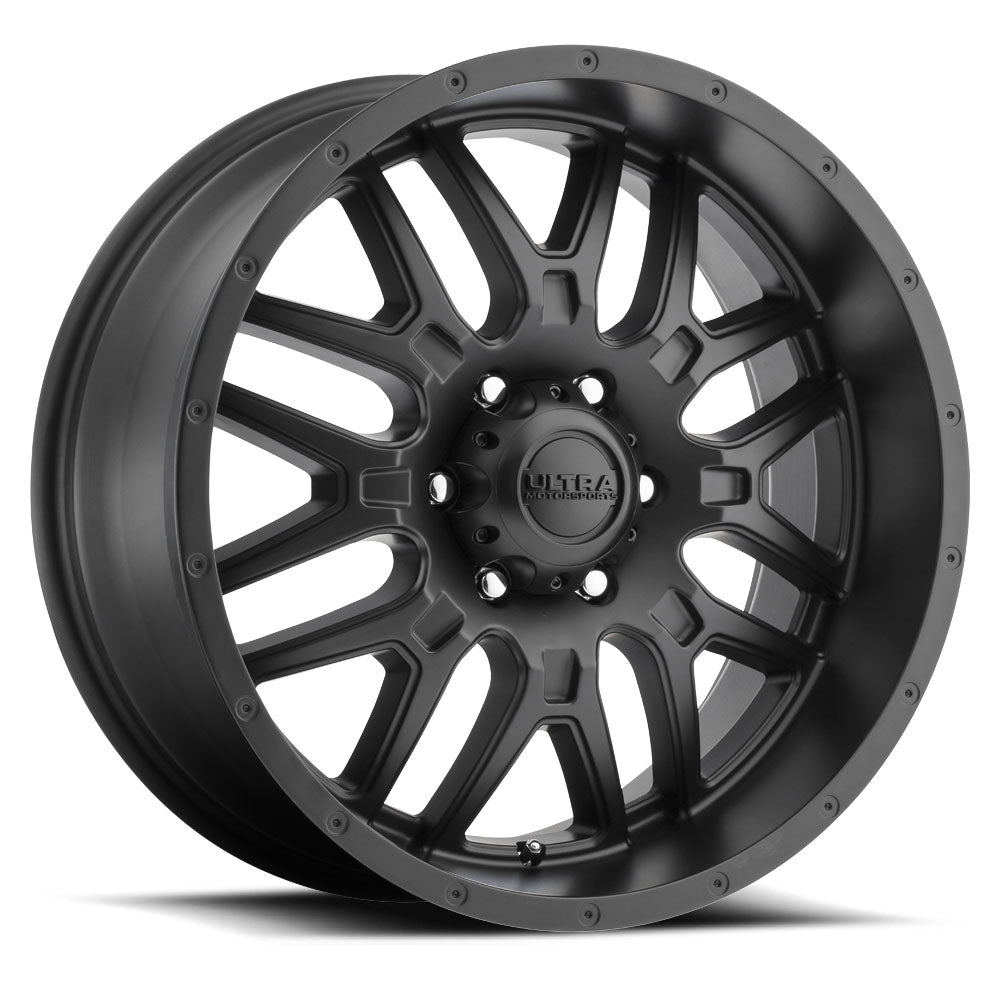

Ultra Wheel 203 20 Inch Wheel (MPN: 203-2163SB25)

Durable 20 inch wheel with sleek satin black finish and high load capacity.

The Ultra Wheel 203 is a robust 20 inch wheel designed for strength and durability. Constructed from one piece cast aluminum, it features a satin black finish that is clear coated for added protection. With a load capacity of 2500 pounds, this wheel is engineered to handle demanding conditions while maintaining a stylish appearance. The 8 double spoke design not only enhances aesthetics but also contributes to the overall performance of the wheel. Additionally, it is compatible with Tire Pressure Monitoring Systems, ensuring optimal safety and efficiency.

Features

• Satin Black Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• Ultra Motorsports Logo Center Cap

Specifications

• Manufacturer: Ultra Wheel
• Manufacturer Part Number: 203-2163SB25
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -25
• Backspacing: 4.52
• Finish: Clear Coated Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 6x5.31
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 6x135
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 87.00
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Double Spoke
• With Inserts: No
• Load Capacity: 2500
• Size: 20x10
• Max Tire Diameter: 42
• Center Cap Design: Ultra Motorsports Logo
• Finish Warranty: 1 Year
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 2004-2019 Ford F-150

Technical Documents

• Catalog_Viewer_-_ULTRA-wheel_warranty.pdf
