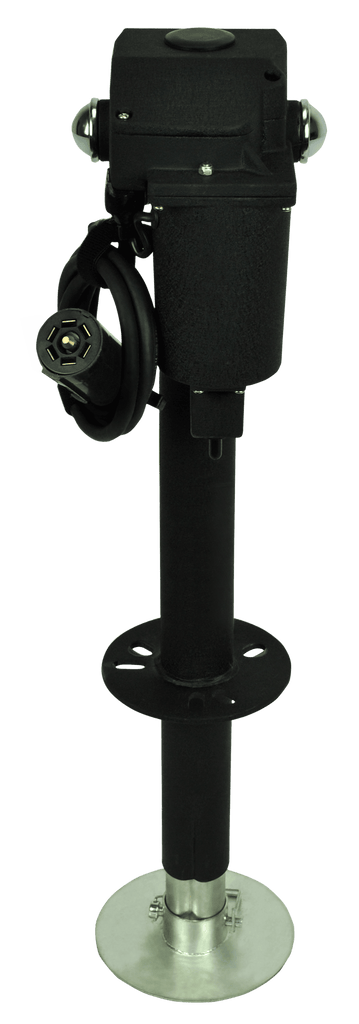

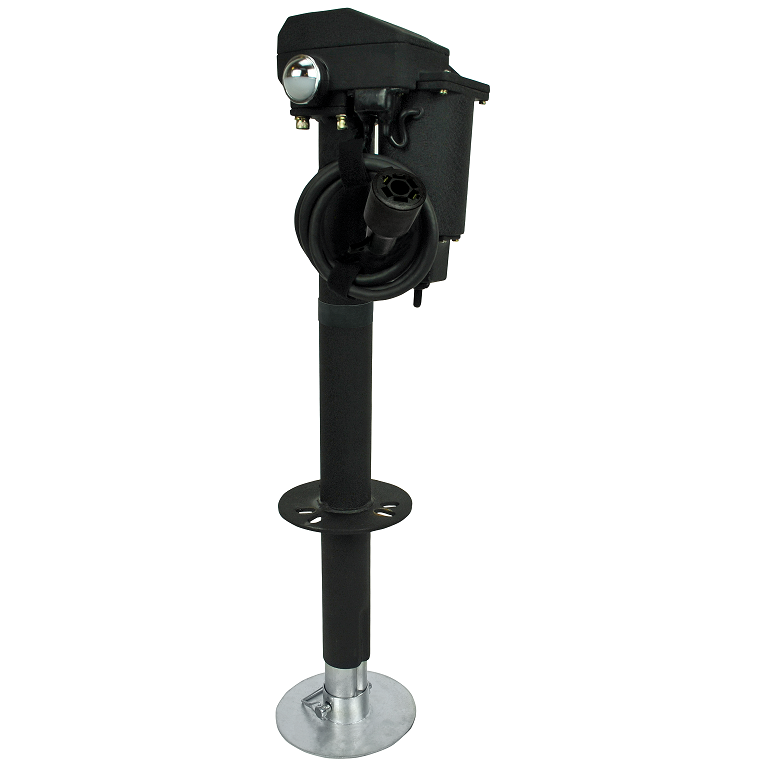

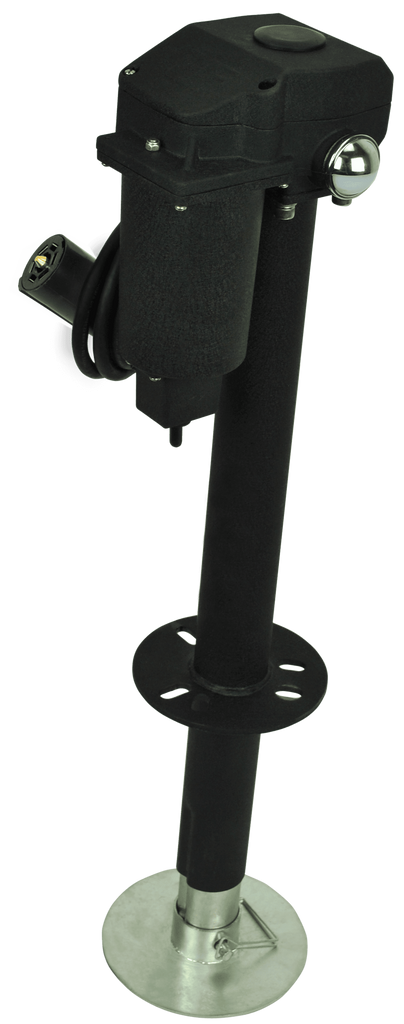

Ultra-Fab Products Trailer Tongue Jack (MPN: 38-944037)

Efficient electric jack for easy trailer lifting and stabilization.

The Ultra-Fab Products Trailer Tongue Jack is designed for efficient operation with a 12 Volt electric system, allowing users to raise and lower their trailers with the push of a button. This jack is compatible with various trailer types, including travel trailers, pop-up campers, and utility trailers, making it a versatile choice for many applications. With a lifting capacity of 3500 pounds and a total travel of 18 inches, it provides reliable performance for stabilizing and leveling trailers.

Constructed from durable steel and featuring a black wrinkle powder coat finish, this jack is built to withstand the elements and provide long-lasting service. The patented Zerk fitting allows for easy greasing of the screw rod, ensuring smooth operation over time. The water-resistant motor and gear housing enhance its reliability, while the 6-inch diameter footplate prevents sinking or tilting during use.

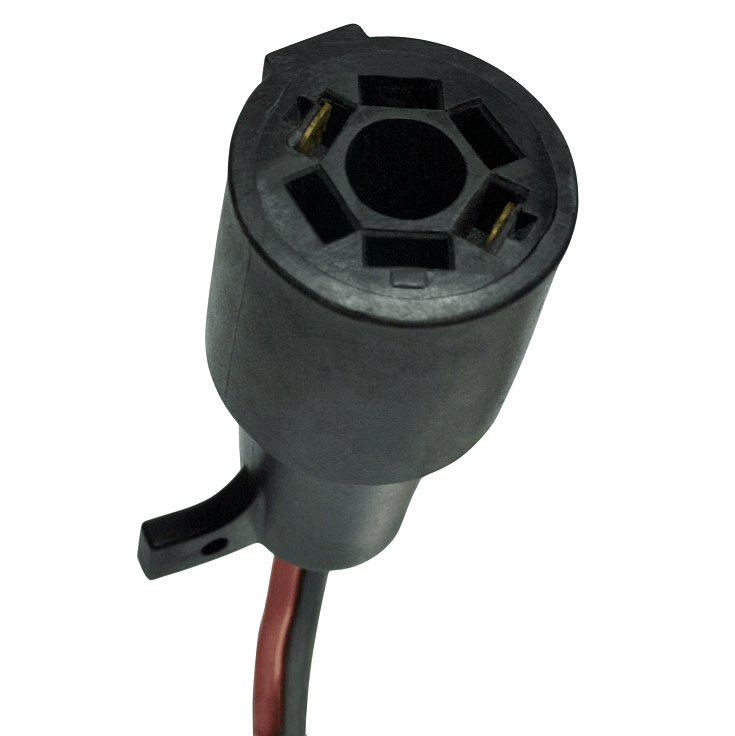

Installation is straightforward, utilizing existing bolts on the trailer frame, and the jack operates seamlessly with a 7-way power plug connected to the towing vehicle. In the event of a power failure, the jack can be manually operated using the included crank handle or a 9/16 inch deep-well socket. The Ultra-Fab Products Trailer Tongue Jack is an essential tool for any trailer owner looking for convenience and efficiency.

Features

• Purpose: Raise And Lower Your Jack With The Push Of A Button; Perfect For All Known Trailers Along Travel Trailers, Pop-Up Campers, Utility Trailers, Cargo Trailers And Other Types Of Trailers
• Capacity: 3500 Pound Capacity
• Durable: Patented Zerk Fitting Allows For Greasing Of Rod; Heavy-Duty Construction And Durable Powder Coat Finish For Years Of Reliable Use
• All Steel Gears For Maximum Reliability; Water Resistant Motor And Gear Housing
• Super Stable: Features 6 Inch Diameter Footplate To Prevent Sinking Or Tilting
• Fast: Travels 10 Inch In 50 Seconds
• Lighting: Hook-Up And Breakdown At Night Simple Due To Our Dual Site-Lites
• Power: 12 Volt DC Operation; When There Is No Power Available The Jack Can Be Operated By Using The Provided Crank Handle Or Using A 9/16 Inch Deep-Well Socket
• Easy Installation And Operation: Simply Flip A Switch To Lift, Level And Stabilize The Trailer

Specifications

• Manufacturer: Ultra-Fab Products
• Manufacturer Part Number: 38-944037
• Operation Type: Electric
• Capacity: 3500 Pound
• Maximum Lift: 18 Inch
• Mounting Type: Bolt-On
• Type: Round Topwind
• Number Of Wheels: Without Wheel
• Color/ Finish: Black Powder Coated
• Swivel: No
• Retracted Height: 9-1/2 Inch
• Extended Height: 27-1/2 Inch
• Material: Steel
• Estimated Install Time (Hours): 0.5

Technical Documents

• 38-944037-INSTALL-INSTRUCTIONS-6162022.pdf
