Efficient electric jack for easy trailer lifting and stabilization.

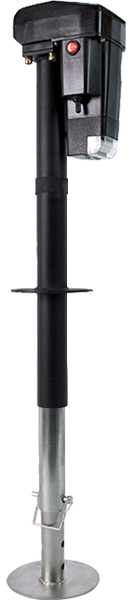

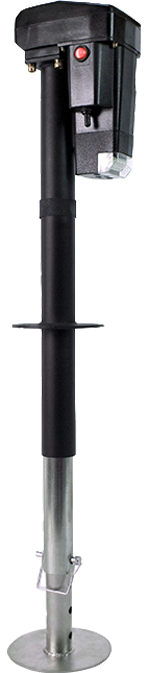

The Ultra-Fab Products Trailer Tongue Jack is designed for efficient operation with a 12 Volt electric system, allowing users to raise and lower their trailers with the push of a button. This jack is compatible with various trailer types, including travel trailers, pop-up campers, and utility trailers, making it a versatile choice for different towing needs. With a robust lifting capacity of 4000 pounds and a travel range of 23-1/4 inches, it provides reliable performance for stabilizing and leveling trailers.

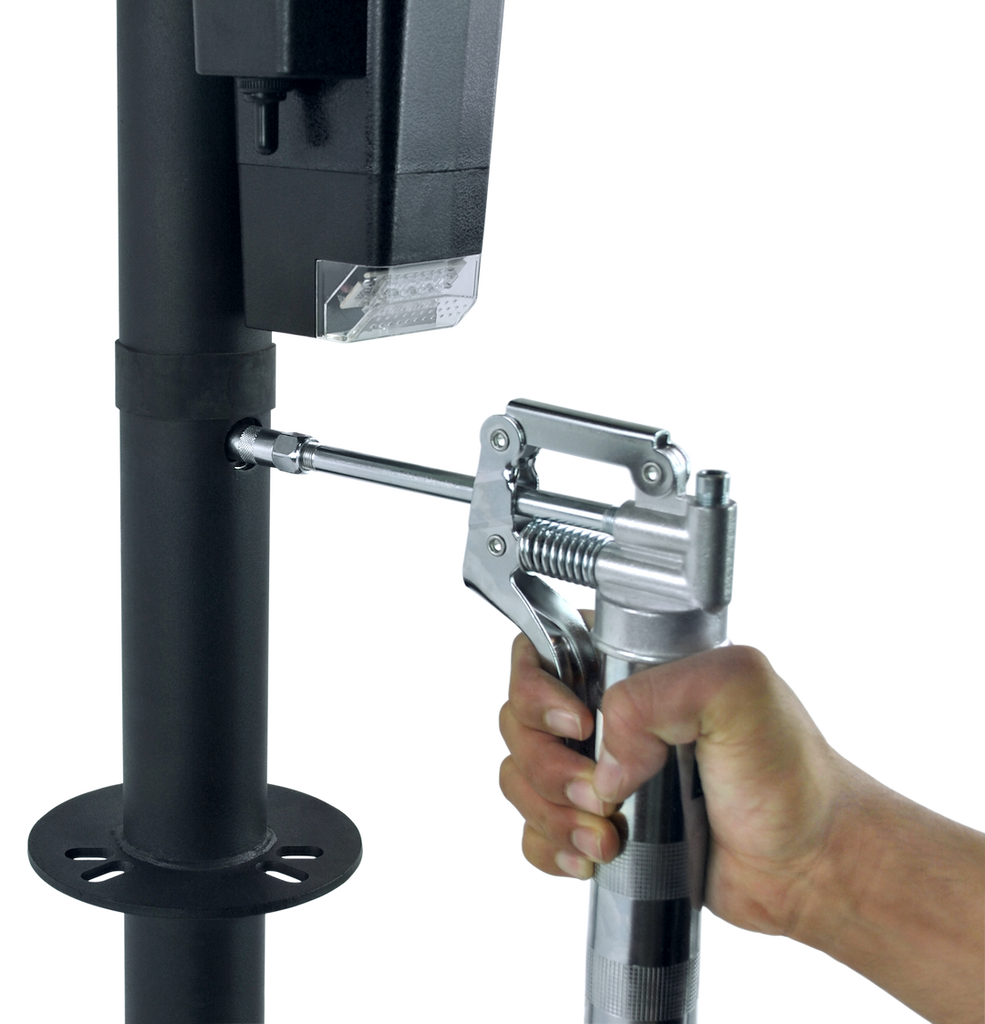

Constructed from durable steel and featuring a black wrinkle powder coat finish, this jack is built to withstand the elements and ensure long-lasting use. The patented Zerk fitting allows for easy greasing of the screw rod, while the all-steel gears enhance reliability. The water-resistant motor and gear housing further contribute to its durability, making it suitable for various weather conditions.
The jack includes a 6-inch diameter footplate to prevent sinking or tilting during operation, ensuring stability on different surfaces. It can travel 10 inches in just 40 seconds, facilitating quick adjustments. For nighttime use, the integrated Dual Site-Lites provide visibility, making hook-up and breakdown straightforward. In case of power loss, the jack can be operated manually using the provided crank handle or a 9/16 inch deep-well socket, ensuring functionality in all situations.
Features
- Purpose: Raise And Lower Your Jack With The Push Of A Button; Perfect For All Known Trailers Along Travel Trailers, Pop-Up Campers, Utility Trailers, Cargo Trailers And Other Types Of Trailers
- Capacity: 4000 Pound Capacity
- Durable: Patented Zerk Fitting Allows For Greasing Of Rod; Heavy-Duty Construction And Durable Powder Coat Finish For Years Of Reliable Use
- All Steel Gears For Maximum Reliability; Water Resistant Motor And Gear Housing
- Super Stable: Features 6 Inch Diameter Footplate To Prevent Sinking Or Tilting
- Fast: Travels 10 Inch In 40 Seconds
- Lighting: Hook-Up And Breakdown At Night Simple Due To Our Dual Site-Lites
- Power: 12 Volt DC Operation; When There Is No Power Available The Jack Can Be Operated By Using The Provided Crank Handle Or Using A 9/16 Inch Deep-Well Socket
- Easy Installation And Operation: Simply Flip A Switch To Lift, Level And Stabilize The Trailer
Specifications
- Manufacturer: Ultra-Fab Products
- Manufacturer Part Number: 38-944014
- Operation Type: Electric
- Capacity: 4000 Pound
- Maximum Lift: 18 Inch
- Mounting Type: Bolt-On
- Type: Round Topwind
- Number Of Wheels: Without Wheel
- Color/ Finish: Black Powder Coated
- Swivel: No
- Retracted Height: 9-1/2 Inch
- Extended Height: 33 Inch
- Clearance: 12-1/2 Inch
- Material: Steel
- Estimated Install Time (Hours): 0.5
