Efficient and powerful landing gear for fifth wheel trailers.

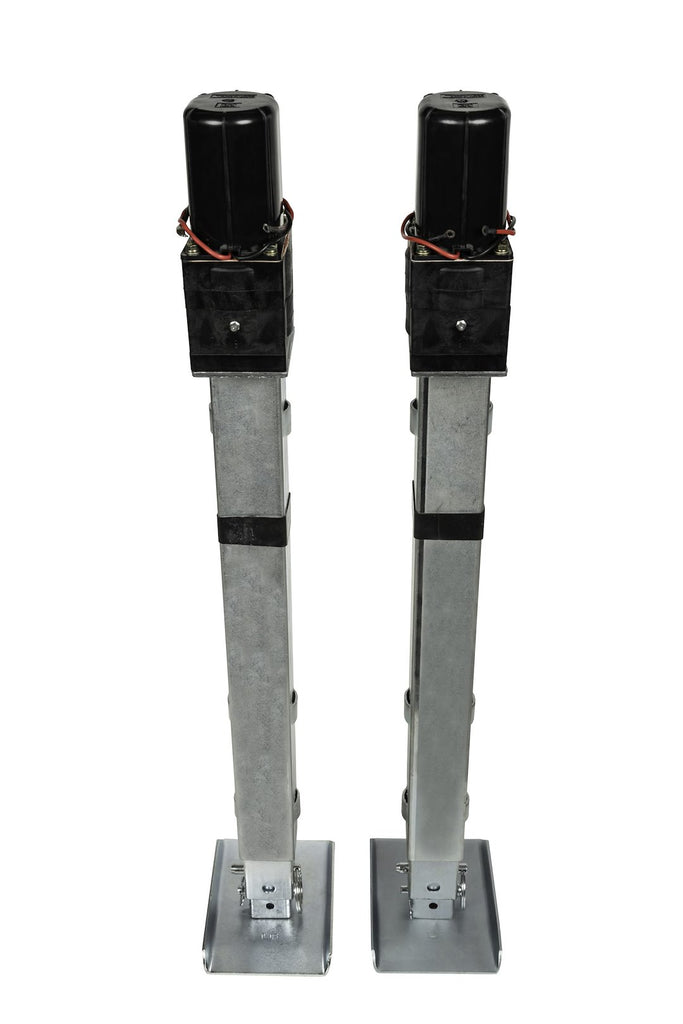

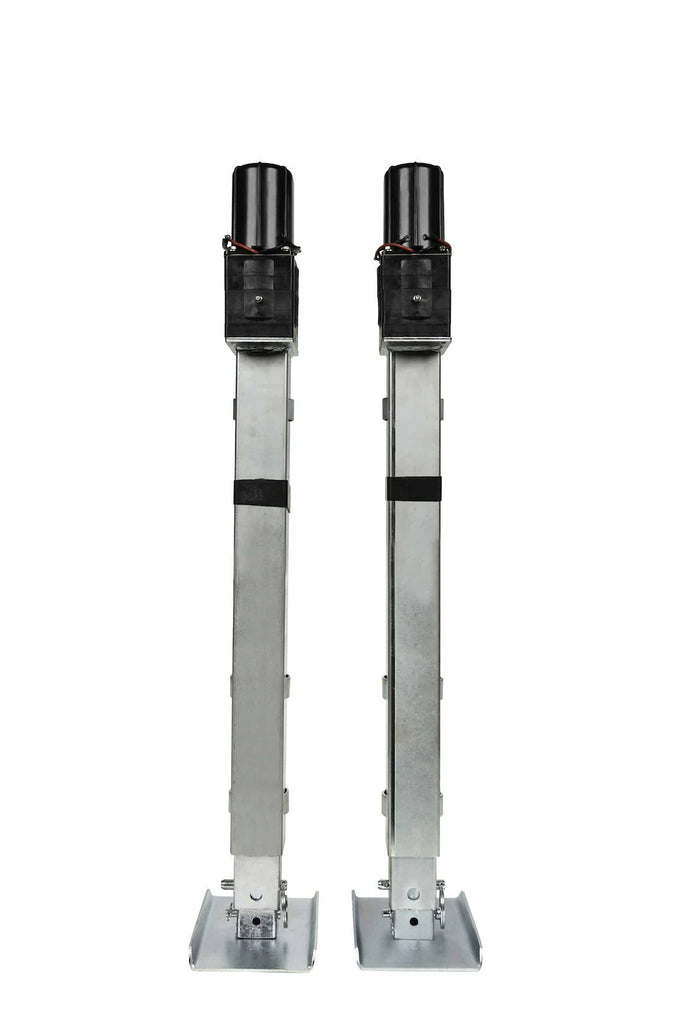

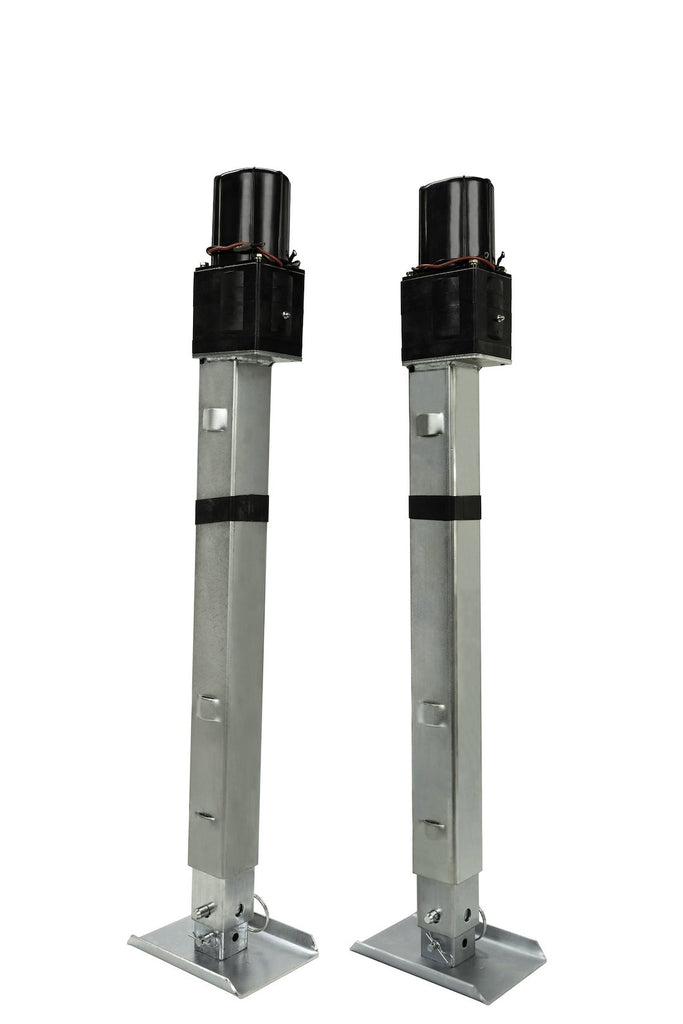

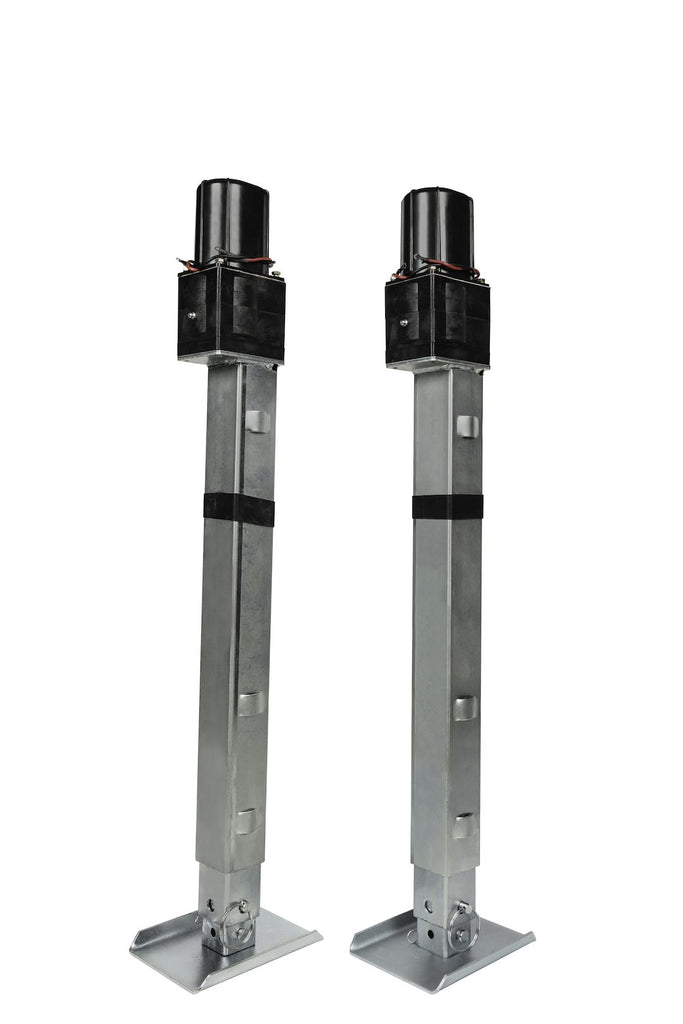

The Ultra-Fab Products Trailer Landing Gear is engineered for fifth wheel trailers, offering a robust lifting capacity of 12000 pounds combined. This system features two independent legs, each capable of supporting up to 6000 pounds, ensuring stability and level support even on uneven terrain. The design includes a built-in clutch that prevents overextension, enhancing safety during operation.
With a convenient waterproof switch, the landing gear eliminates the need for manual cranking, streamlining the setup process. The legs operate independently, allowing for precise adjustments to reach the ground effectively. The large 8 inch by 5 inch footpads are designed to distribute weight evenly, preventing sinking and tilting, which is crucial for maintaining trailer stability.
Installation is straightforward, as the landing gear comes with all necessary mounting brackets and hardware. The absence of a cross shaft increases headroom, making it easier to maneuver around the trailer. This landing gear system is a practical solution for those seeking reliable and efficient support for their fifth wheel trailers.
Features
- Independent Leg Operation For True Stability
- Features Two Powerful Legs Allow For Lifting, Leveling And Stabilizing

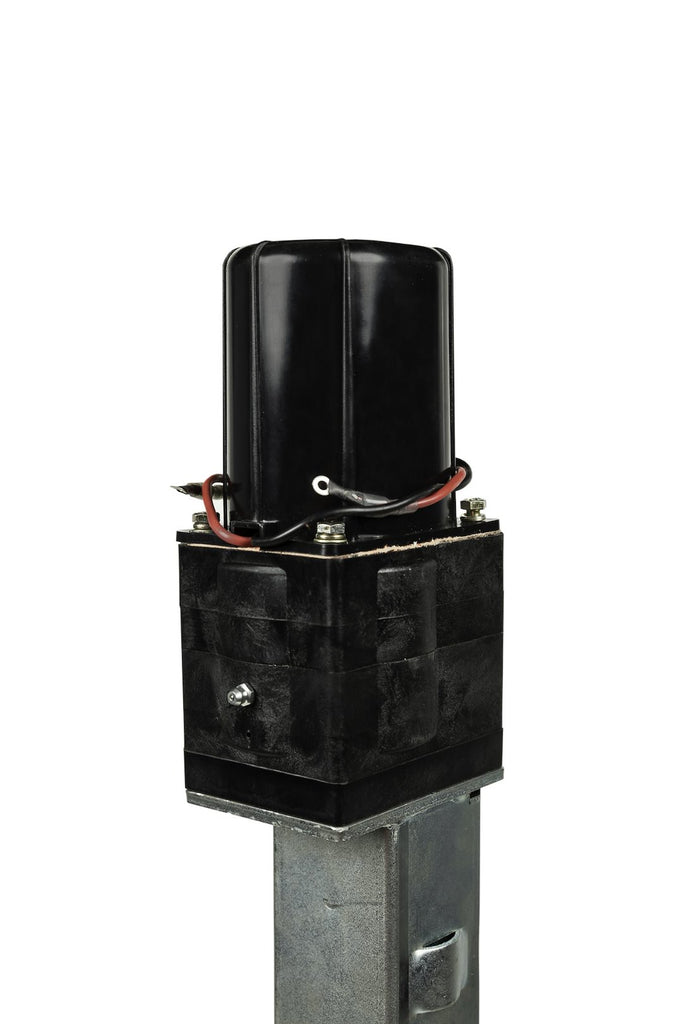

- No More Hand Cranking Just Flip The Switch
- Built-In Clutch Prevents Overextension
- Features 12000 Pound Lifting Capacity And 6000 Pound Per Leg

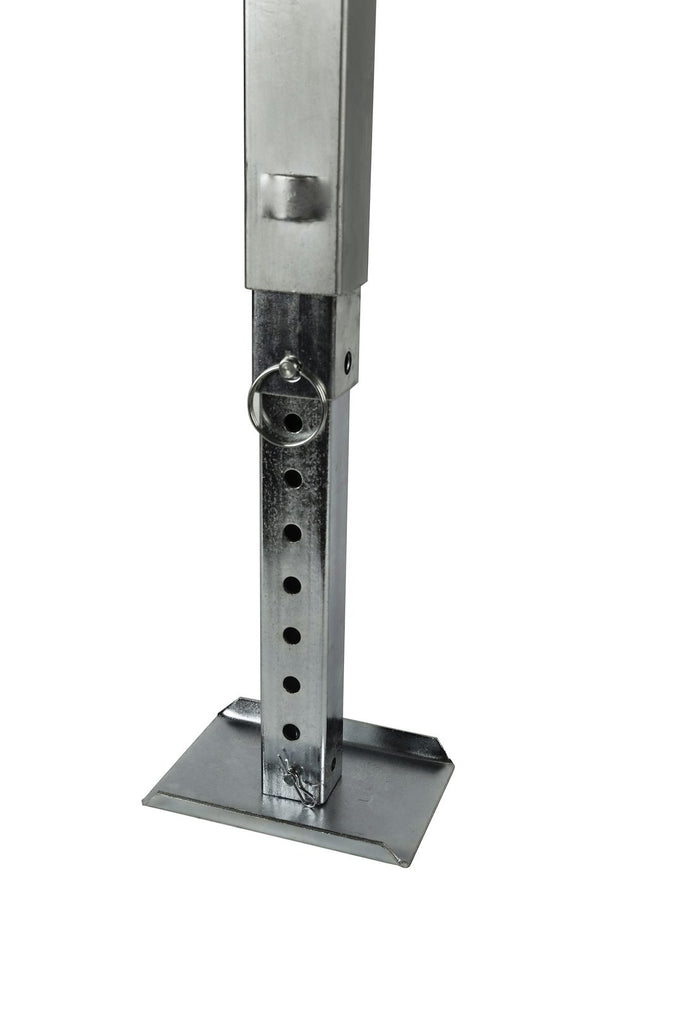

- Huge 8 Inch x 5 Inch Footpad To Prevent Sinking And Tilting
- No More Shoving Rocks Under One Leg
Specifications
- Manufacturer: Ultra-Fab Products
- Manufacturer Part Number: 17-943010
- Type: Fifth Wheel
- Lift Capacity: 12000 Pound
- Support Capacity: 6000 Pound
- Total Lift: 36 Inch
- Screw Travel: 21 Inch
- Footplate Length: 8 Inch
- Footplate Width: 5 Inch
- Lifting Speed: 4 Inch Per Minute
- Color: Black/ Silver
- Material: Steel
- Includes Switch Panel: Yes
- Includes Wiring Harness: Yes
- Includes Mounting Hardware: Yes
