Efficiently raise and lower trailers with advanced electric operation.

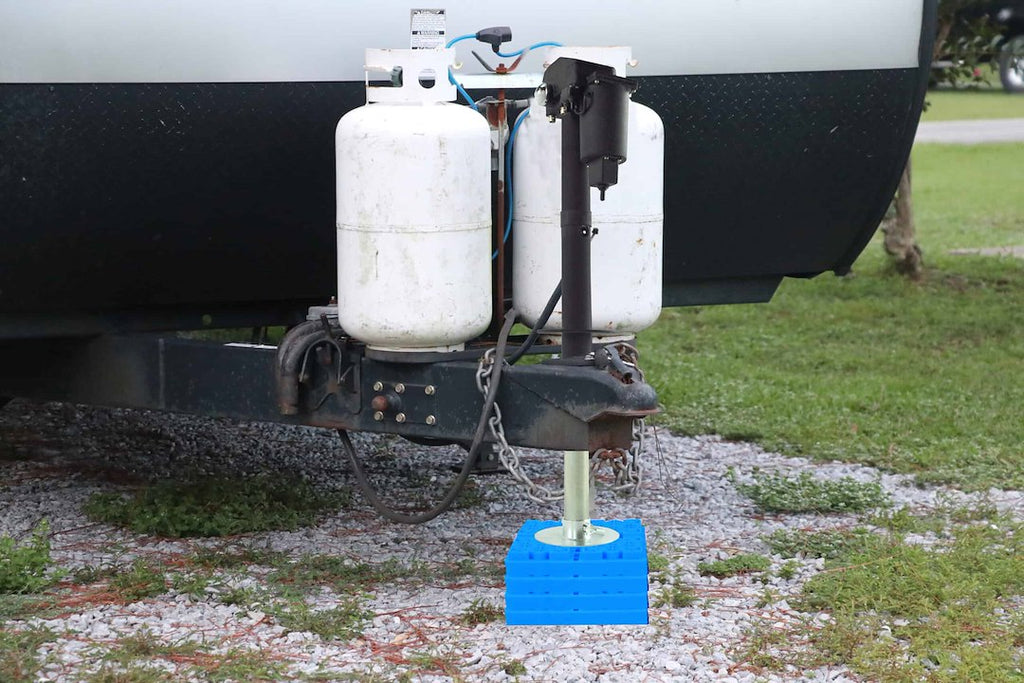

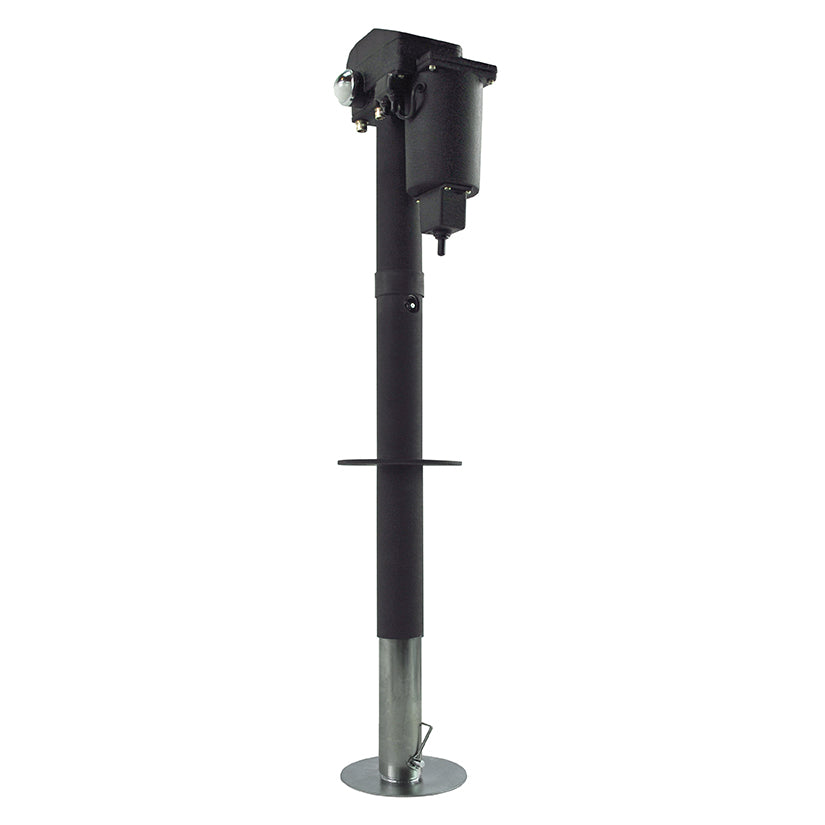

The Ultra-Fab Electric Trailer Tongue Jack is designed for efficient operation with a 12 Volt system, allowing users to raise and lower their trailers with the simple push of a button. This jack is compatible with all known trailers featuring 'A' Frame couplers with a 2-1/4 inch coupler hole, making it a versatile choice for various trailer types including travel trailers, pop-up campers, and utility trailers. With a robust lifting capacity of 3500 pounds, it ensures reliable performance for heavy loads.
Constructed from durable steel and finished with a black wrinkle powder coat, this jack is built to withstand the elements and provide long-lasting service. The patented zerk fitting allows for easy greasing of the inner rod, while all steel gears enhance reliability and performance. The jack features a 6 inch diameter footplate that provides stability, preventing sinking or tilting during operation.
For nighttime use, the dual site lights offer enhanced visibility, making hook-up and breakdown straightforward in low-light conditions. The jack also includes a manual override option, allowing operation without power using the provided crank handle or a 9/16 inch deep-well socket. With a total travel of 23-1/2 inches and a travel speed of 10 inches in just 50 seconds, the Ultra-Fab Electric Trailer Tongue Jack combines speed and efficiency for all your towing needs.
Features
- Purpose: Raise And Lower Your Jack With The Push Of A Button; Perfect For All Known Trailers Along Travel Trailers, Pop-Up Campers, Utility Trailers, Cargo Trailers And Other Types Of Trailers
- Capacity: 3500 Pound Capacity
- Durable: Patented Zerk Fitting Allows For Greasing Of Rod; Heavy-Duty Construction And Durable Powder Coat Finish For Years Of Reliable Use
- All Steel Gears For Maximum Reliability; Water Resistant Motor And Gear Housing
- Super Stable: Features 6 Inch Diameter Footplate To Prevent Sinking Or Tilting
- Fast: Travels 10 Inch In 50 Seconds
- Lighting: Hook-Up And Breakdown At Night Simple Due To Our Dual Site-Lites
- Power: 12 Volt DC Operation; When There Is No Power Available The Jack Can Be Operated By Using The Provided Crank Handle Or Using A 9/16 Inch Deep-Well Socket
- Easy Installation And Operation: Simply Flip A Switch To Lift, Level And Stabilize The Trailer
Specifications
- Manufacturer: Ultra-Fab Products
- Manufacturer Part Number: 38-944060
- Operation Type: Electric
- Capacity: 3500 Pound
- Maximum Lift: 18 Inch
- Mounting Type: Bolt-On
- Type: Round Topwind
- Number Of Wheels: Without Wheel
- Color/ Finish: Black Powder Coated
- Swivel: No
- Retracted Height: 25-1/2 Inch
- Extended Height: 31 Inch
- Material: Steel
- Estimated Install Time (Hours): 0.5
