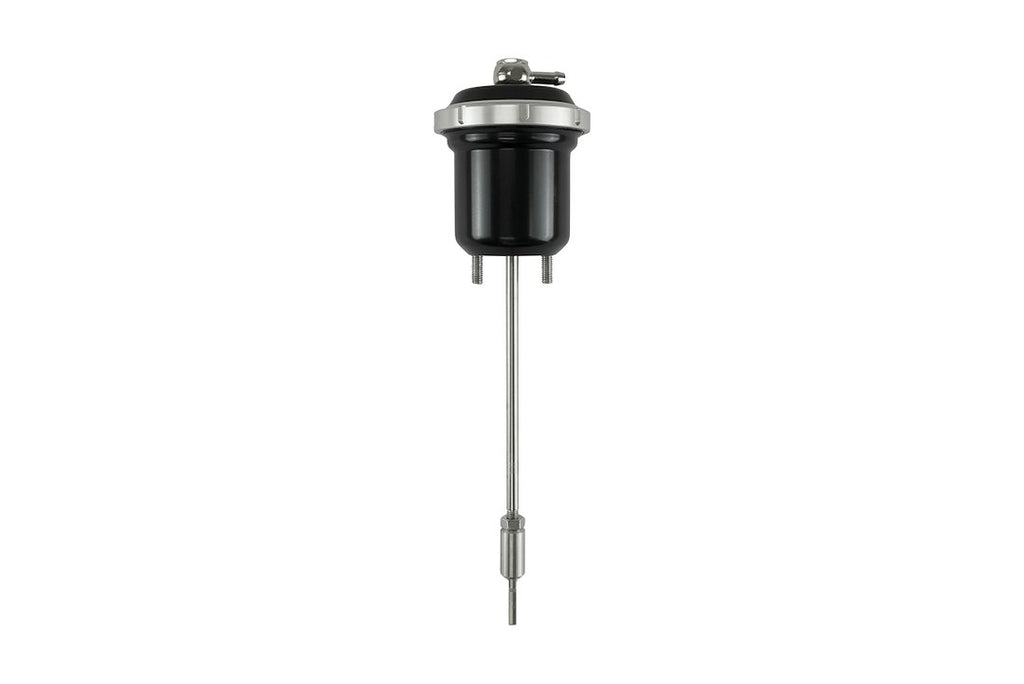

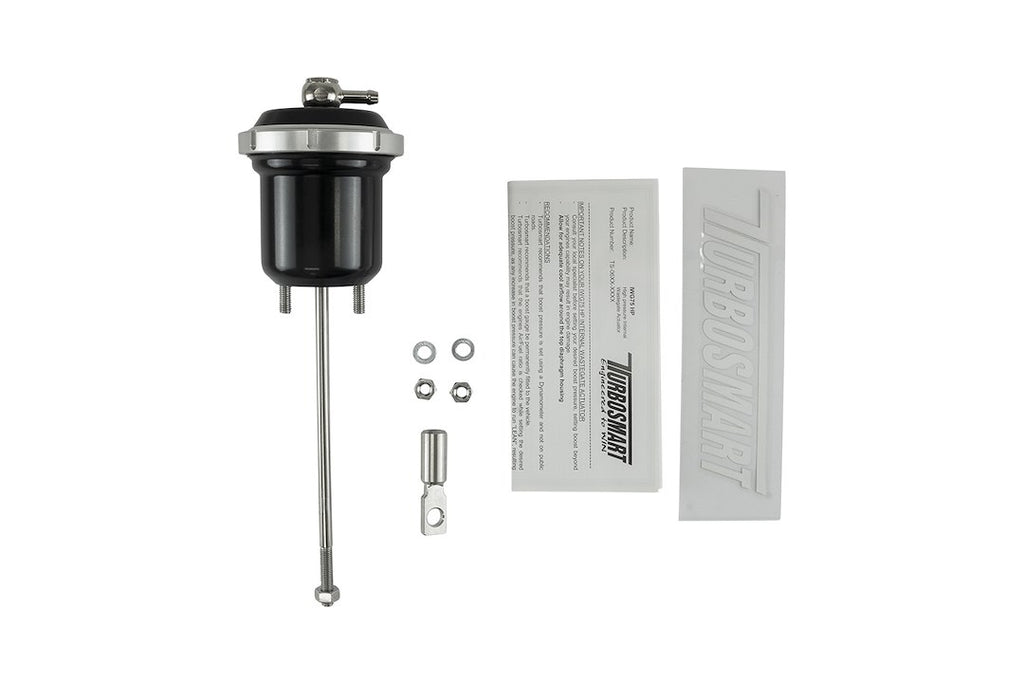

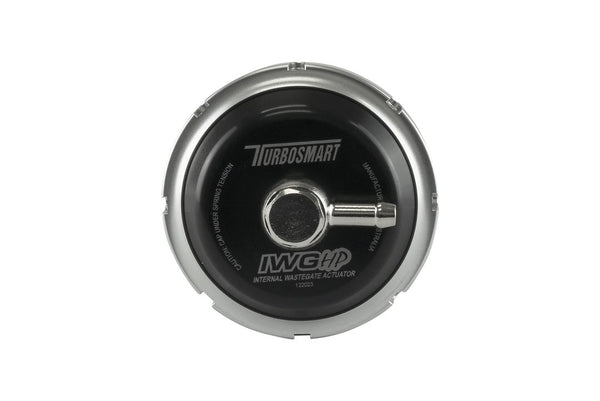

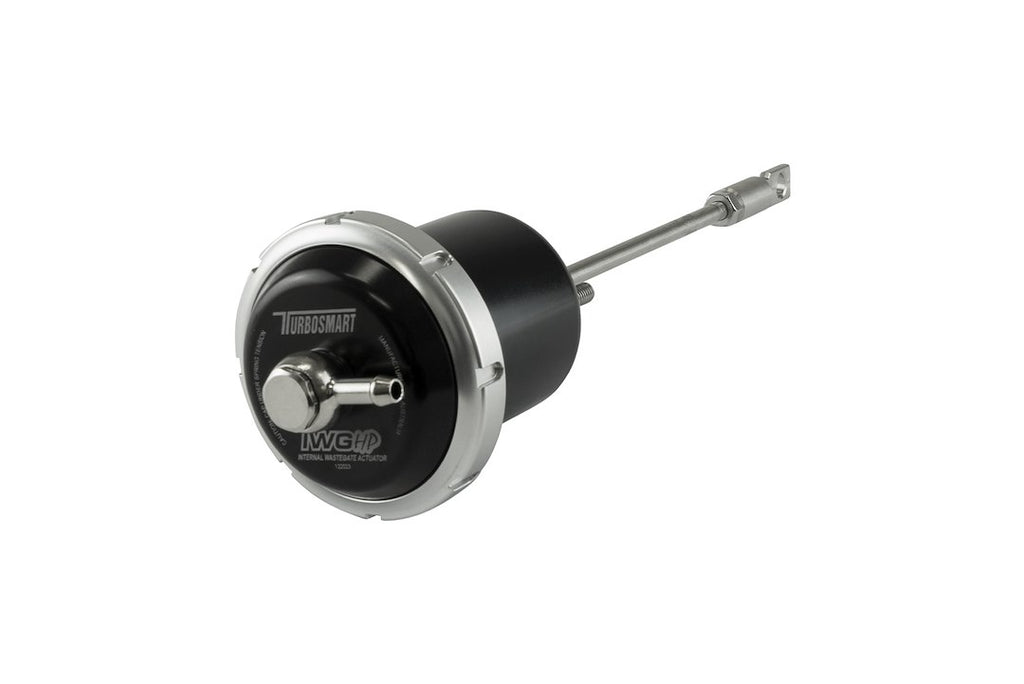

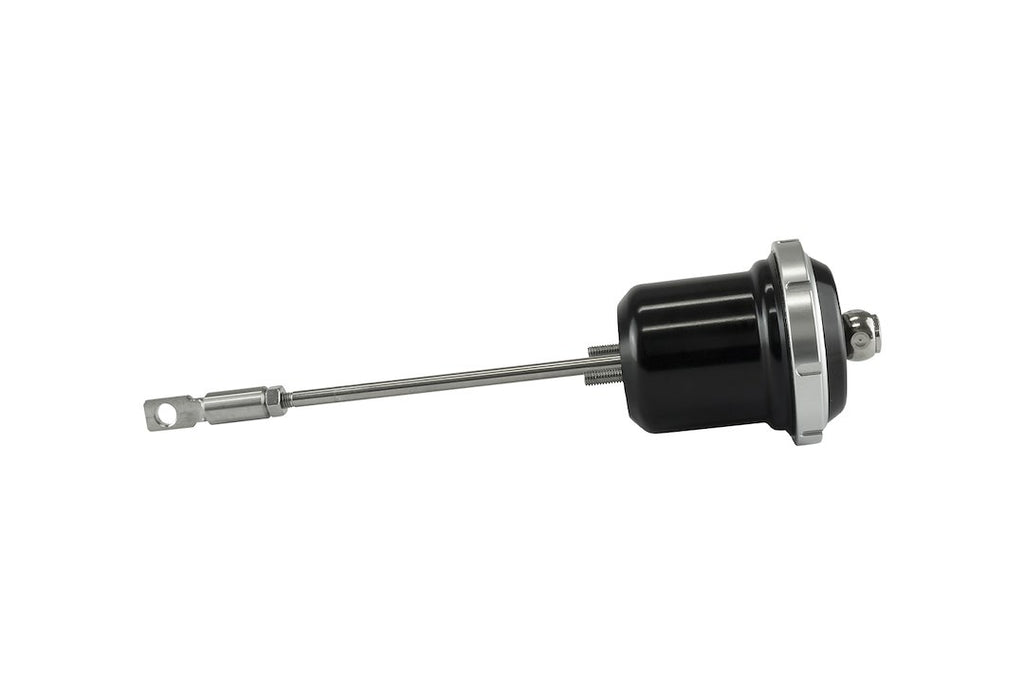

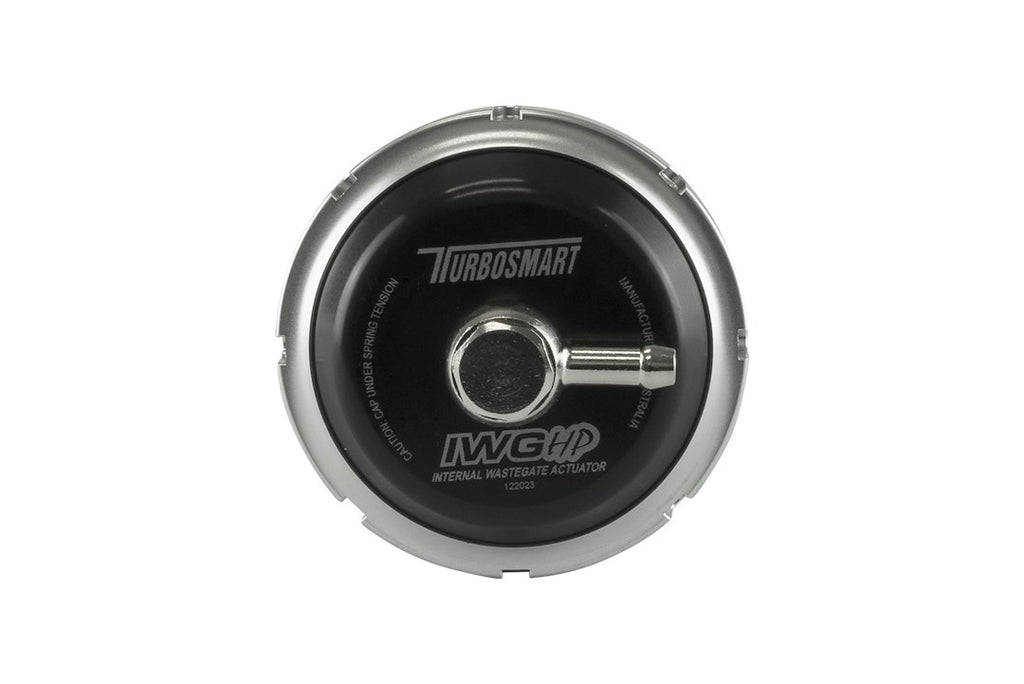

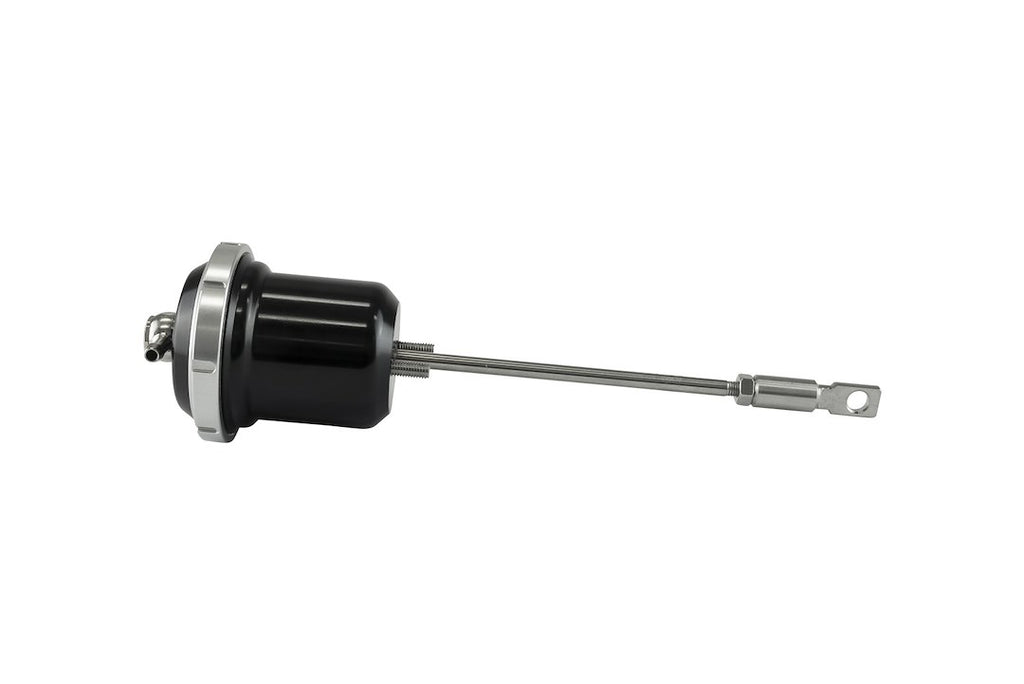

Turbo Smart Wastegate Actuator (MPN: TS-0626-1354)

Enhance turbo response with high-performance actuator for diesel applications.

The Turbo Smart Wastegate Actuator is engineered to optimize boost response for factory frame turbochargers. This actuator features an aluminum housing and a stainless steel rod and clevis, ensuring durability and performance under high-pressure conditions. With a pre-fitted base pressure of 35 PSI, it is designed to handle high boost pressures effectively, making it suitable for both racing and high boost turbo diesel applications.

The IWG75 Series of upgraded actuators offers an improved working ratio compared to factory equipment, resulting in enhanced sensitivity and responsiveness throughout the RPM range. This is achieved through an increase in the effective surface area of the diaphragm and modifications to the spring design, providing greater leverage against boost and backpressure forces. The actuator's anodized black finish adds to its aesthetic appeal while maintaining its robust functionality.

By upgrading to the Turbo Smart HP Actuator Series, users gain access to a range of mechanical spring options, allowing for customization based on specific performance needs. This actuator is a reliable choice for those seeking to improve their vehicle's turbo performance and overall efficiency.

Features

• Provides Better Turbo Response And Greater Sensitivity When Managing Boost Pressures
• Capable Of Handling High Boost Pressures
• Ideal For High Boost Turbo Diesel And Racing Applications
• Designed For Performance And Durability

Specifications

• Manufacturer: Turbo Smart
• Manufacturer Part Number: TS-0626-1354
• Type: Internal
• Finish: Anodized
• Color: Black
• Material: Aluminum

Compatibility / Fit

• 2000-2004 Dodge Ram 2500
• 2000-2004 Dodge Ram 3500

Technical Documents

• IWG75_HP_High_Pressure_Actuator_Instructions.pdf
• turbosmart-support-warranty.pdf
