High-flow external wastegate with advanced boost control features.

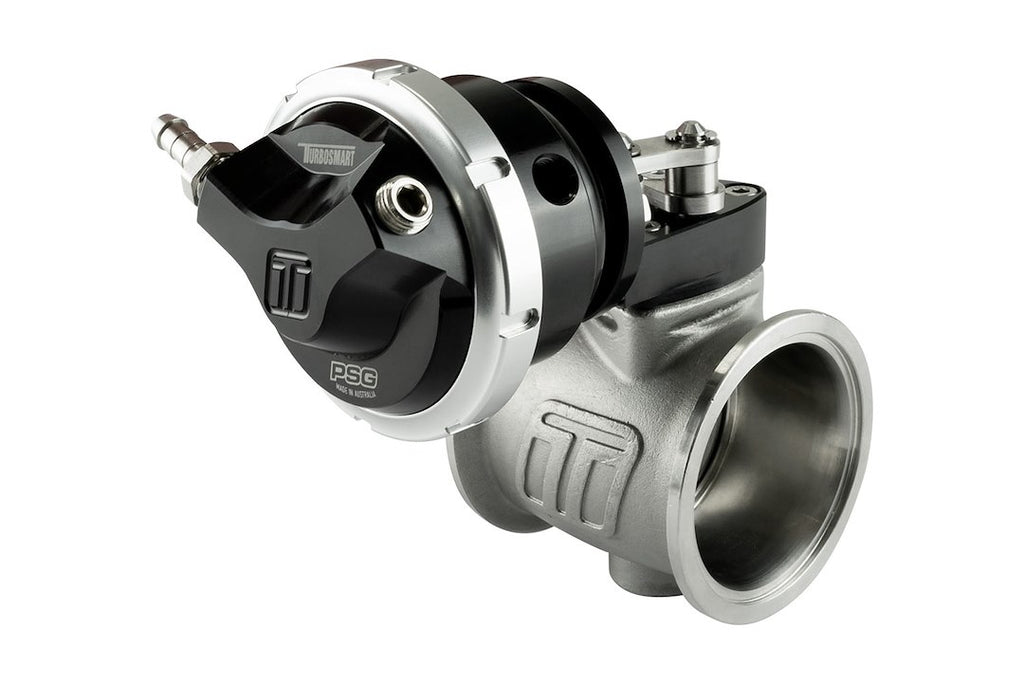

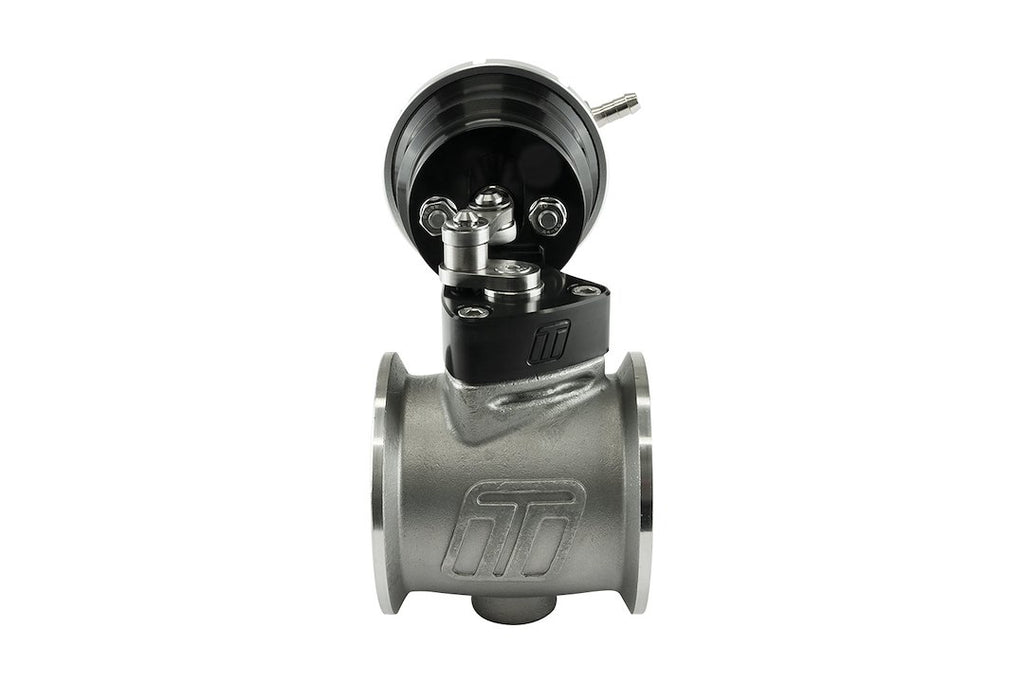

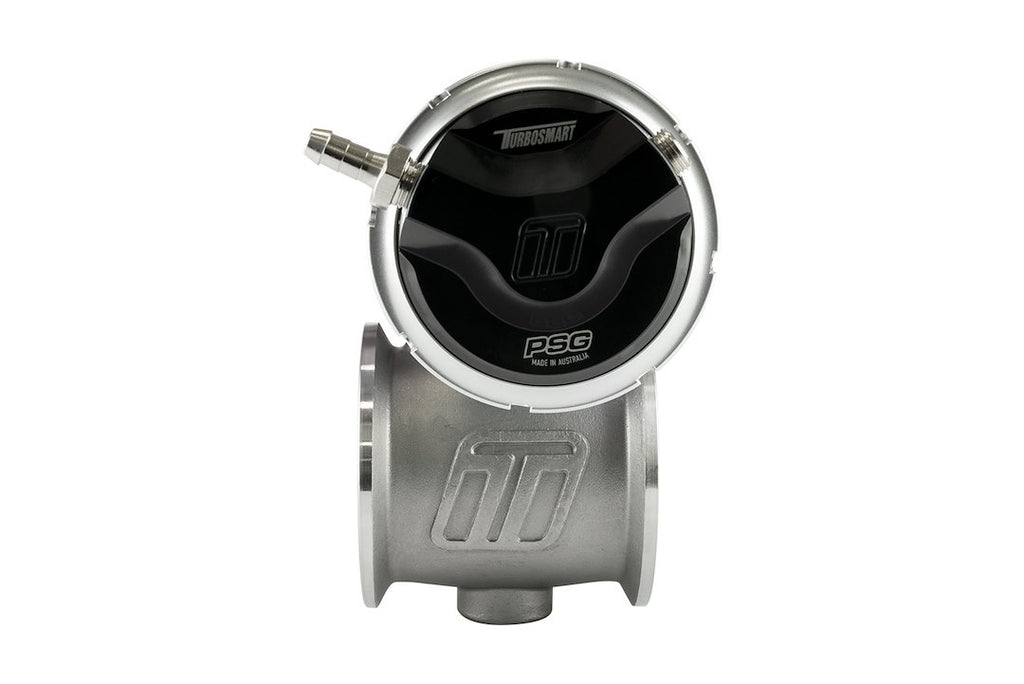

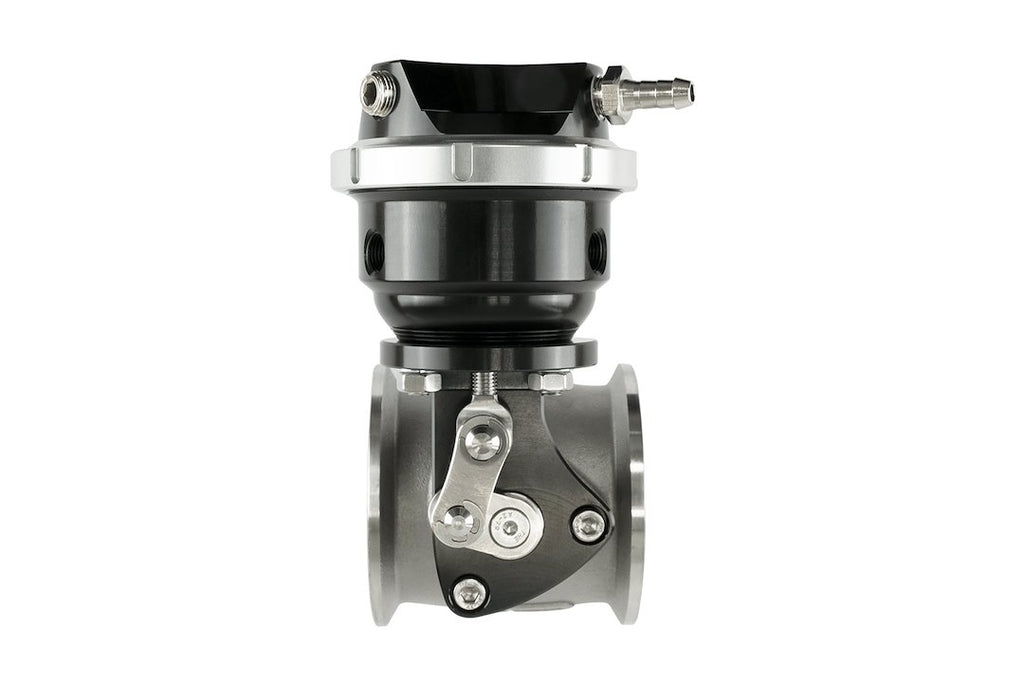

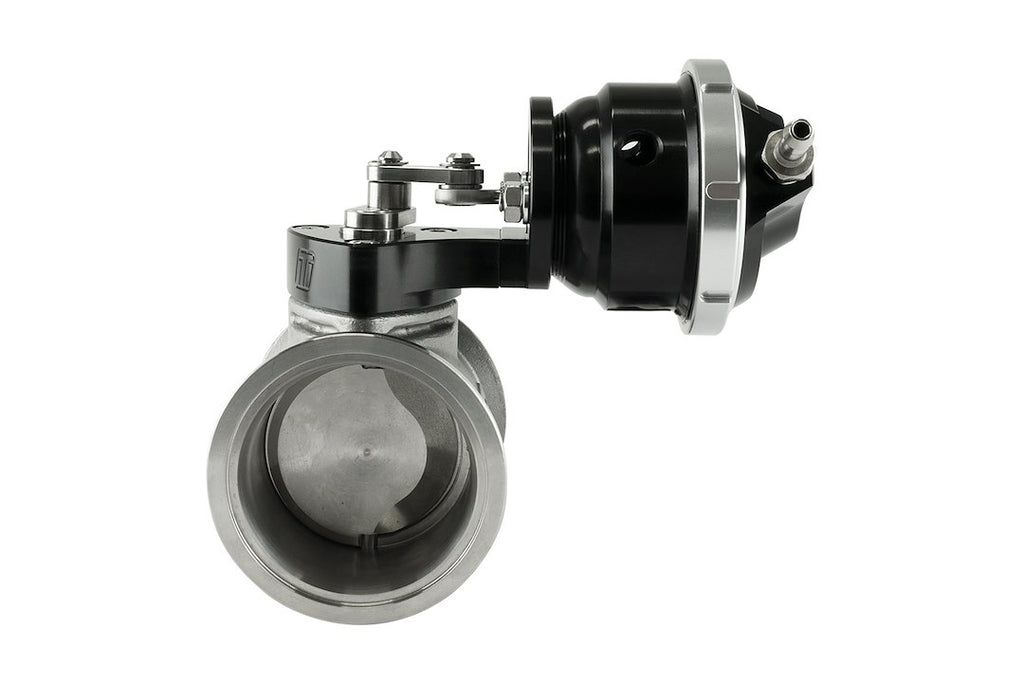

The Turbo Smart StraightGate50 is engineered as a high-performance external wastegate, designed to provide exceptional flow and control. With a diameter of 57 millimeters, this wastegate utilizes a zero-offset butterfly valve that ensures balanced operation against exhaust drive pressure, resulting in improved boost control across a wide range of conditions. The StraightGate50 features a self-balancing design that allows for a tuning window exceeding five times the base spring pressure, making it versatile for various applications.
Constructed from durable aluminum and featuring stainless steel components, the StraightGate50 is built to withstand the rigors of high-performance environments. It is equipped with a boost-based pneumatic actuator that simplifies control while maintaining the efficiency of a straight-through valve design. This design minimizes exhaust gas turbulence, enhancing overall performance compared to traditional poppet-style valves.
The wastegate is pre-fitted with 6 psi springs and offers adjustable base spring options ranging from 6 to 42 psi, accommodating both single and twin port boost control setups. The 360-degree mounting options on the V-band allow for flexible installation, while the unique locking collar ring ensures secure adjustments. The Turbo Smart StraightGate50 is a significant advancement in wastegate technology, providing unparalleled performance and reliability.
Features

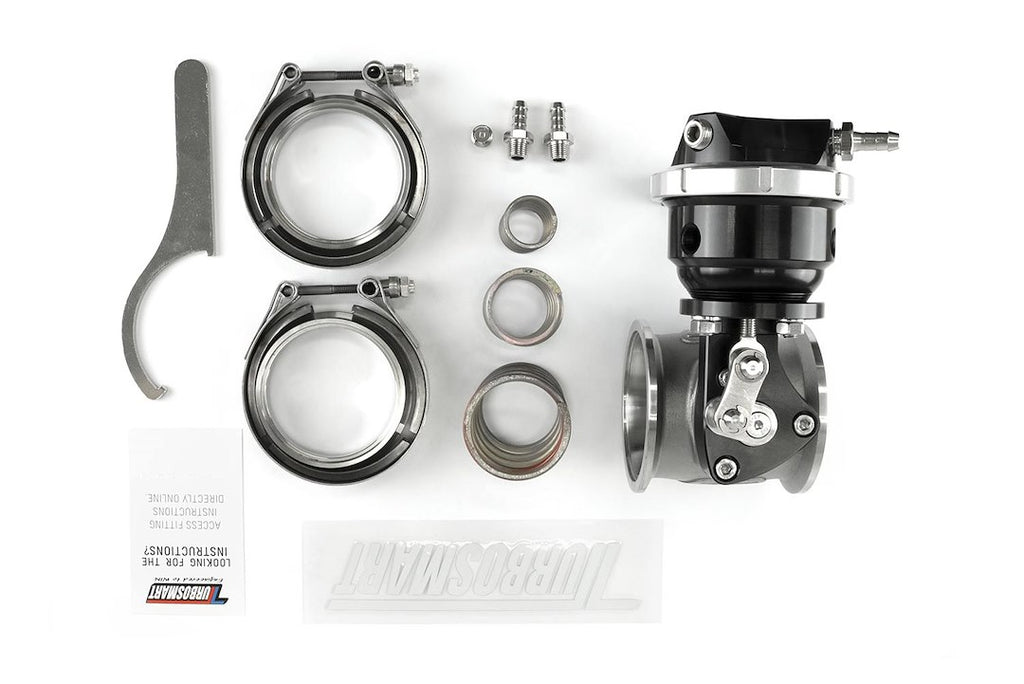

- Stainless Steel Butterfly, Main Body, V-Band Clamps And Shaft
- Turbosmart Unique Locking Collar Ring
- Base Spring Options From 6 Pounds Per Square Inch To 42 Pounds Per Square Inch
- Suitable For Single Or Twin Port Boost-Based Control
- 360 Degree Mounting Options On V-Band
- Self-Balancing Zero-Offset Butterfly Valve
- Unparalleled Tuning Window: 5+ Times Base Spring Pressure
- Clock-Able Billet Actuator And Bracket
- Collared Cap Retainment For Ease Of Adjustment
Specifications
- Manufacturer: Turbo Smart
- Manufacturer Part Number: TS-0565-1762
- Control: Pneumatic
- Type: External

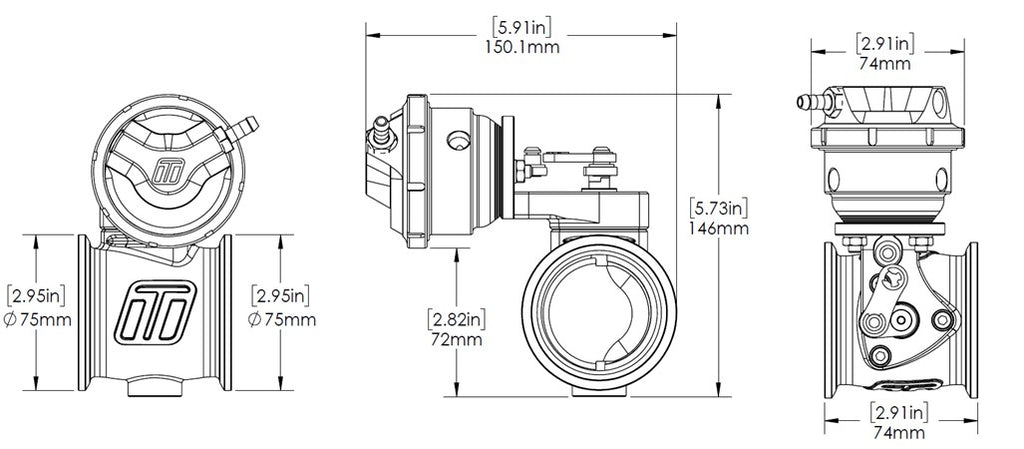

- Diameter: 2-1/4 Inch
- PSI Range: 6 Pounds Per Square Inch
- Adjustable: Yes
- Wastegate Base Material: Aluminum
